ModelDoor panel width Extruder modelMotor powerMax extrusion capacityCalibrating mould sectionDoor panel thickness HGMSM-80080080/15675KW350-380KG/H220-50MMHGMSM-1000100092/188110KW450-500KG/H320-50MMHGMSM-1200120092/188110KW450-500KG/H320-50MMdouble face coatingMachine detailed pictures
PVC WPC door panel machine

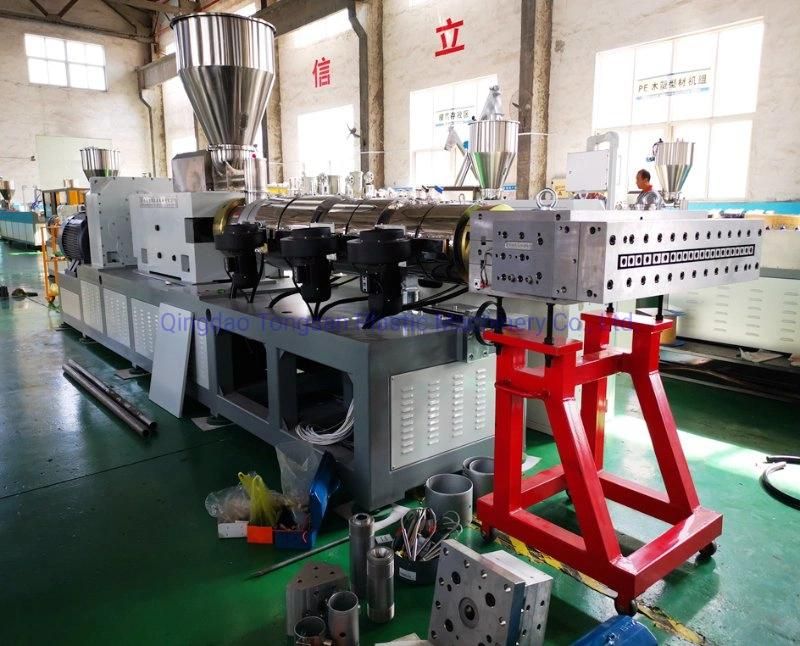

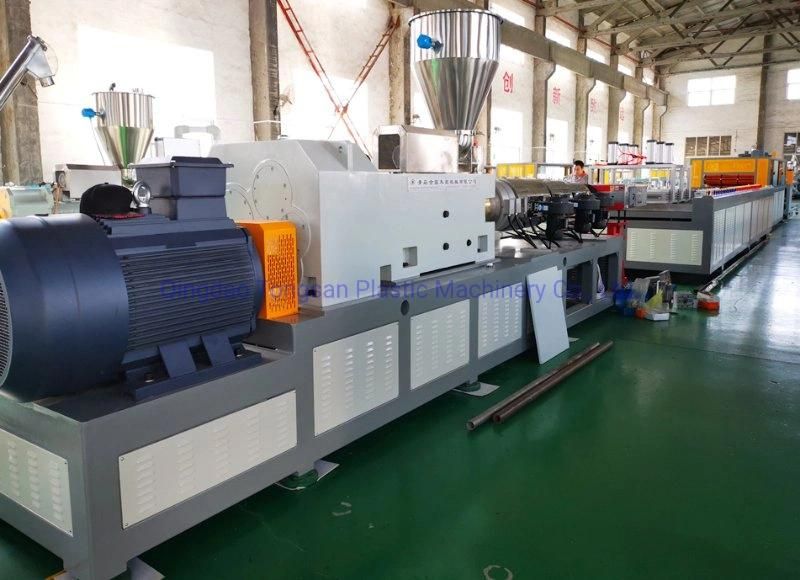

(1)Twin conical screw extruder
According to different size of product, equip different model extruder.SJSZ-80/156,SJSZ-92/188 etc.
Siemens motor
ABB,Omron.Siemens electric component.

(2)Door panel mould
You can use one extrusion line to produce different size product by changing the mould.

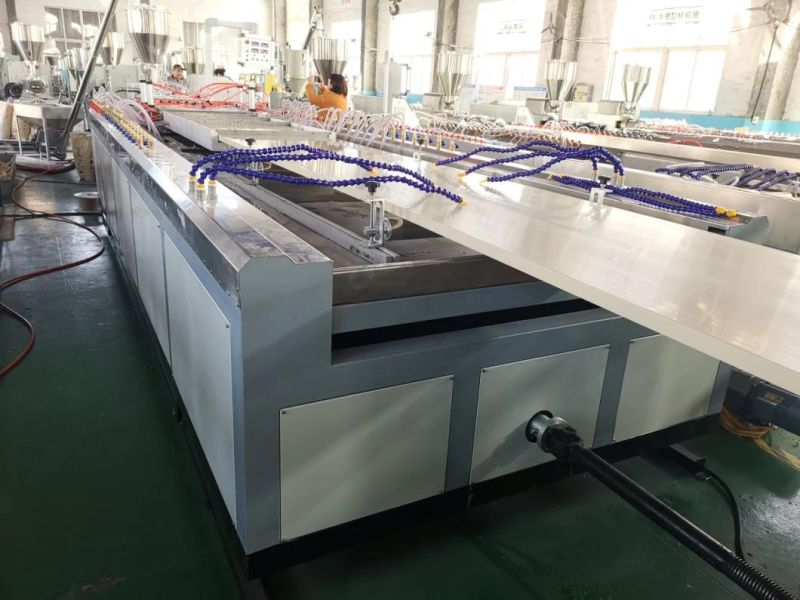

(3)Calibrating table
Equipped with vacuum pump and water pump. the part which connect with water is made of 304 stainless steel.

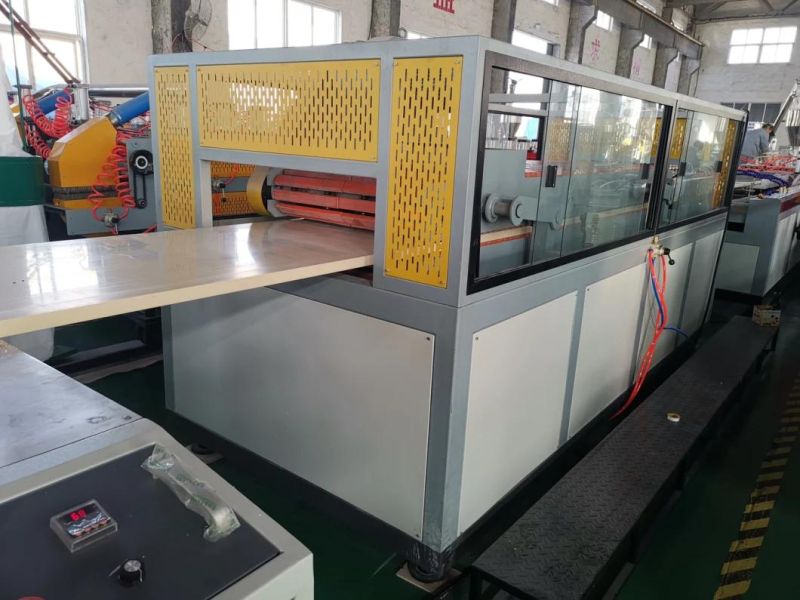

(4)Haul off machine

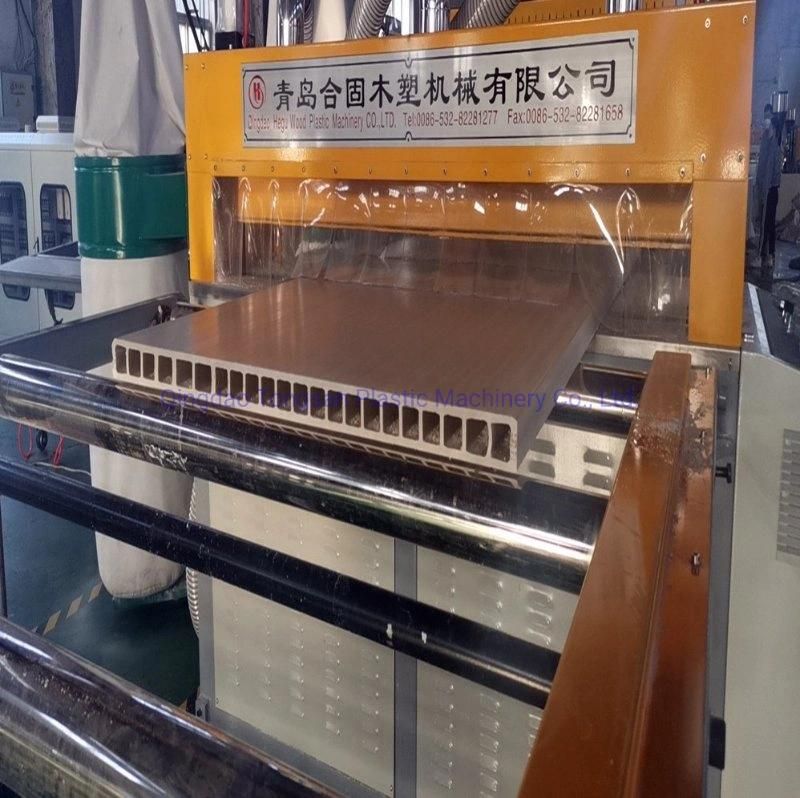

(5)Door board cutting machine

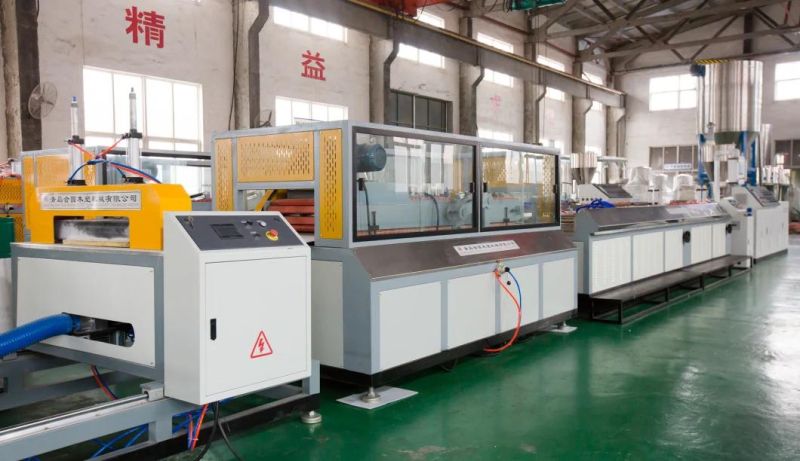

Can cut the door board in any length.PVC WPC door frame profile making machine

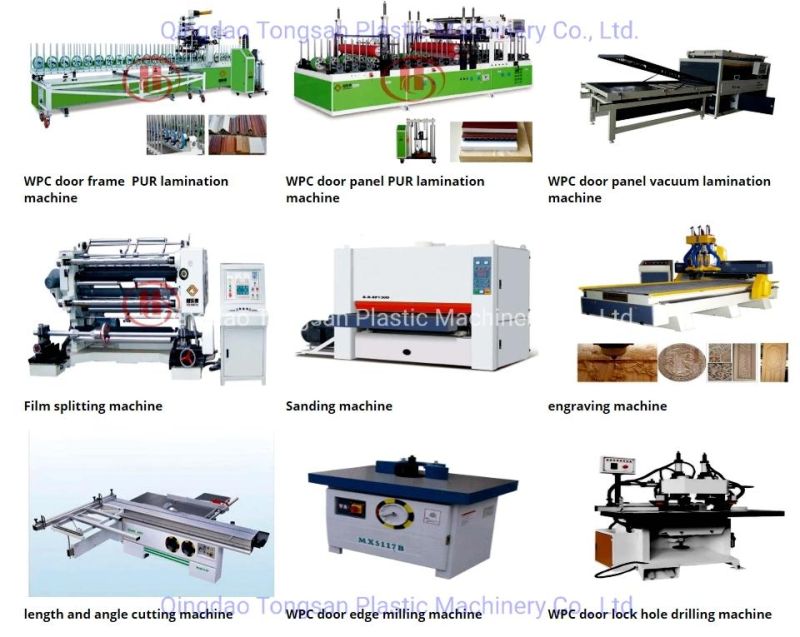

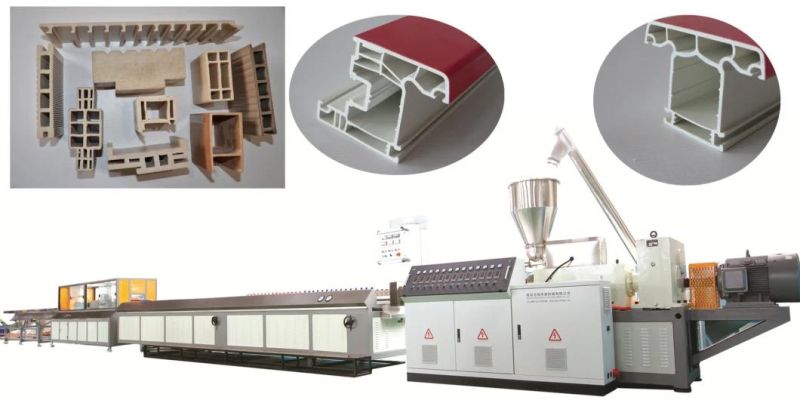

The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.Auxilary machine for making PVC WPC door panel
