SPECIFICATIONS FOR HIGH EFFICIENCY PS FOAMED MITATE WOOD EXTRUSION LINEModelGYF-PS1GYF-PS2 GYF-PS3GYF-PS4ExtruderGW65GW75GW90GW120Co-extruderGW35GW45GW45GW45Products Width3inch4inch5inch6-8inchSpeed1-3m/min1-3m/min1-3m/min1-3m/min

summary

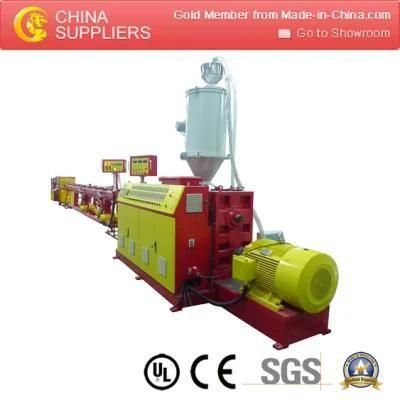

This equipment is specially designed for extruding PS profile product
Profile length:1.2-1.6m
material :PS
Center height of extruder :1050mm
Capacity:30-60kg/h

 GW65/28 single screw extrusion
the diameter of screw : 65mm, : L/D:28 : 1
Design of screw structure designed for PS, rotational speed:5-80r/min
the material of screw : (High quality alloy steel )- 38CrMoAlA, high temperature nitrogen treatment, : Nitrided layer 0.5~0.7mm, surface hardness  HV740~940
the material of barrel: (High quality alloy steel) - 38CrMoAlA, , high temperature nitrogen treatment, Nitrided layer: 0.6~0.7mm, ≥HV940 surface hardness≥HV940
barrel temperature control system
Cast aluminum heater+ Stainless steel casing+ cooling fan
cooling device : Fan uses air as media provides, provide precise temperature control
barrel heating zone ,5zone+1zone heating power 27 kw. the range of temperature 50~300ºC
cooling fan power : 5 ×0.12kw


For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.

if you are interested in this machine ,please contact me:
mob : +86 13915723896  ( or +86 13817556740 )

Jeremy He
