Basic Info.

Model NO. SJ Computerized Computerized Machine Weight 1.2 T Certification CE, ISO9001:2008 Die Type Rotary Die Winder Type Double Winder Screw L/D 28:1 Transport Package SGS Specification Film Package Trademark YUNBANG Origin China HS Code 8477309000 Production Capacity 15 Set/Months

Product Description

Product Description

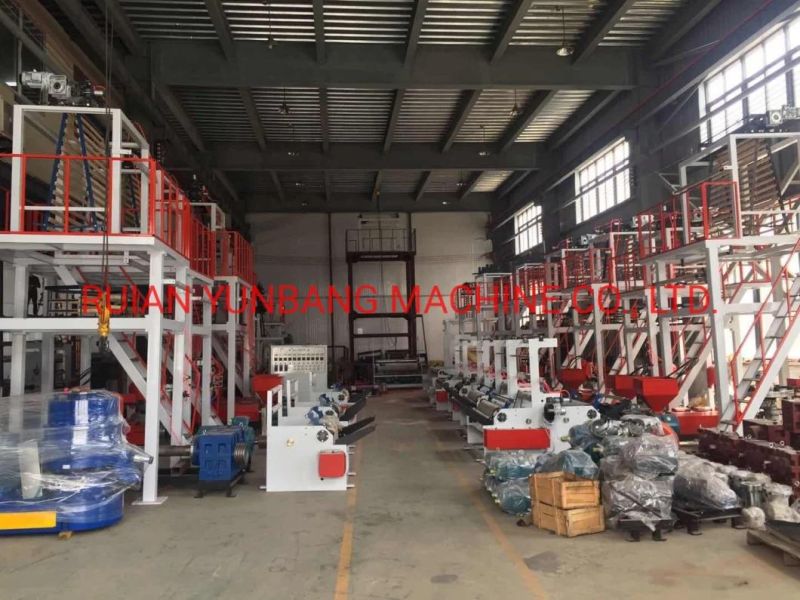

Ruian YunBang Machine Company has been the symbol of high quality and excellent service in machinery areas for many years ,researched and developed our machines on basis of advanced technology introduced from developed countries.as a professional and experienced manufacturer in china ,we're able to produce many kinds of machines like film blowing machine,bag making machine,packing machine,printing machine and recycling machine,ect.
Have any require ,you could contact with us:

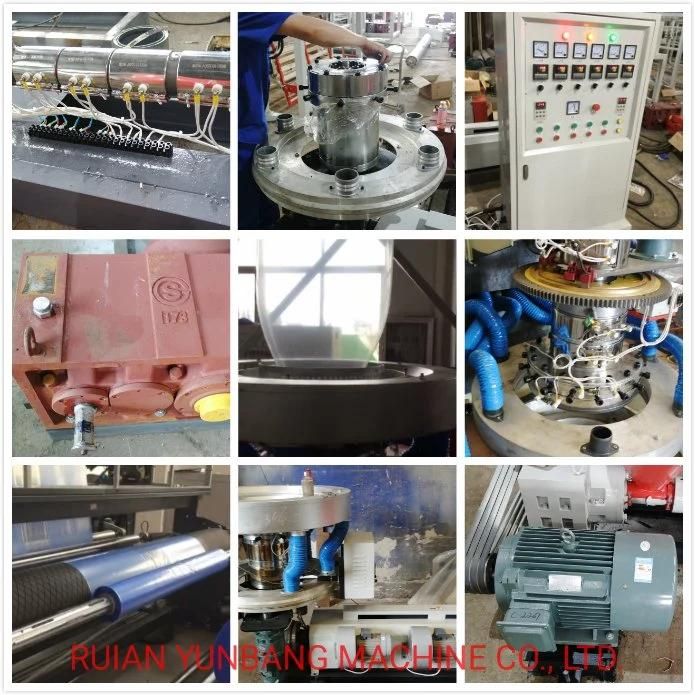

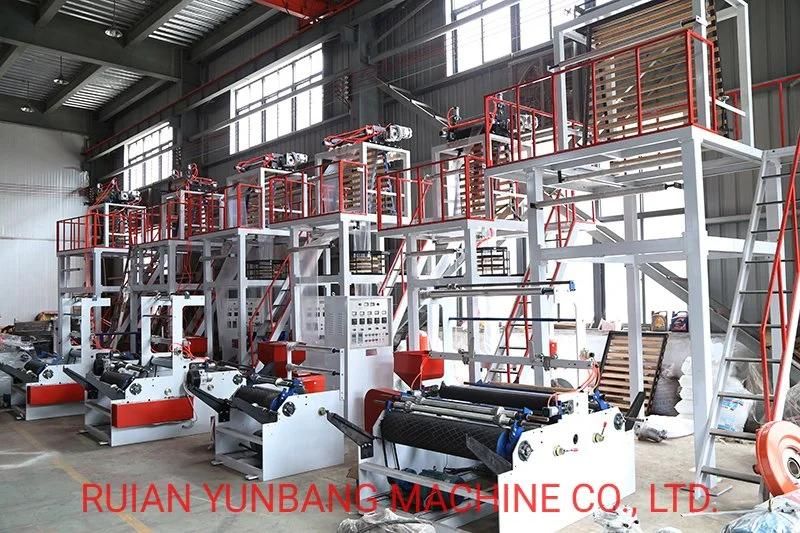

OPTIONAL DEVICE for High Speed Film Blowing Machine:
1.auto loader
2..manual mechnica screen changer
3. corona treater


Model	SJ55/900
Max.film width	500-800mm
Suitable material	HDPE,LDPE,LLDPE
Max.output	55kg/hr
Film thickness	0.015-0.08mm
Screw diameter	φ55mm  from Zhoushan
Screw material	38 CRMOALA
L/D	28:1
Main motor	15kw
Main motor with inverter	15kw from  delta
Barrel material	SACM-645/38 CRMOALA
Barrel cooling	180w×2
Barrel temperature control zone	3pcs
Die size	100-150
Die and adapator heating	stainless steel
Air ring	1
Fan	2.2kw
Traction roller width	φ140×900mm with embossing roller
Up traction motor	10-65 m/min
Machine size	4800×2000×4400mm
