• Applicable Material：Nonmetal
• Product：Wood Bamboo Ivory Bone Leather Marble Laser Engrav
• Compatible Software：Coreldraw, Autocad
• Laser Power：130W-150W
• Laser Type：Hermetic CO2 Glass Tube
• Power Supply：AC220±10% 50Hz , AC110±10% 60Hz
• Working Area：1300mm*900mm
• Worktable：Honeycomb Worktable, up&Down Worktable, Aluminium
• Options：Irregular Rotary,Double Head, Chiller(Cw3000)
• Control Configuration：DSP
• Packing：Wooden Box
• Working Table：up and Down Working Table
• Motor&Drive：Stepper
• Position：System
• Cutting Thickness：0-25mm
• Cutting Speed：1-1000mm,Min
• Transport Package：Wooden Box
• Specification：1300mm*900mm
• Trademark：Dxtech
• Origin：Shandong
• HS Code：8461500090
• Production Capacity：300 Per Month

Basic Info.

Applicable Material Nonmetal Product Wood Bamboo Ivory Bone Leather Marble Laser Engrav Compatible Software Coreldraw, Autocad Laser Power 130W-150W Laser Type Hermetic CO2 Glass Tube Power Supply AC220±10% 50Hz / AC110±10% 60Hz Working Area 1300mm*900mm Worktable Honeycomb Worktable/ up&Down Worktable/ Aluminium Options Irregular Rotary/Double Head/ Chiller(Cw3000) Control Configuration DSP Packing Wooden Box Working Table up and Down Working Table Motor&Drive Stepper Position System Cutting Thickness 0-25mm Cutting Speed 1-1000mm/Min Transport Package Wooden Box Specification 1300mm*900mm Trademark Dxtech Origin Shandong HS Code 8461500090 Production Capacity 300 Per Month

Product Description

Description:

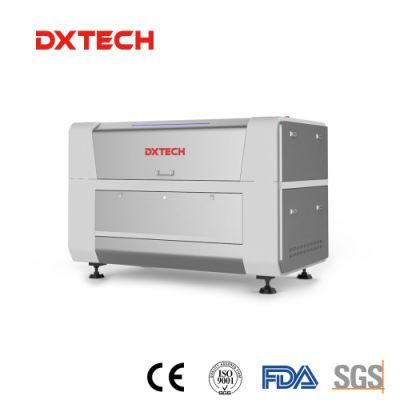

This CO2 engraving machine is suitable for users with diverse processing needs due to its flexible processing method. It can process most non-metallic materials, such as rubber, paper packaging, plastic products, label paper, leather fabrics, glass ceramics, resin plastics, bamboo products, PCB boards. And it is widely applicable in the advertising industry, handicraft production, decoration, rubber plate furniture, and other industries.

Advantages

1. Equipped with the protection cover, it not only guarantees the personal safety of the operator, and also makes the entire processing production more environmentally friendly.
2. Adopting the imported laser head, it has the advantages of high processing accuracy, high speed and low noise.
3. With a wide range of applications, it widely used in advertising industry handicraft production, decoration, rubber plate furniture and other industries.
4. With High processing accuracy and the processing accuracy can reach 0.02 mm.

Main Features
(01)HIWIN linear guide from Taiwan
(02) Water-break Protection
(03) Slope can adjust
(04)Red Light Positioning
(05)Laser Engraving software Package (English Version)
(06) User Manual (English Version)
(07) Water Pump and Water tank
(08) Air exhaust fan
(09) Air Pump

Description	Parameter
Working Area	1300*900mm
Laser-type	Sealed CO2 laser tube
laser Power	130w-150w
Working Voltage	AC220V,50Hz,3PH
Working table	Fix table (Up & down working table for your option)
Cooling mode	Water-cooling and protection system
Driver and Motors	Stepper driver
