Hydraulic DTH Drilling Rig Machine Blasting Hole Drilling Rig

Wenzhou Daba Machinery Co., Ltd.

Base Info

Description

Bore diameter(mm)

90-140

Bore depth(m)

Walk speed(km/h)

0-2.5

For rock(F)

6-20

Air pressure(Mpa)

0.7-1.6

Air consumption(m³/min)

7-15

Once promotion(mm)

3000

Skid pitch(°)

Up and down100

Swinging angle of skid(°)

Left and right 55

Boom swing angle(°)

Left and right toal 70

Boom pitch(°)

Up and down total 40

Rotation Speed(r/min)

0-120

Host Power (Kw)

Climb ability(°)

Dimension(L*W*H)(mm)

5480*1950*3150

weight(Kg)

5160

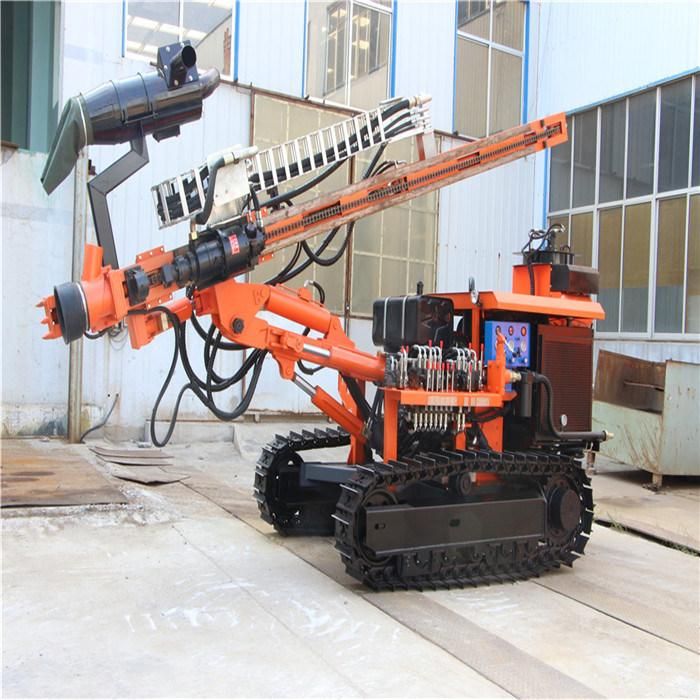

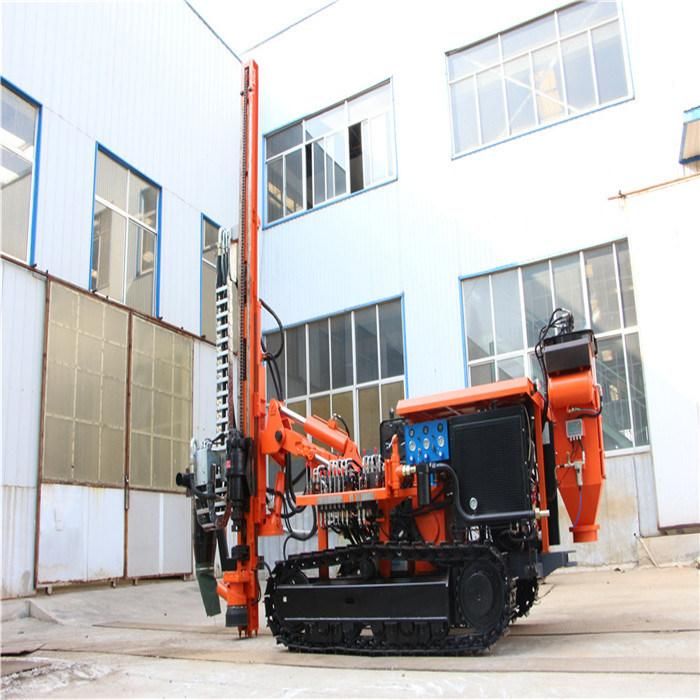

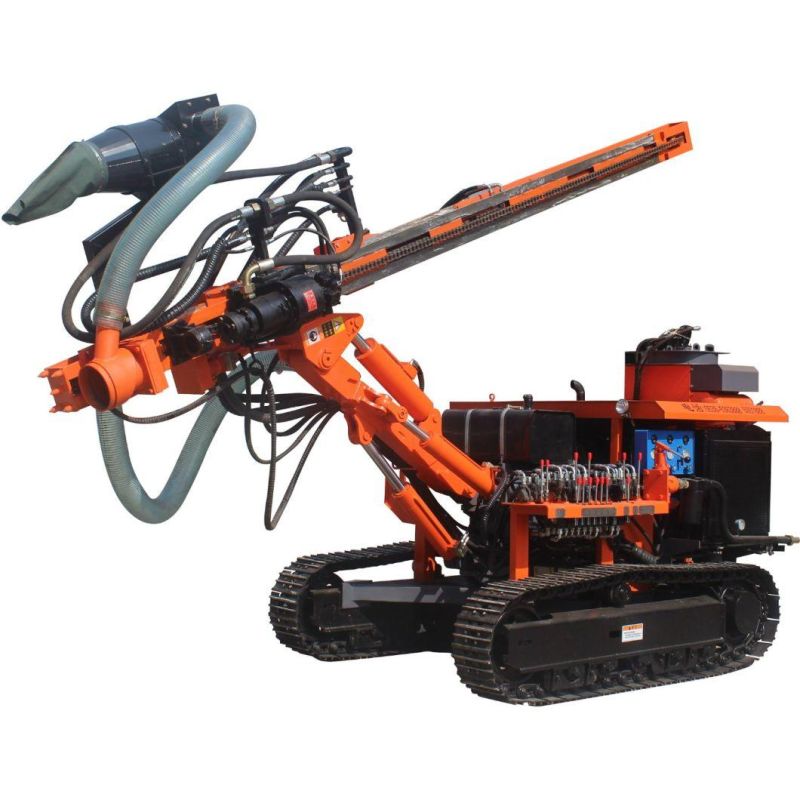

Product Photos
Hydraulic DTH Drilling Rig Machine Blasting Hole Drilling Rig

Company Profile

Hydraulic DTH Drilling Rig Machine Blasting Hole Drilling Rig Packages & Shipping
