• Model NO.：GJB Series
• Name：Stainless Steel Tomato Juice High Pressure Homogen
• Material：Sanitary Stainless Steel 304 ,316
• Capacity/Flux：500L,H-10000L,H
• Motor Brand：ABB ,Siemens
• Pressure：20MPa to 100MPa
• Certificate：Ce
• Performance：0.2 Um
• Voltage /Hz /Phase：Customized
• Stage /Piston：2,3
• Spare Parts：Available
• Warranty：15 Months
• Stage：Two Stage
• Piston：3 Piston
• Packing：Wooden Box
• After Service：Two Years .
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Stainless Steel Tomato Juice High Pressure Homogen Material Sanitary Stainless Steel 304 /316 Capacity/Flux 500L/H-10000L/H Motor Brand ABB /Siemens Pressure 20MPa to 100MPa Certificate Ce Performance 0.2 Um Voltage /Hz /Phase Customized Stage /Piston 2/3 Spare Parts Available Warranty 15 Months Stage Two Stage Piston 3 Piston Packing Wooden Box After Service Two Years . Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

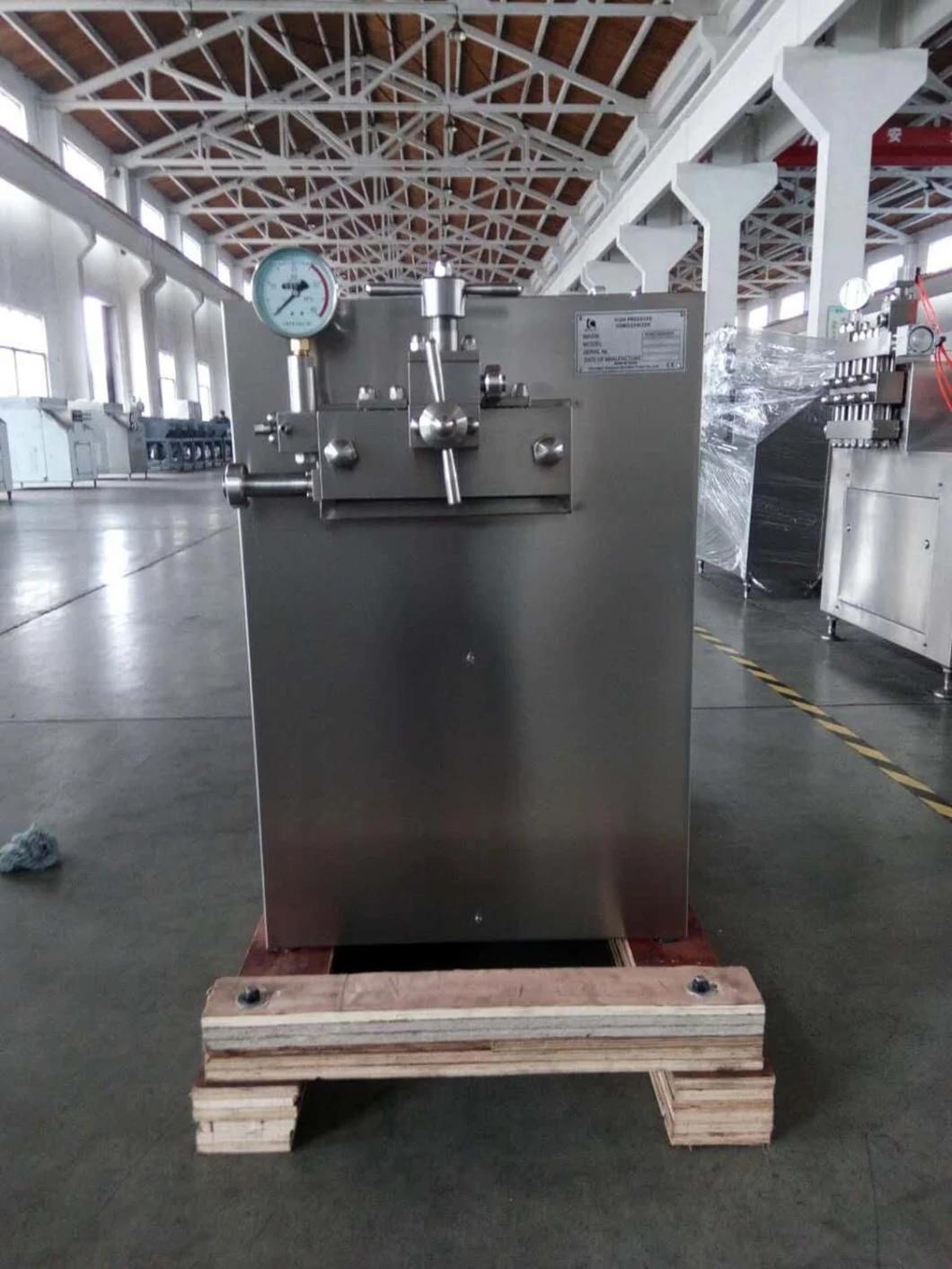

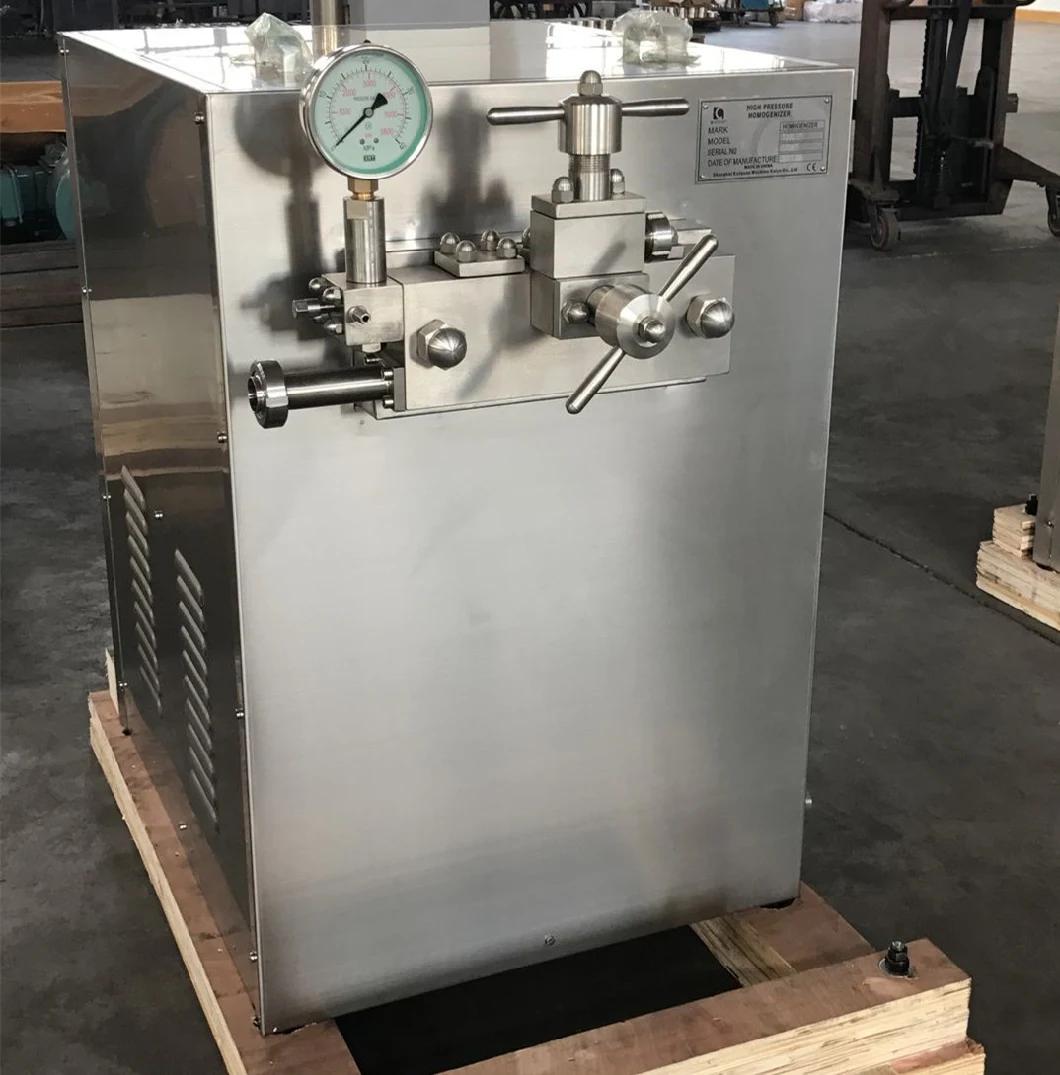

Stainless Steel Tomato Juice High Pressure Homogenizer For Ice Cream
CE Certification
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life




The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Stainless Steel Tomato Juice High Pressure Homogenizer For Ice Cream .
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.




Stainless Steel Tomato Juice High Pressure Homogenizer For Ice Cream
