Basic Info.

Model NO. HSD Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Pipe Diameter 800-2000mm Application Sewer Pipe,Storm Water Light Weight Hollow Wall Structure Voltage 380V 50Hz Transport Package Standard Export Packing Specification ISO9001-2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 840kg-1000kg

Product Description

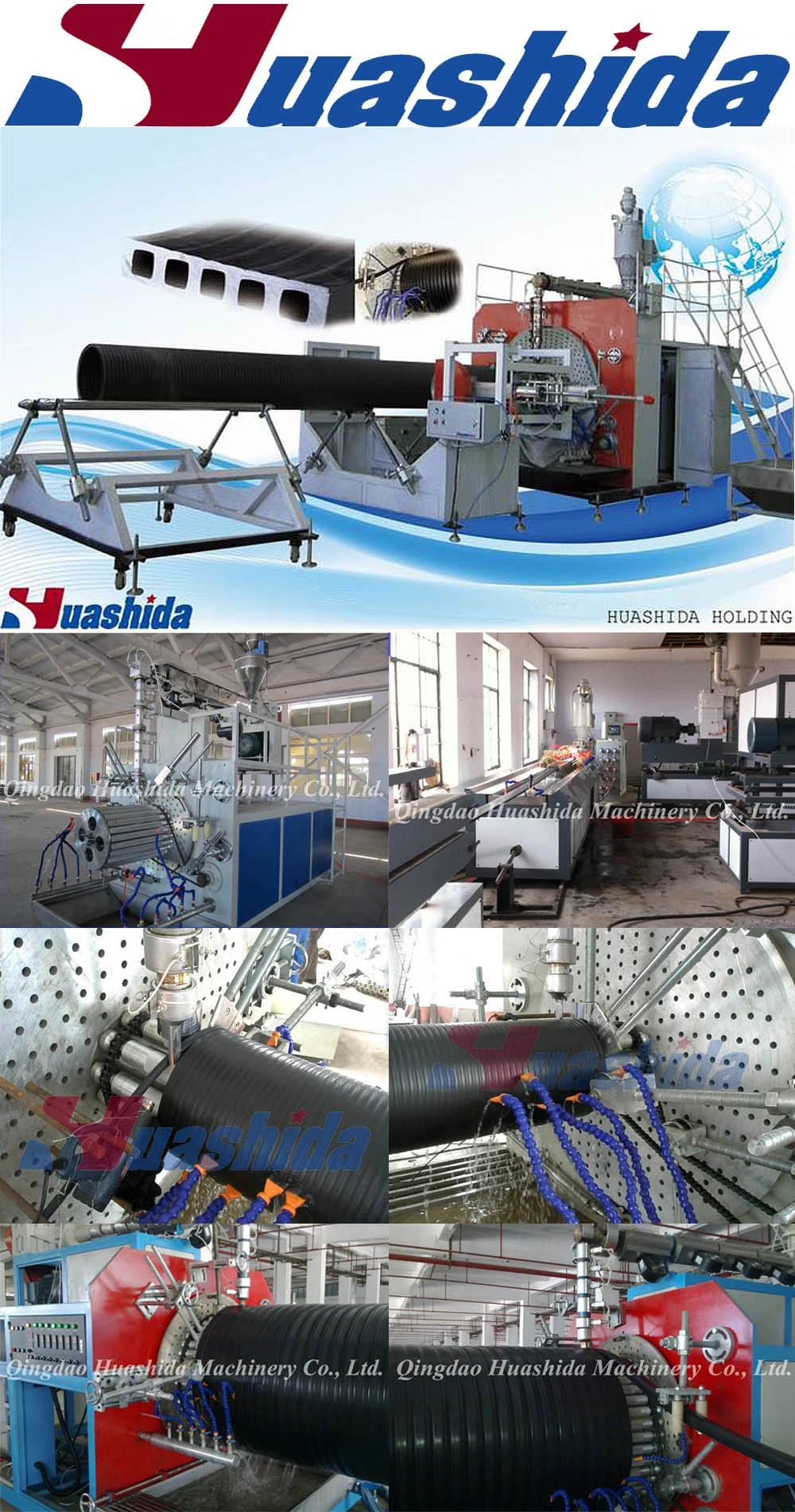

HDPE hollow wall Sewerage Pipe  Extrusion Line


SKRG2000 HDPE Hollow Wall sewer Pipe produced by this line has  high stiffness, high brunt intensity and low weight due to it's unique structure. In addition, it has many advantages as below:


1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximate 50 years.

HDPE hollow wall Sewerage Pipe has been widely used for sewerage and drainage in municipal, it will replace the cement pipe, cast iron pipe and other pipes. It's low cost of assembling, easy operation, easy connection and economical construction can make it wide  market potential.


Features of HDPE Hollow Wall  sewerage Pipe:

1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank.

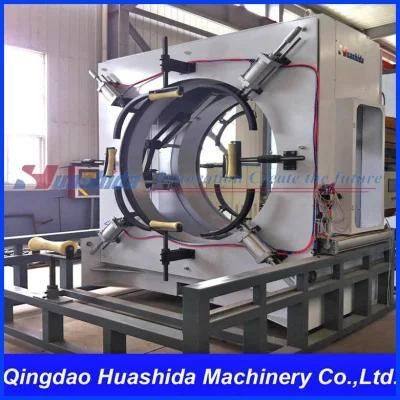

2ND single screww extruder for melting glue material, spiral forming unit, cutting and stack unit.

PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruders and winding units in tandem with two touch screens


Model	Diameter(mm)	Style	Total Power	Extrusion Speed(m)	Capacity(kg/h)	Dimension (m)
SKRG2000	800-2000	SJ-100X33 SJ-65X33	400Kw	0.5-5	600 240	32x16x6.0


For more informaiton , you can contact with us.
