Basic Info.

Model NO. GF160 Condition New Pipe Diameter 16mm-800mm Screw Barrel Alloy/Bi Material Motor Siemens or Top Local Brand Drive by ABB or Other Top Brand Output Upto 800kg/Hr Delivery Time 40 Days Guarantee Period 1 Year Electrical Components Siemens, ABB, Omron, Schneider, etc. Machine Control by Siemens PLC Screen Touch Speed Control by Inverter Transport Package Plastic Film and Wooden Box Specification Pipe size upto 800mm Trademark CONBOPLAS Origin Zhangjiagang HS Code 84778000 Production Capacity 30 Sets/Month

Product Description

Features (eg. PVC pipe):

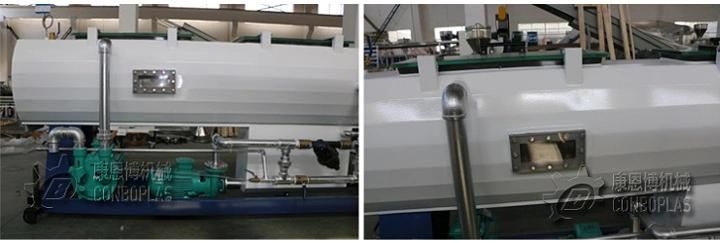

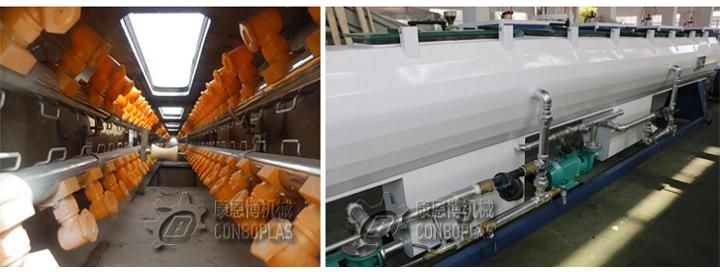

1. Vacuum sizing tank and waterway system are optically designed and made of stainless steel.
2. Waterway system and vacuum system are stable and adjusted.
3. Can be adjusted horizontally and vertically.

Models (eg. PVC pipe):

Model	GF63	GF160	GF250	GF400	GF630	GF800
Diameter	16mm-63mm	50mm-160mm	50mm-250mm	200mm-400mm	315mm-630mm	450mm-800mm
Tank length	5800mm	5800mm	5800mm	5800mm	5800mm	5800mm
Water pump	1X3kw	1X4kw	1X5.5kw	2X5.5kw	2X5.5kw	2X7.5kw
Vacuum pump	1X3kw	1X3kw	1X4kw	2X4kw	2X4kw	2X5.5kw

Remarks: all the information above is only for reference, please gather the exact data by contacting us.



ELECTRICAL COMPONENTS QUALITY:

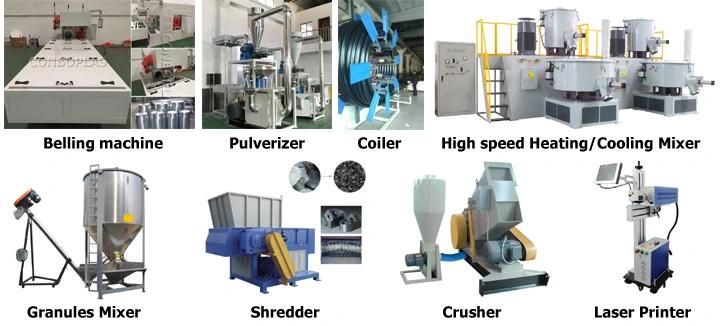

AUXILIARY MACHINES:
