Basic Info.

Feeding Size 30mm-500mesh Diameter 400-2000mm Frequency 1500rpm Transport Package Wooden Package Specification ZDS Trademark CHENXING Origin Jiangsu of China HS Code 8477800000 Production Capacity 1000PCS/Year

Product Description

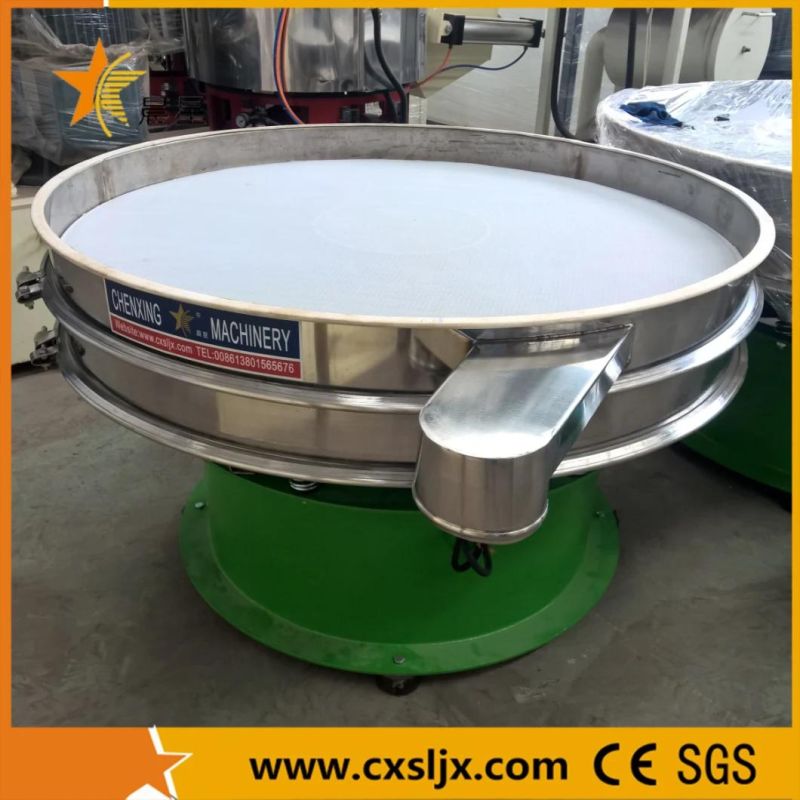

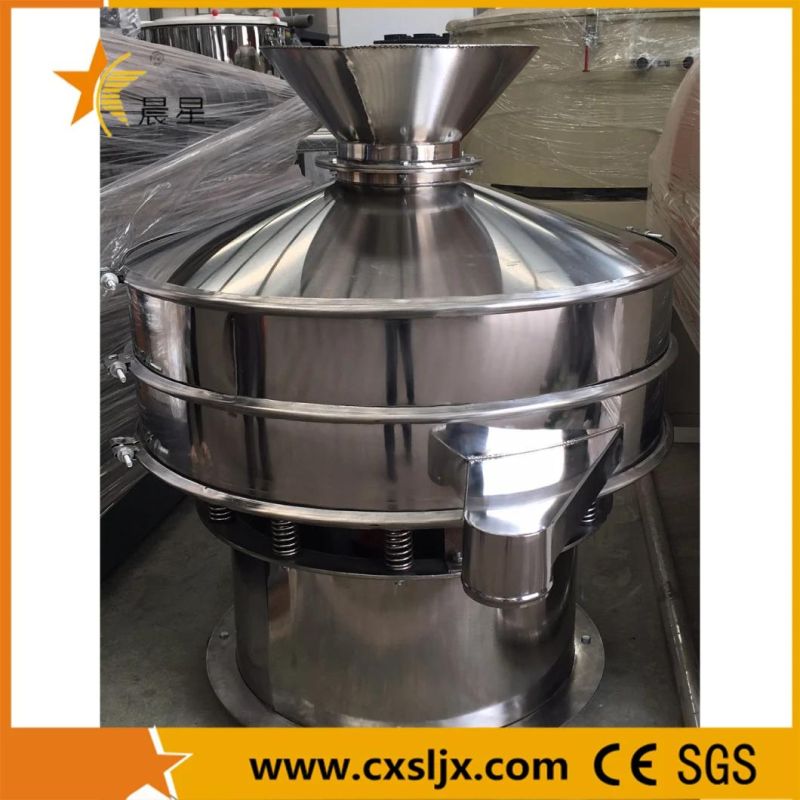

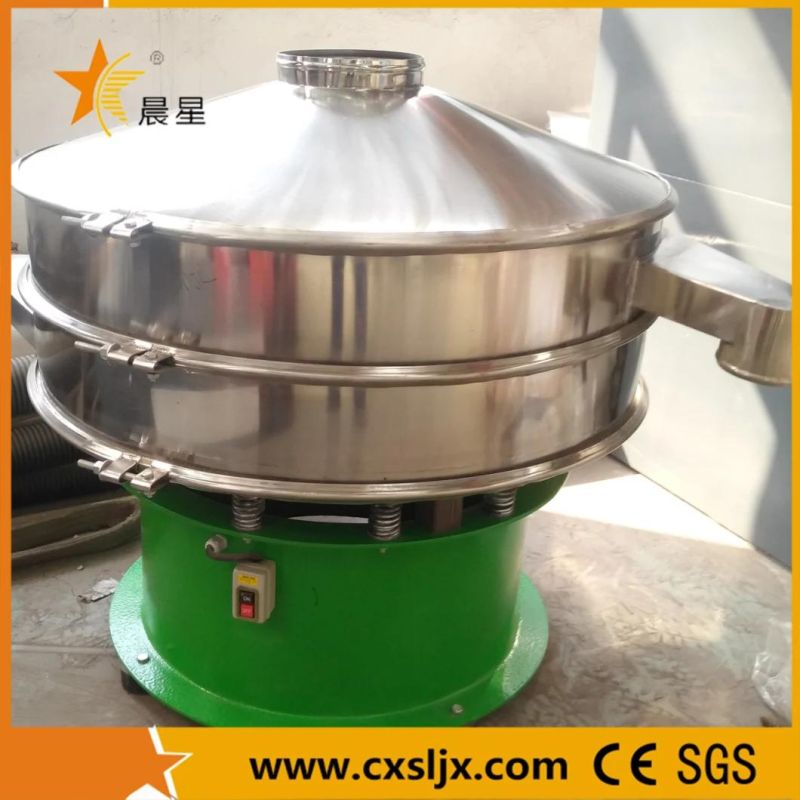

Vibrating machine suitable for grading granulated stuffs and screening out powder and liquid.
Typical Application of Vibrating Screen
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water, food waste water and waste water processing.
8. Others: carbon black, activated carbon and pearl.
Main technical parameters:

Model	Power(kw)	Surface  of  sieve  size  (mm)	Volume(mm)	Nnmbers  of  lagr
ZDS600-1	0.55	550	600× 670× 620	1
ZDS600-2	0.55	550	600× 670× 720	2
ZDS600-3	0.55	550	600× 670× 820	3
ZDS800-1	0.75	750	900× 900× 780	1
ZDS800-2	0.75	750	900× 900× 930	2
ZDS800-3	0.75	750	920× 920× 1080	3
ZDS1000-1	1.5	950	1150× 1150× 880	1
ZDS1000-2	1.5	950	1180× 1180× 1030	2
ZDS1000-3	1.5	950	1180× 1180× 1170	3
