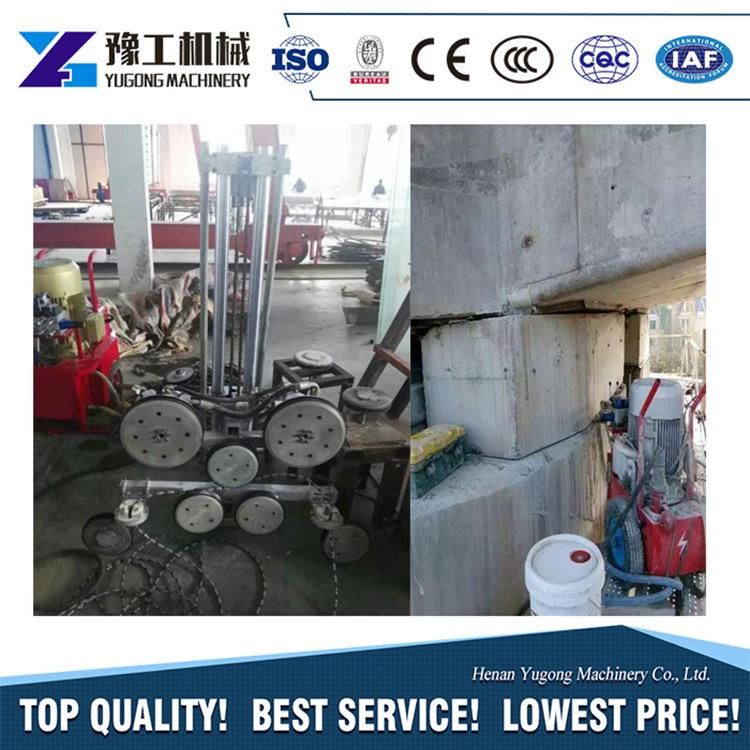

Hydraulic Multi Diamond Wire Saw for Stone Cutting
Wuxi Lancy Beauty Technology Co., Ltd.- Application：Machinery & Hardware, Construction, Mineral Indus
- Type：Hydraulic Cutting Machine
- Automation：Semi-Automatic
- Name：Hydraulic Diamond Wire Saw
- Keyword：Diamond Wire Saw
- Power Source：Hydraulic
Base Info
- Model NO.：YG Wire Saw
- Dimension：1300*2500*300mm
- Power：25kw
- Usage：Jadestone, Cement Brick, Concrete Curb, Granite
- Cutting Ability：High Speed
- Color：Red
- Source Voltage：380V
- Transport Package：Wooden Case
- Specification：210kg
- Trademark：YUGONG
- Origin：Henan( China)
- HS Code：8461500090
- Production Capacity：20sets,Week
Description
Hydraulic Pump
YG-25
Motor Power
25kw
Voltage
220V/380V, 50Hz
Motor Type
HM-80, 2 Cylinders
Rotation
1300r/min
Working Pressure
15-20Mpa
Weight
170kg
Size
720*650*1050mm
Frame & Wheels
Aluminum
Wheels
10
Weight
75kg
Size
90*90*1700mm
Diamond Wire Saw
Diamond Wire
Specification
φ11.5mm 40beads/m
Cutting speed
3~5m2/h
Wire life
2~3m2/m

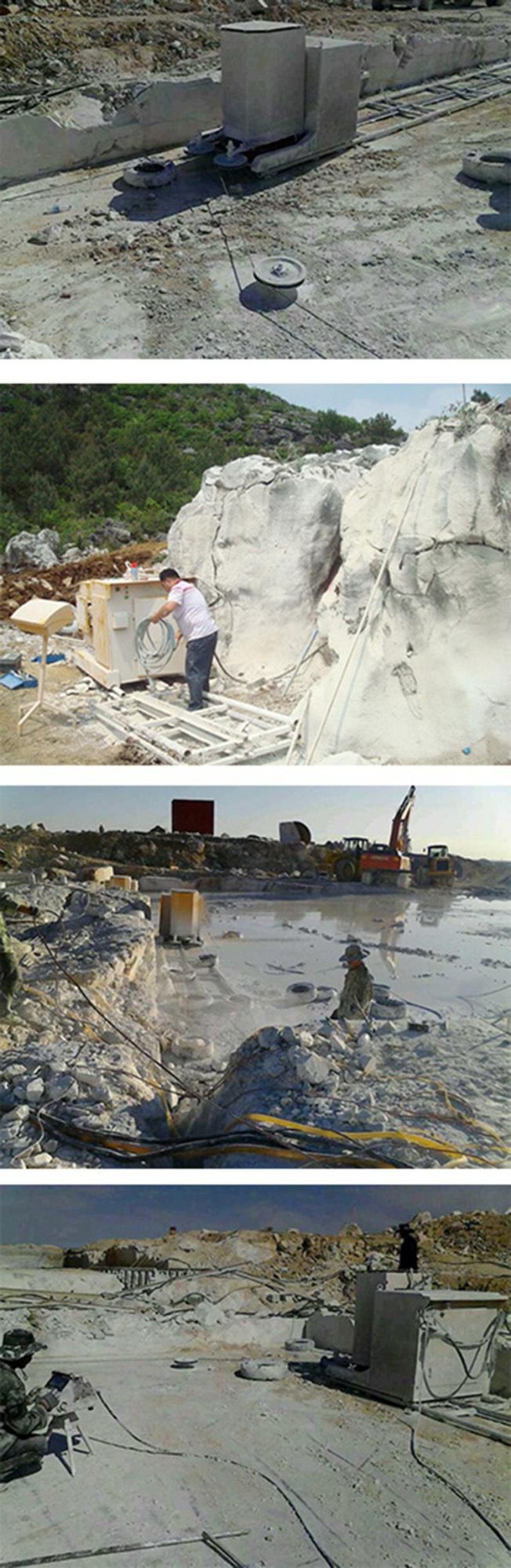

Working Site
Packaging& Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
