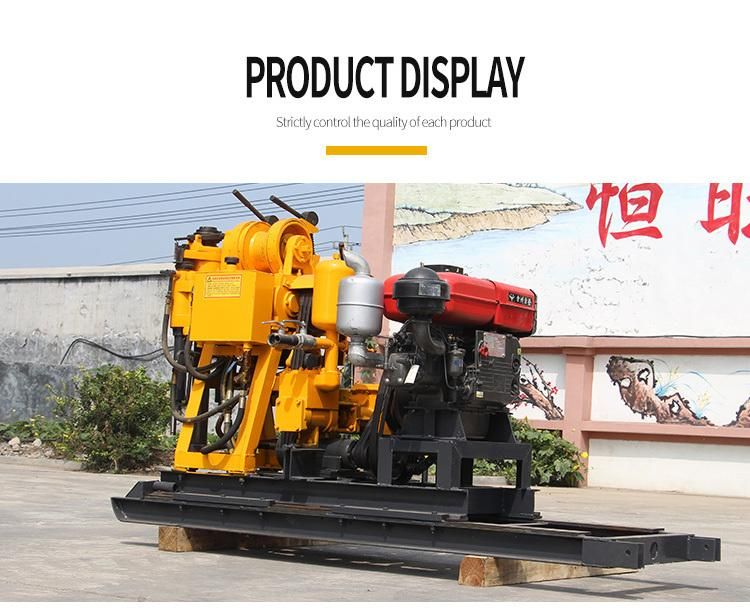

Machine SpecificationModel
YY type configuration moving slipwayHW-160/160YYHW-190/190YYHW-230/230YYDrilling Depth(m)160190230Open Hole Dia. (mm) Soil/Rock500 / 220500 / 220500 / 273End Hole Dia. (mm)757575Drill Rod Dia. (mm)42 / 5042 / 5042 / 50 / 60Drill Angle(°)90-7590-7590-75Matching Engine Power(KW)13.213.215Weight without Engine(Kg)600/740620/750880/970Machine Dimension L*W*H(m)2.4*0.8*1.32.4*0.8*1.42.7*0.9*1.5SpindleSpeed(r/min)142/285/570130/300/480/730/830/104564/128/287/557Stroke(mm)450450450WinchSingle Rope Lift Force(Kg)200021002500Single Rope Lift Speed(m/s)0.41-1.640.35-2.230.12-0.95Rope Dia. (mm)9.39.312.5Rope Capacity(m)272735Drill MastRated Load(Ton)181818Effective Height(m)6.56.56.5Mud PumpFlow(L/min)9595145Max. Pressure(MPa)1.21.22Back and Forth Times/min939393 Inlet Hose Dia. (mm)515151Outlet Hose Dia. (mm)323232
