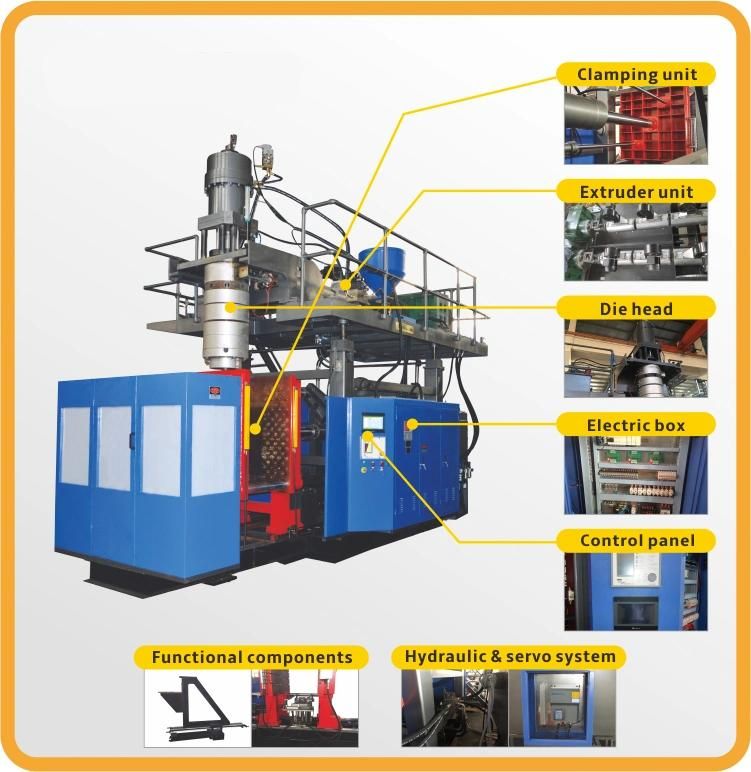

Puxin Big Size Drums Tanks Containers Barrels Blowing Moulding Machine (PXB100AS)
Shandong Fangdi Trade Co., Ltd.Base Info
Description
Basic Info.
Model NO. PXB100AS Bottom Blowing Available Material PP, PE, ABS... Total Weight 18t Output(Dry Cycle) 400 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Special Barrel, Drum, Sprayer, Tool Case Multi-Layer Available Color Double Color Screw Diameter 80mm*2 Transport Package Film Packing with Wooden Bottom Specification Max capacity 90L Trademark Puxin Origin Suzhou HS Code 847730100Product Description
PXB100AS60L-90L Double Color Die Head Series
Special Feature:
- High Speed Fixed Station For HDPE, PE, PP, PS Material Product
- Patented technology of Double Color Accumulator Head. Special usage for toolbox, Toy, Sports Equipment, Road Barrier.
- Quick Action Speed, Stable Running
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters
| Machine model | PXB100AS | |
| Material | PE,PP,ABS... | |
| Max container capacity | L | 90 |
| Output(dry cycle) | pc/hr | 400 |
| Machine dimension(L×W×H) | M | 6.2×2.8×4.5 |
| Machine weight | T | 18 |
| Clamping Unit | ||
| Clamping force | kn | 450 |
| Mold platen size(W×H) | mm | 1080×1000 |
| Platen opening stroke | mm | 500-1200 |
| Platen moving stroke | mm | 700 |
| Max mold size(W×H) | mm | 800×1100 |
| Mold thickness | mm | 510-650 |
| Power | ||
| Servo oil pump motor power | KW | 18.5 |
| Servo pump displacement | L/MIN | 120 |
| Blow pressure | MPA | 0.8 |
| Air consumption | M3/MIN | 1.2 |
| Cooling water pressure | mpa | 0.3 |
| Water consumption | L/min | 100 |
| Average energy consumption | KW | 43-50 |
| Extruder unit | ||
| Screw diameter(outer layer/inner layer) | mm | 80×2 |
| Screw L/D ratio | L/D | 24 |
| HDPE Melting capacit for HDPE | kg/hr | 160-200 |
| Number of heating zone | zone | 5×2 |
| Screw heating power | kw | 25.1×2 |
| Screw fan power | KW | 0.6 |
| Extruder motor power | kw | 30×2 |
| Die head | ||
| Number of heating zone for single die head | zone | 5 |
| Heating power for single die head | kw | 26 |
| Max die-pin diameter | mm | 450 |
| Accumulator capacity | L | 12 |
| (HDPE) Accumulator weight(HDPE) | KG | 9 |

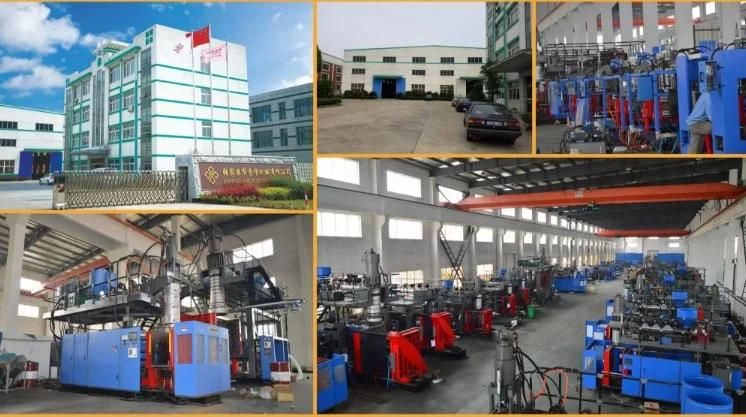

OUR FACTORY:
