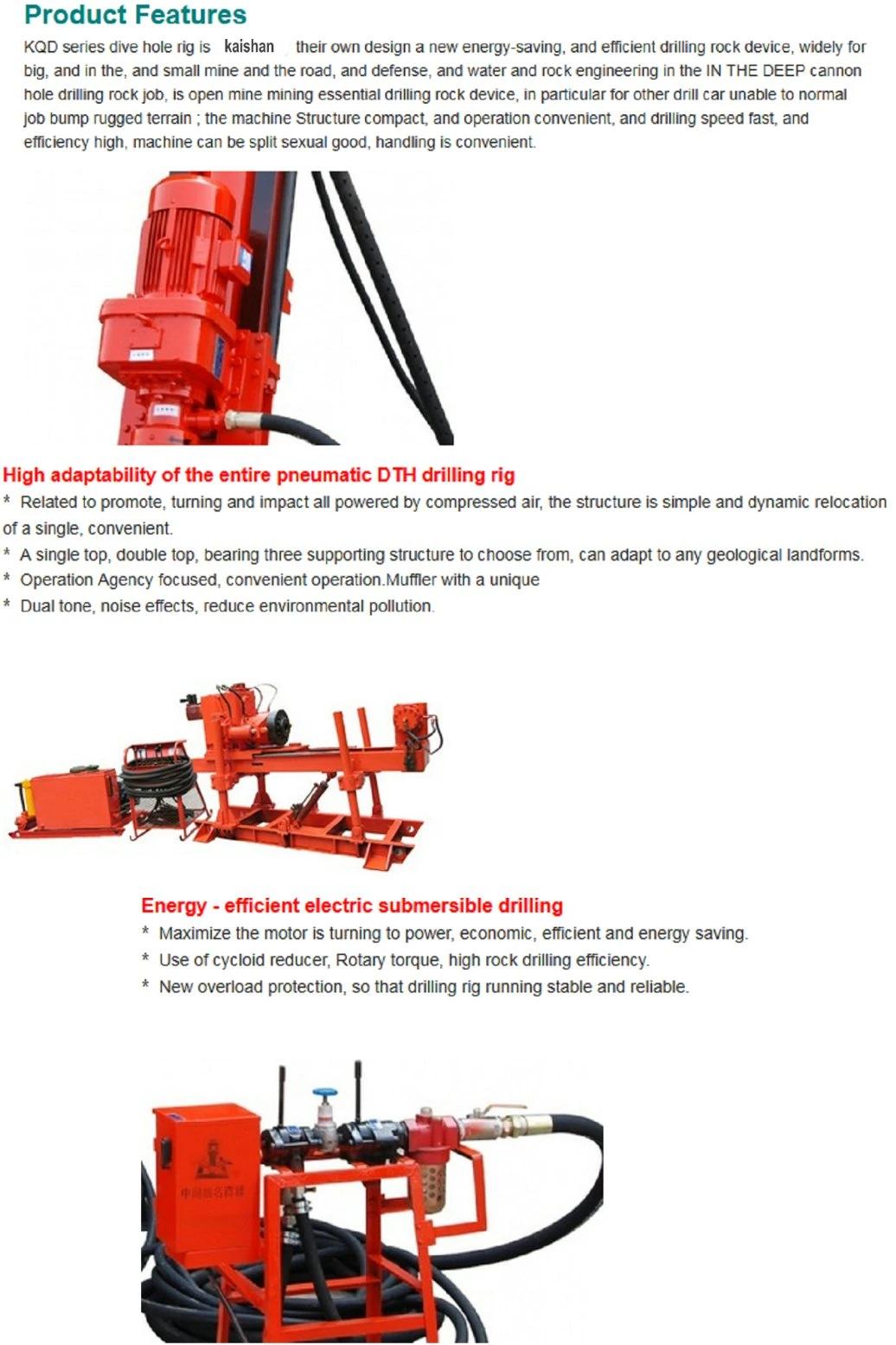

ModelKQD165Drilling Hole Dia.90-150MMDrilling Depth>50MRotation Speed0-60rpmWorking Pressure0.7-1.4MpaDrill Rod Dia.*Length76*1500mmAir Consumption>12m3/minMax. Push Power12000NDriven Power11kw motorRecommended Air CompressorLGY-16/13 LGY-18/7

KQ Series DTH Rock Drill Rig SpecificationModelKQD70KQD100KQD120KQD70KQY90KSZ100Drilling Hole Dia.60-80MM80-100MM80-120MM60-80MM80-100MM80-100MMDrilling Depth>15M>20M>20M>15M>20M>20MRotation Speed0-125rpm0-62/0-84rpm0-62/0-78rpm0-125rpm0-75rpm0-93rpmWorking Pressure0.5-0.7Mpa0.5-0.7Mpa0.5-0.7/0.7-1.0Mpa0.5-0.7Mpa0.5-0.7Mpa0.5-0.7MpaDrill Rod Dia.*Length40*1000mm60*1000mm60*1000mm40*1000mm60*1000mm60*1000mmAir Consumption>3.5m3/min>7m3/min>9m3/min>3.5m3/min>7m3/min>12m3/minMax. Push Power4000N9600N9600N4000N15000N9600NDriven Power3kw motor4kw motor5.5kw motor3kw motor12-13kw motor/Recommended Air CompressorLGJY-4.5/6LGY-7.5/8LGY-10/8LGJY-4.5/6LGCY-7.5/7LGCY-7.5/7       KQ Series DTH Rock Drill Rig Specification ModelKQD155BKQD150BKQD145BKQD165KQD165Z Drilling Hole Dia.90-130MM90-130MM90-130MM90-150MM90-160MM Drilling Depth>50M>50M>50M>50M80M Rotation Speed0-60rpm0-60rpm0-60rpm0-60rpm0-60rpm Working Pressure0.7-1.4Mpa0.7-1.4Mpa0.7-1.4Mpa0.7-1.4Mpa0.7-1.4Mpa Drill Rod Dia.*Length76*1500mm76*1500mm76*1000mm76*1500mm76*1500mm 89*1500mm Air Consumption>12m3/min>12m3/min>12m3/min>12m3/min13.2-16.8m3/min Max. Push Power12000N12000N12000N12000N16000N Driven Power7.5kw motor7.5kw motor7.5kw motor11kw motor8.8kw motor Recommended Air CompressorLGY-13/8LGY-13/8LGY-13/8LGY-16/13 LGY-18/7LGY-16/13                LGY-18/7




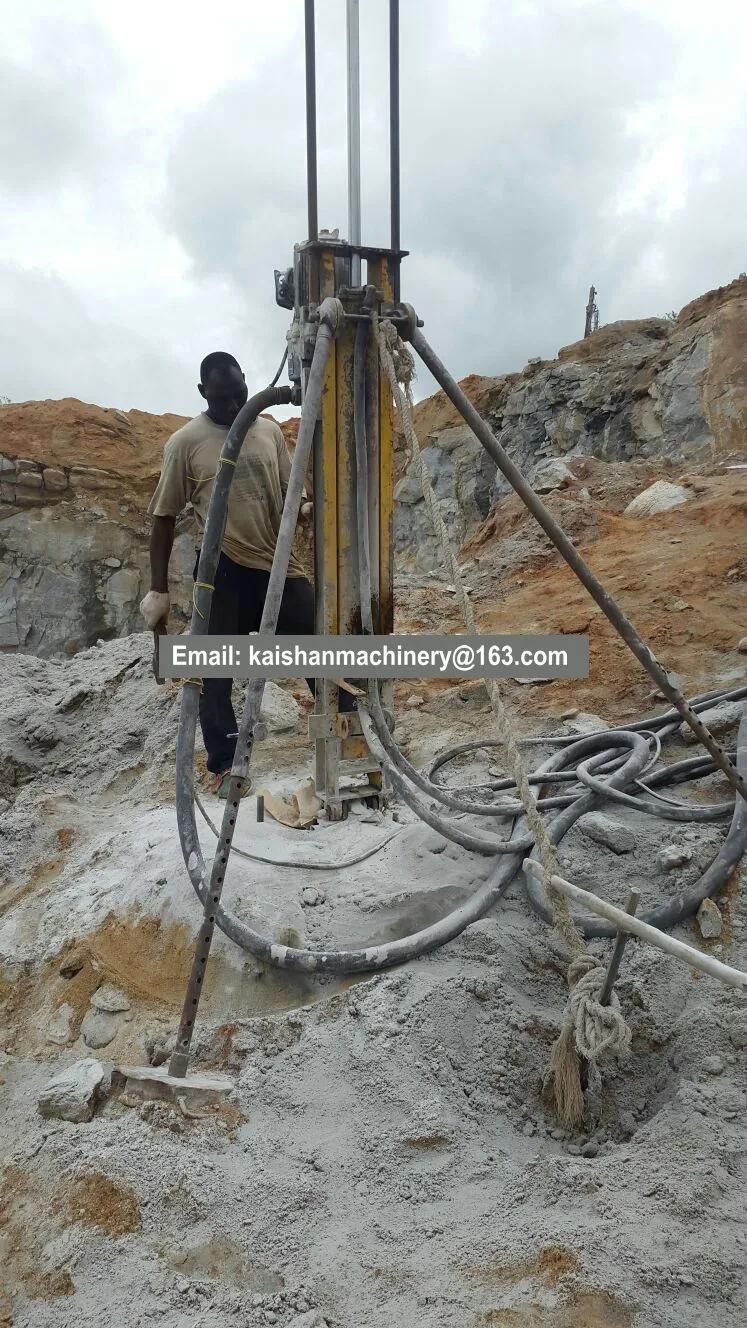

Main Elements of DTH drill rig show:


Matched Hammer's specification for DTH Drill.
 Part nameQCZ100Drill hole dia.100-130mmSuitable drill rod76*1500MMCapacity10m3/minWorking pressure7-14barOutside dia.100mmLength855mmWeight22kg

Matching Drill rod :  Ø 76*1500mm

Matching Drill Bit:    Low wind pressure drill bit (80-100mm)

Matched Portable  Screw Air COmpressor

ModelLGCY-16/13 or LGY-18/17Capacity (m³/min)16-18m3/minWorking Pressure (Mpa)1.3-1.7 MpaWeight (kg) Dimension (mm)

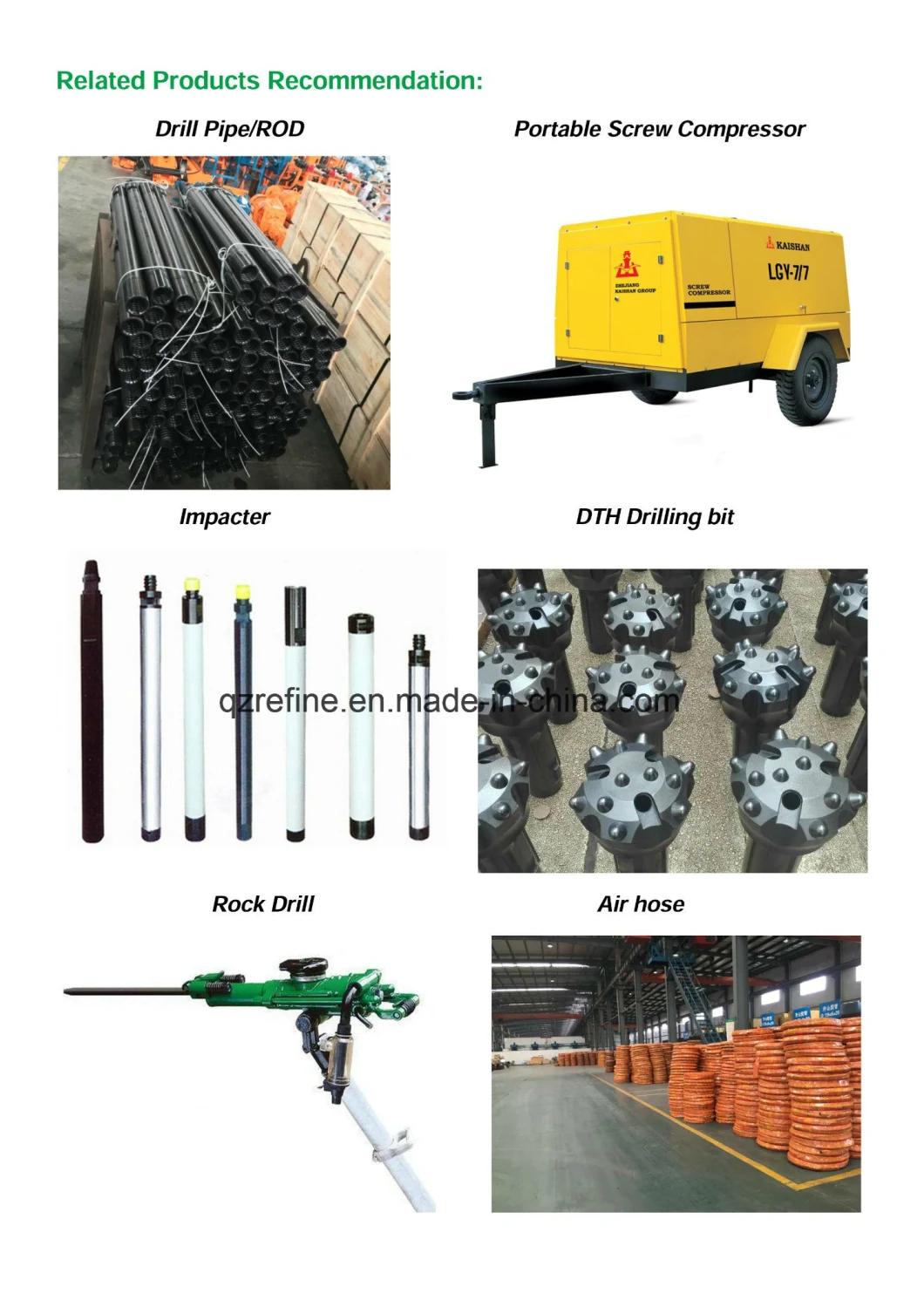

You may also interested in below accessories for Down The Hole Drill rig.

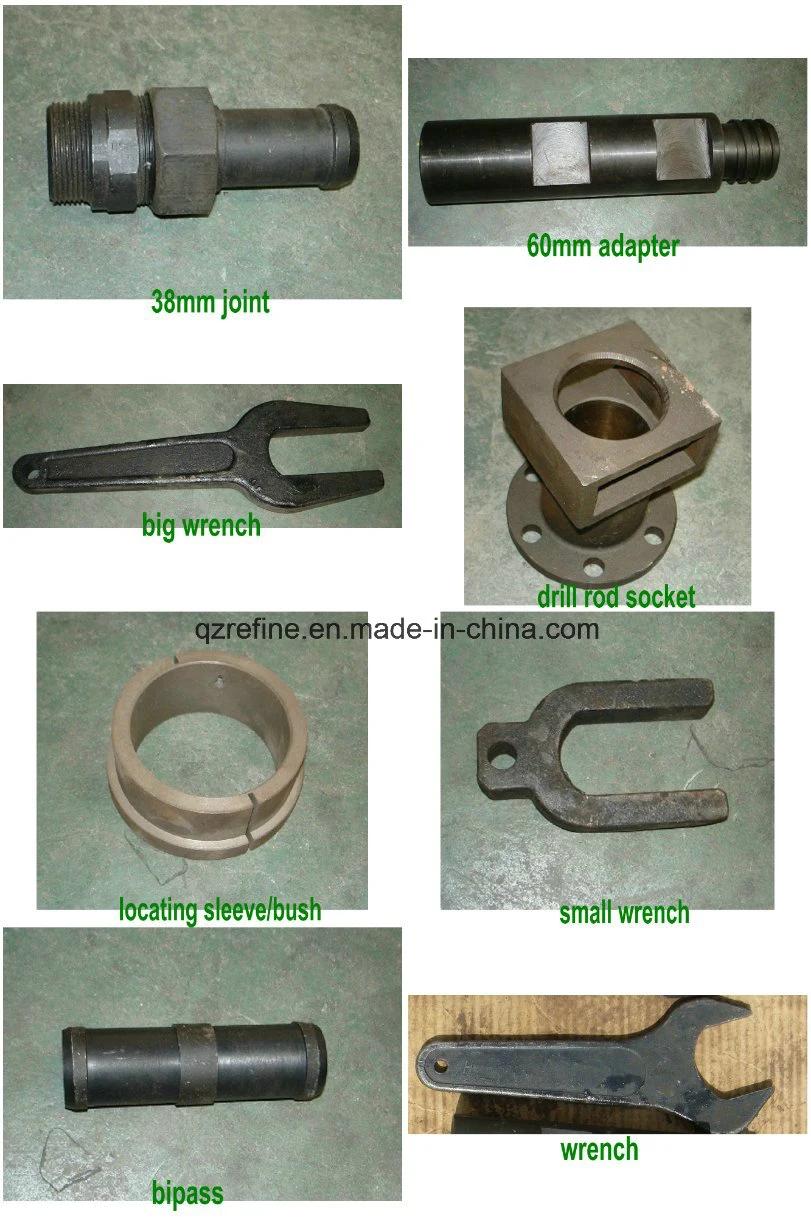

The Spare parts Kit for DTH Drilling Rig
