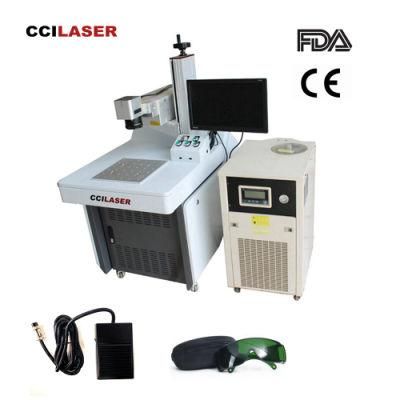

• Model NO.：FM-30D
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Wooden Case
• Specification：69Kgs
• Trademark：CCILASER
• Origin：China
• HS Code：8456110090
• Production Capacity：300 Sets Per Month

Lower cost per mark
The laser marking machine is ideal for marking large quantities of small-to medium sized parts such as pen, electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.
It is artistic, clear and permanent identification mark.
High speed processing, ease of use and minimal maintenance help you lower cost per mark.




 Easy to be operated

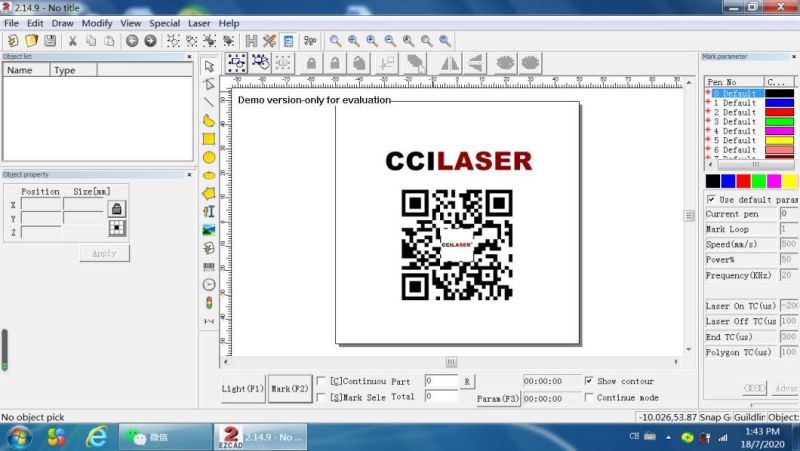

The original laser marking machine software EZCAD acts like a printer software. Users can design their graphics freely.
Common types of images and vector images are supported. (BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT.)
It support the computer environment 32 bits and 64 bits.

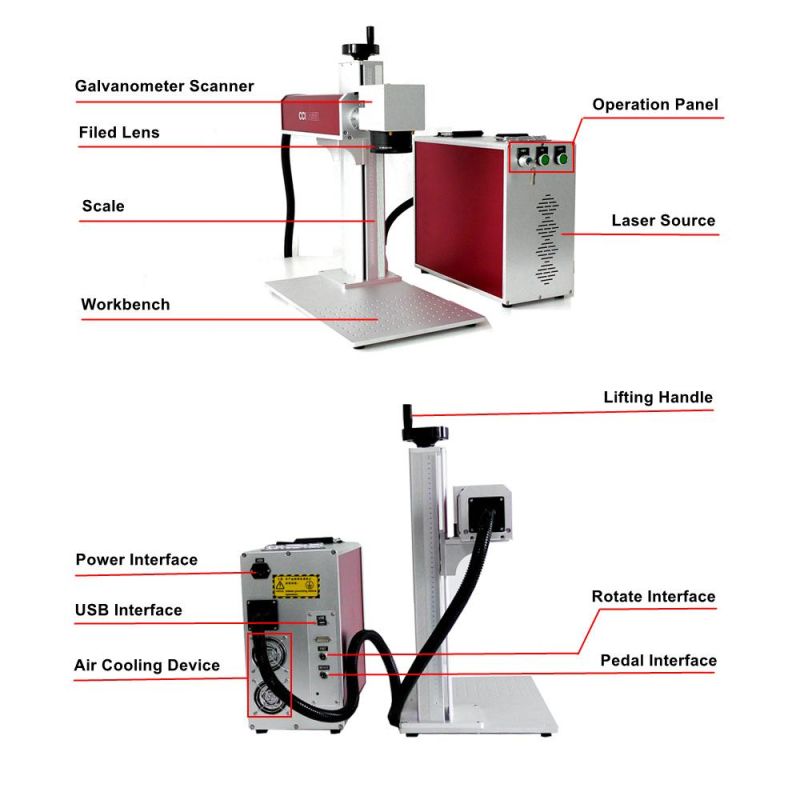

3. Main Structure


4. Case:

Fiber laser marking machine is used to mark on both metal and nonmetallic materials. The specific applicable materials are as follows:

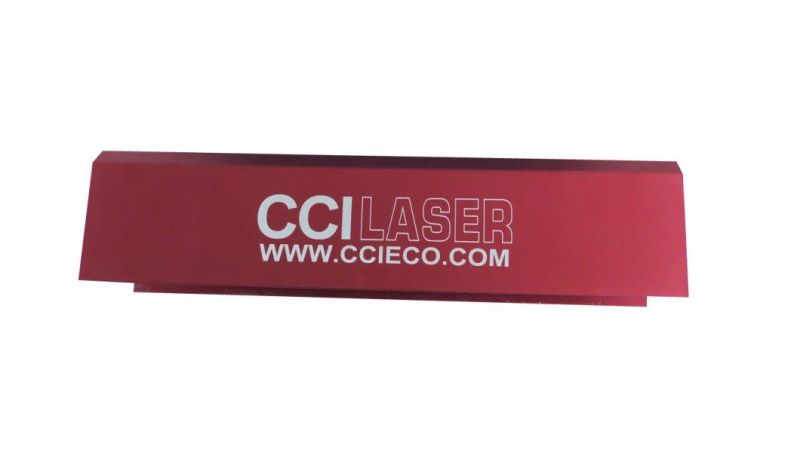

A. Metal materials: Stainless steel, carbon steel copper, aluminum alloy,etc.

Case: hardware tools, medical equipment, plumbing equipment, hard alloy, measuring tools, machine parts, instruments, kitchen appliances, gear bearings, valve, vehicle accessories, pens, thermos cups, auto and motorcycle accessories, etc.



B. Nonmetallic materials: synthetic materials, rubber, leather, hard plastic, the material with black film,etc.

Case: Concrete, Capacitors, inductors, printed circuit boards, integrated circuits, computer keyboards, electrical plug-in cards, electrical appliances, upvc profile, etc.

5. Techncial ParametersNo.Technical ItemTechnical Parameters No.Technical ItemTechnical Parameters1Power Rate20/30/50/60/100W 7Marking Line Speed< 7000mm/s2Wavelength1060-1064nm 8Laser Lifetime>100000hours3Beam QualityM2 less than 1.5 9Cooling MethodAir Cooling4Min. Character0.05mm 10Machine PowerLess than 600W5Min. Line Width0.01mm 11Power Supply220V 50Hz/ 110V 60Hz6Repeatability±0.001mm 12Package Weight69Kgs6. Main Components

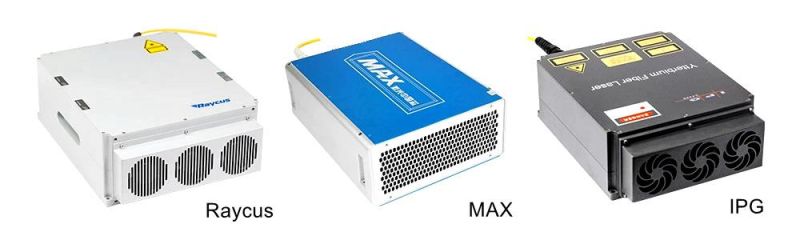

6.1 Laser Source: Raycus/ MAX/ IPG

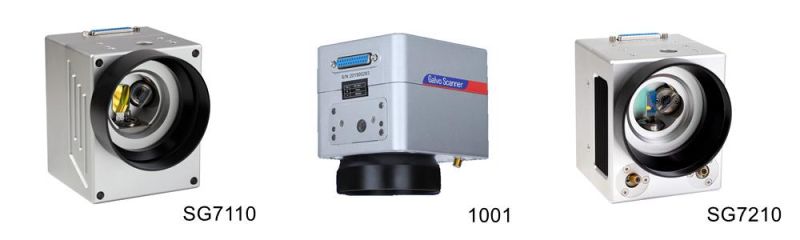

6.2 Galvanometer Scanner: SINO-GALVO

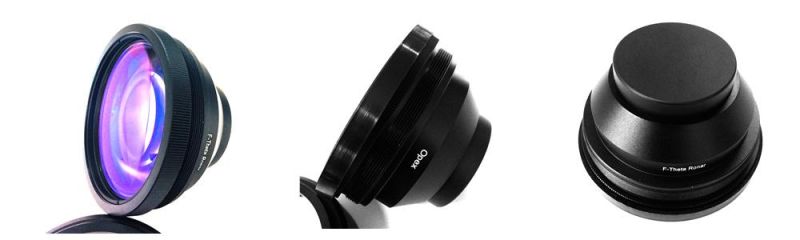

6.3 Field Lens: WAVELENTH

6.4 Marking Card/ Power Supply: BJJCZ/ MEAN WELL

6.5 Rotary Device (If need)

7. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

Wish cooperating with you to create a better future!
