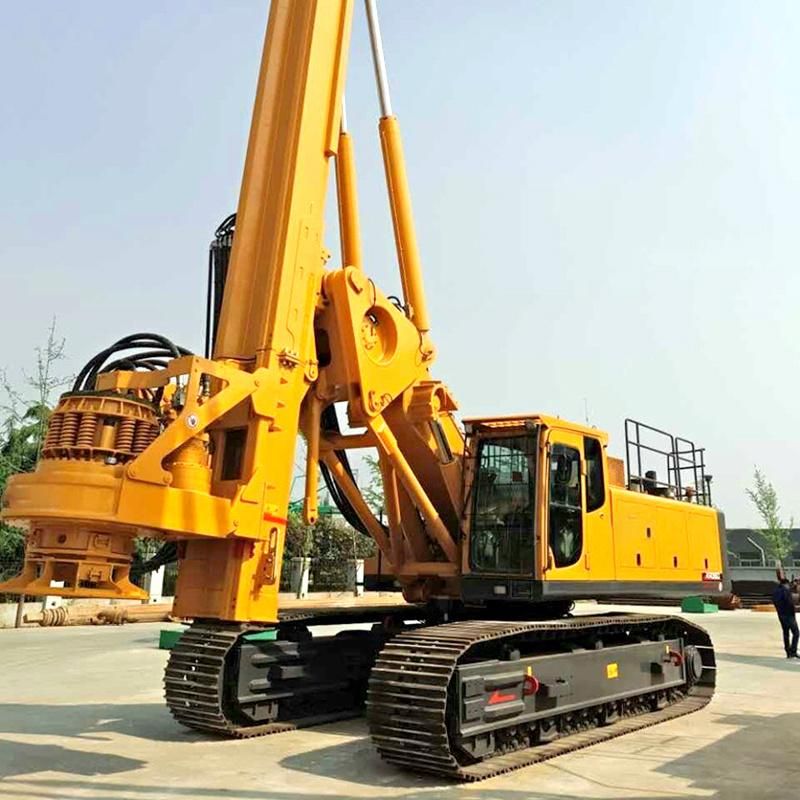

MODEL

XR280D

Max. pile Diameter(mm)

2500

Max. pile Depth(m)

88

Max.output torque(kN m)

280

Speed of rotationrpm

6~22

Engine model

QSM11-C400

Rated power (kw/rpm)

298/2,100

Working pressure(Mpa)

35

Diameter of the steel wire rope(mm)

32

The length of crawler (mm)

5052

Track shoe width(mm)

800

Operating weight (t)

83

Transport Dimensions (LxWxH/mm)

17380x3500x3520
