• Model NO.：OH100
• Gas Output：100L,H
• Welding Type：Oxygen Hydrogen Welder
• AC Voltage Requirement：110,220V
• Max. Working Pressure (Kg/Cm2)：2
• Max. Flame Modifier Consumption (L/H)：0.05
• Rated Power：400W
• Color：Green
• Water Feed：Manual
• Dimension：390*250*510mm
• Feature：Cost Saver, Water Fuel Saving, Safety, Eco-Friendly
• Transport Package：Standard Export Package; 1set,Carton
• Specification：gas capacity 100L,h
• Trademark：Okay Energy
• Origin：Changsha, China
• HS Code：8405100000
• Production Capacity：500sets,Month

Basic Info.

Model NO. OH100 Gas Output 100L/H Welding Type Oxygen Hydrogen Welder AC Voltage Requirement 110/220V Max. Working Pressure (Kg/Cm2) 2 Max. Flame Modifier Consumption (L/H) 0.05 Rated Power 400W Color Green Water Feed Manual Dimension 390*250*510mm Feature Cost Saver, Water Fuel Saving, Safety, Eco-Friendly Transport Package Standard Export Package; 1set/Carton Specification gas capacity 100L/h Trademark Okay Energy Origin Changsha, China HS Code 8405100000 Production Capacity 500sets/Month

Product Description

mini gas welder oxy-hydrogen welding generator jewelry laser welding machine
The data sheet

Model Number	OH100	OH200	OH300	OH400	OH600
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single
Rated Power(KW/h)	5V 60A	5V 60A	5V 60A	5V 60A	5V 60A
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.7	1	1.4	0.33
Water Feed	manual	manual	manual	manual	manual
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15
Flame Modifier Feed	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510
Gross Weight (kg)	15	20	25	35	45
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Product Description
1.What is oxy-hydrogen welding machine?

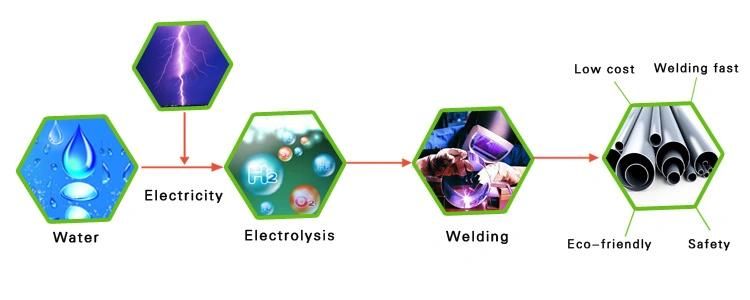

Oxy-hydrogen jewelry welder machine is able to separate clean soft water (H2O) into hydrogen and oxygen gases, using a small amount of electric power through a special process. These gases are then mixed and delivered for use in a wide variety of applications, such as jewelry welding, which currently use arc,laser welding.For jewelry work,it features welding fast,safety,smooth welding spot etc.

2. Why I use oxy-hydrogen portable jewelry welder machine?




3.Wide application of HHO generator/oxyhydrogen generator
(1)  Electronic Industry:welding enameled wire, computer wire peeling, LED wafer, flame-treating circuit board thermocouple and platinum resistor leading wires.
(2)  Medical Industry:welding metal fittings and mending sand holes in dentistry.No-carbon flame disinfection and glass seal.
(3)  Laboratory/university/school teaching
(4)  Jewelry Industry
welding kinds of chain and string which are made of platinum, gold, silver, copper, stainless steel, etc. For mending tiny sand holes on jewelry casting and jewelry repairing.

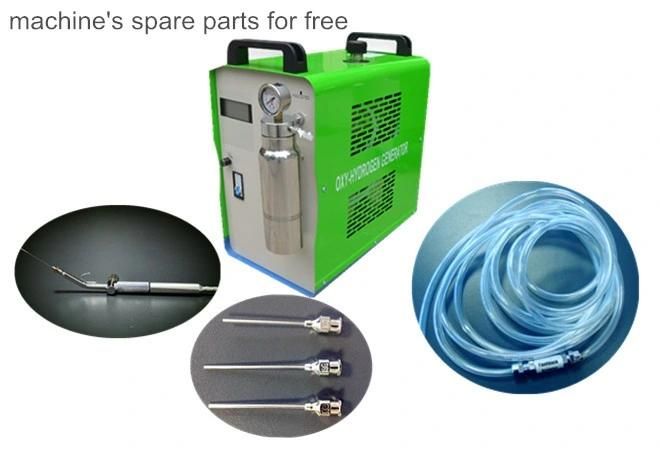

4.Machine accessories
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit




Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;

Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)

Company Introduction
Okay Energy Equipment Co.,Ltd is one of the largest manufacturers in producing oxyhydrogen generator for over 13years, we have autorized CE,ISO9001,FCC certificates and our own patents.We provide the best service and high quality products to our customers. If you have any questions, pls don't be hesitate to contact us.
