• Model NO.：OMM hydraulic motor
• Output Shaft：Parallel Key, Splined Key
• Flange：Circle-Flange, Rhomb-Flange
• Motor of Material：Cast Iron
• Output Power：Contin1.8~2.4kw
• Pressure：Contin 70~100bar
• Fuel：Hydraulic Oil
• Item：Hydraulic Power Unit
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：100000 PCS,Year

                                           BLINCE Orbital hydraulic motor OMM

Model:OMM8,OMM12.5,OMM20,OMM32,OMM40, OMM50Flange:3-M6 Circle-flange, pilotØ 31.5× 5
3-1/4-28UNF Circle flange, pilot Ø 31.5× 5
2-Ø 9 Rhomb-flange, pilotØ 63× 2Output shaft:ShaftØ 16, parallel key 5× 5× 16
ShaftØ 15.875, parallel key 4.8× 4.8× 19.05
ShaftØ 16.5, involute B17× 14, DIN5482Ports/drain port:G3/8, G1/8
9/16-18UNF, 3/8-24UNF
End port G3/8, G1/8
End port 9/16-18UNF, 3/8-24UNF
Rotation directionalForward
Reverse
Paint:No paint / Silver grey / Black / Blue

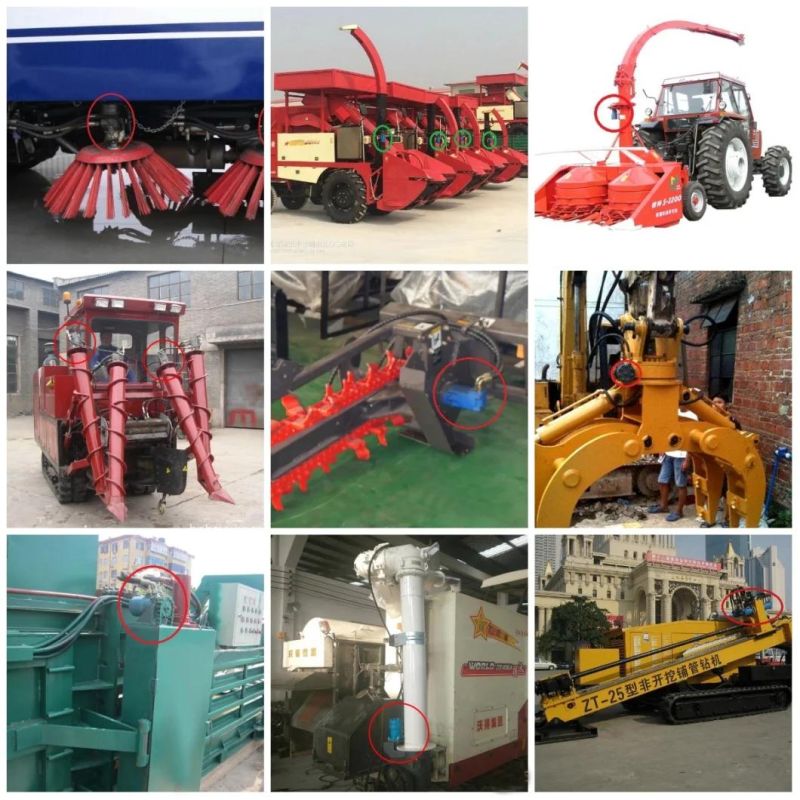

Application areas:

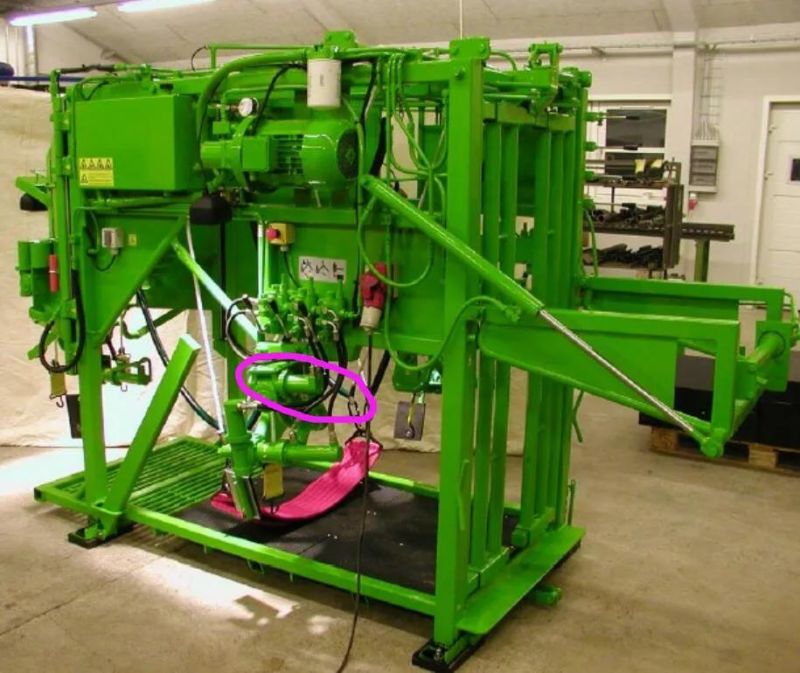

* Hydraulic hoof trimming crush
* Construction equipment
* Underwater Hull Cleaning machine
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Special purpose
* Machine tools and stationary equipment
* Marine equipment
* Any More





Packing details:
1) sale packing contians carton or wood case
2) interior packing is high quality film
3) as your request



My friends,

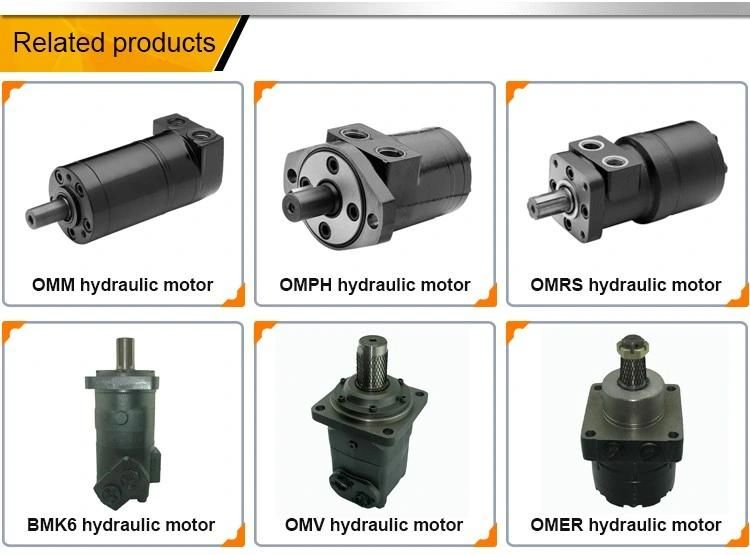

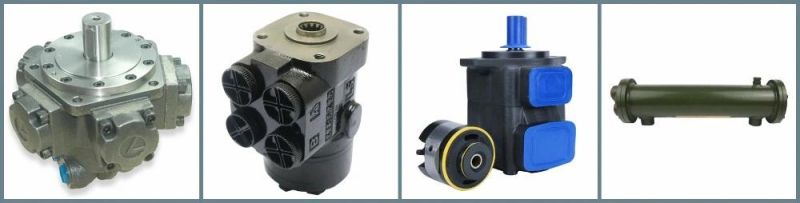

We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.
