• Model NO.：LBJC-700
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Control Software：Ezcad
• Laser Source：Ipg, Raycus, Max
• Marking Area：110*110mm, 175*175mm, 255*255mm, 300*300mm
• Marking Speed：7000mm,S
• Transport Package：Wooden Case
• Specification：20w 30w 50w 70w 100w
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. LBJC-700 Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Control Software Ezcad Laser Source Ipg, Raycus, Max Marking Area 110*110mm, 175*175mm, 255*255mm, 300*300mm Marking Speed 7000mm/S Transport Package Wooden Case Specification 20w 30w 50w 70w 100w Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 300 Sets Per Month

Product Description

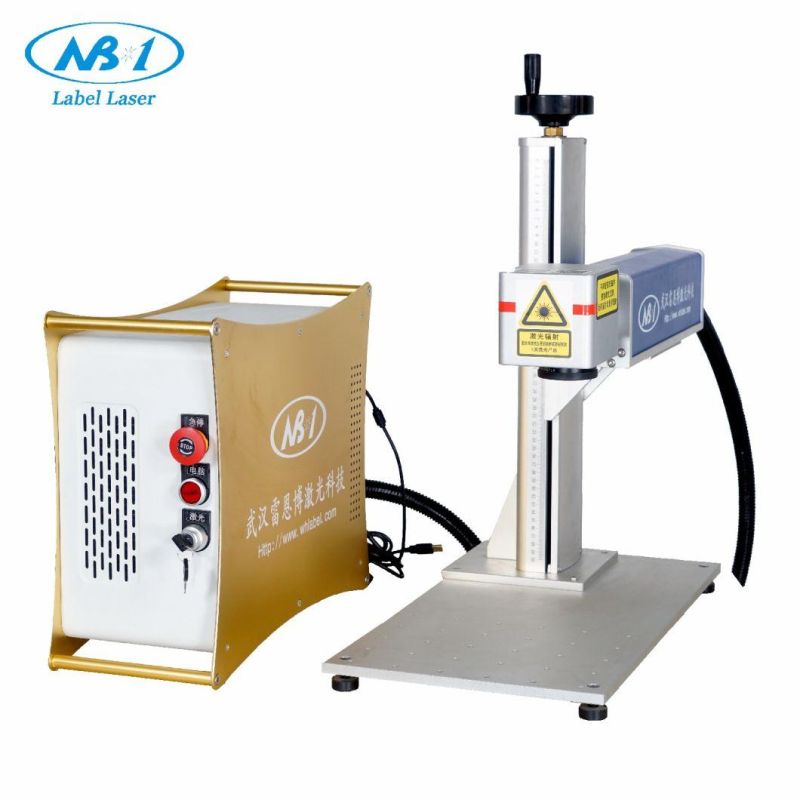

Handheld Portable CO2/UV/Fiber Laser Marking Machine 20W 30W 50W 70W 100W



Technical Parameter:



Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W
Model	LBGX-300-A, LBGX-300-B,  LBGX-300-C,  LBGX-300-D, LBGX-300-E/F, LBGX-300-G I/II/III, LBJC-700
Laser Wavelength	1064nm
Laser Source	IPG, Raycus, Max, JPT
Marking Area	110*110mm,150*150mm,175mm*175mm, 255mm*255mm, 300mm*300mm
Marking Depth	≤0.6mm(depand on power, processed material and procedure)
Marking Speed	7000mm/s
Repeated Precision	±0.003mm
Minimum Character	0.3mm
Life-span of Fiber Laser Module	100,000hours
Beam Quality	M2 <1.1
Focus Spot Diameter	<0.01mm
Operation System and Software	Windows XP/2000, 7,10 JCZ EZCAD
Communication Interface	RS-232 serial port, TCP/IP network port, I/O port, ect.
Cooling Mode	Air cooling
Temperature of Operation Environment	5ºC~35ºC
Humidity of Operation Environment	30-85%( Condensation is not allowed)
Power Input	220V ( ±10%)/ 50HZ( ±5%)   single phase
Power Requirement	≤500W
Communication Interface	USB


Product Features:

1. It is suitable for marking and engraving on metal, aluminum, stainless steel, brass, silver, alloy, iron and nonmetal surface.

2. High speed and delicate marking. Smooth and beautiful marking effect.

3. It is compact, portable, and can be integrated into production line or other small space for automation system integration. Optional rotary device can be added for round shape products marking.

4. The machine can mark on big and heavy workpieces. We can use position marking function by adding handheld fiber laser head.

5. Durable and reliable. 100,000 hours long working life, ultra-low running cost and power consumption.

6.  No consumable needed, free of manitance.

7. Support Windows XP/2000,  Window 7, 8, 10, JCZ EZCAD laser marking software. Easy to learn and operate.

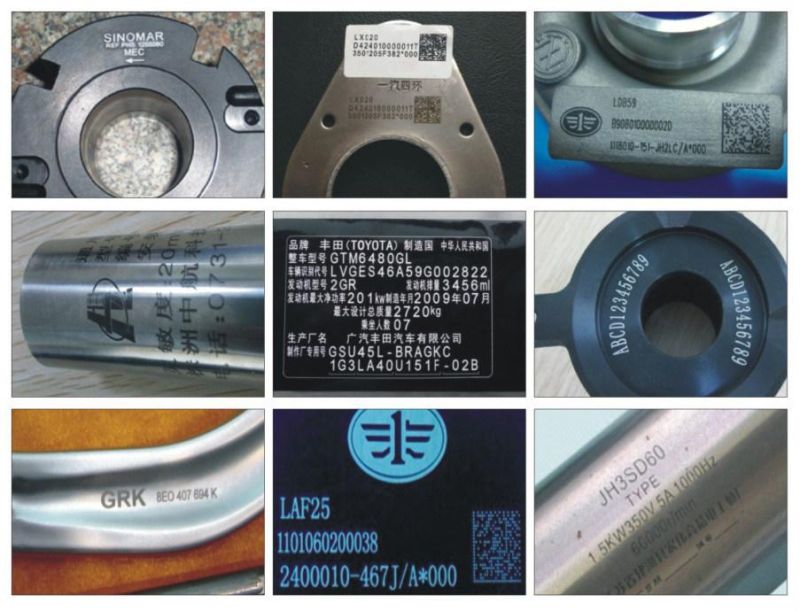

Marked Samples



Applicable field and material:

It is mainly used for marking and engraving on metal, aluminum, stainless steel, brass, silver, alloy, iron and nonmetal surface. Our machine is widely applied in auto parts, mechanical products, hardware tools,medical devices, electrical appliances, consumer products, ect.
Packing detail




Company Profile

Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser welding machine, laser cleaning machine for customers since 2006.

With over 16 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-know customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.





Why choose us


A. More than 18 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.

B. Professional technical group for customized industrial laser marking system.

C. More than 3000+marking solution cases accumulated in domestic and oversea markets.

D. 100% strict QC for both raw materials and finished products.

E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.

F. ISO,CE,SGS certified and complete aftersales service team.


FAQ


Q1: What type of the machine suitable for us?

Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.

If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.

Q3: How about the delivery time?

For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
