• Model NO.：QCJ600
• Application：Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut
• Customized：Customized
• Roller Width：600mm
• Roller Speed：0.3-1.5r,Min
• Surface Temp of Cooling Roller：About-20ºC
• Cooling Tunnel Temp.：0-5ºC
• Cooling Time：18-30min
• Brine Tank Refrigeration Output：12390W,H
• Evaporation Temp.：-35ºC
• Condensation Temp.：30ºC
• Total Power：30kw
• Transport Package：Sea Transportation
• Specification：8620*1480*2100mm
• Trademark：GUSU
• Origin：China
• HS Code：8438200000
• Production Capacity：20 Sets, Month

Basic Info.

Model NO. QCJ600 Application Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut Customized Customized Roller Width 600mm Roller Speed 0.3-1.5r/Min Surface Temp of Cooling Roller About-20ºC Cooling Tunnel Temp. 0-5ºC Cooling Time 18-30min Brine Tank Refrigeration Output 12390W/H Evaporation Temp. -35ºC Condensation Temp. 30ºC Total Power 30kw Transport Package Sea Transportation Specification 8620*1480*2100mm Trademark GUSU Origin China HS Code 8438200000 Production Capacity 20 Sets/ Month

Product Description

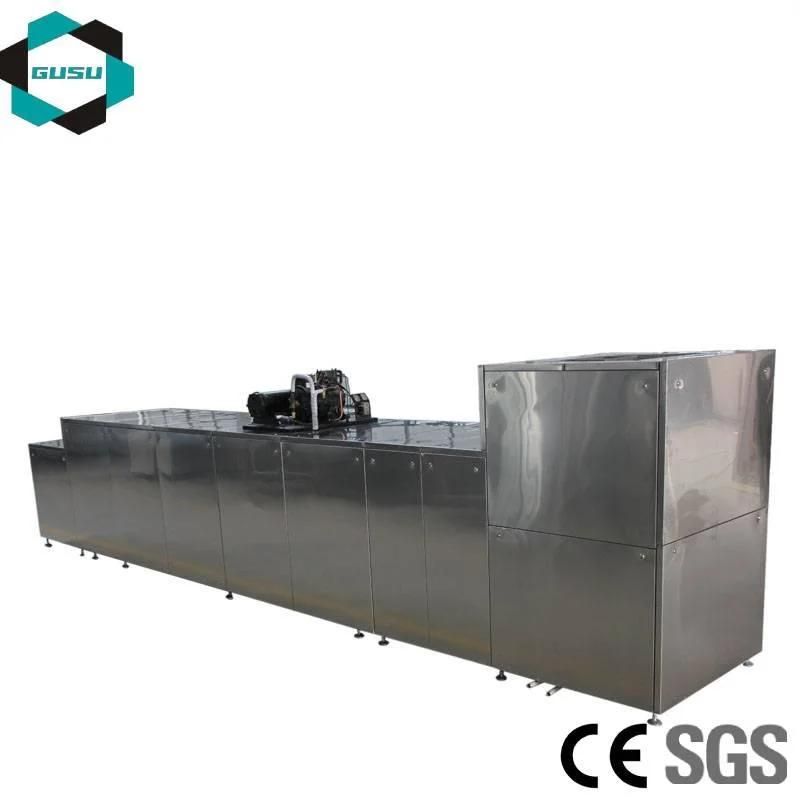

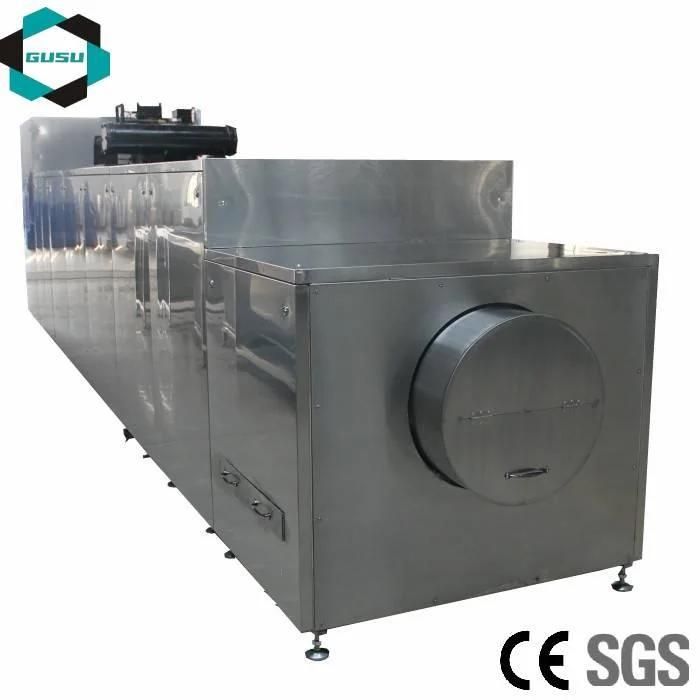

Chocolate Bean Roller Former

Product Description

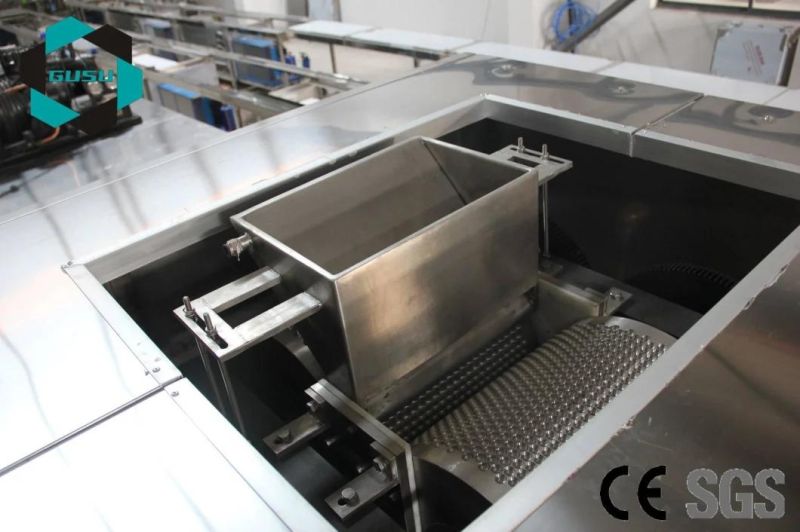

Gusu Chocolate Bean Roller Former machine is specially used for cold rolling to produce different shapes of pure chocolate such as ball shape, ellipse shape, bean shape and a variety of other shapes with simple operation, hygienic and safe.

Technical Parameter

Model	QCJ 400	QCJ600
Roller Width(mm)	400	600
Production Capacity (kg/h)	100-150	150-250
Roller Speed (r/min)	0.3-1.5	0.3-1.5
Surface Temp. of Cooling Roller(ºC)	About -20	About -20
Cooling Tunnel Temp. (ºC)	0-5	0-5
Cooling Time (min)	18-30	18-30
Cooling Box Refrigeration Output(W/h)	8260	12390
Evaporation Temp. (ºC)	-35	-35
Condensation Temp. (ºC)	30	30
Total Power(KW)	25	30
Overall Size(mm)	8620*1040*2100	8620*1480*2100

RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to your request, inform the estimated time.
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better.

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will provided technical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation .
