• Model NO.：BB100
• Transport Package：Wooden Packing or Customized
• Specification：1632*800*1420mm
• Trademark：SHINWEI
• Origin：Shanghai, China(Mainland)
• HS Code：8501610000
• Production Capacity：20 Sets Per Year

Basic Info.

Model NO. BB100 Transport Package Wooden Packing or Customized Specification 1632*800*1420mm Trademark SHINWEI Origin Shanghai, China(Mainland) HS Code 8501610000 Production Capacity 20 Sets Per Year

Product Description

Hard Biscuit Production Line Bear Biscuit Machine

Product Description:

This production line is the matured product of our company. It equipped with modern design,
compact construct and high degree of automation. Our company can provide you with reasonable design configuration according to your factory site, requirements of capacity and electric.We are committed to achieve customer's satisfaction. Besides, The shape of biscuit is up to the mold. Our company can provide hundreds of molds to you for your choice. Certainly,we can adopt customer's design and customize. Whether the cream biscuit, crackers, soda biscuit, animal biscuit, Whole-grain crackers or sandwich biscuit on the market, This machine can produce.

Total Parameter:

1. Baking Type: gas Tunnel Oven

2. Capacity: 200kg/hour  Total Length of this line: 37M, total width of this line: 6M

3. Biscuit Requirement: Hard biscuit as below:

Main Technical Parameter:

1. Dough Mixer(150 Type)
1. Mixing Time: 10-15min
2. Type:150kg/h
3. Power:7.5KW
4. Dimension:1632*800*1420mm
5. Weight:1056KG
6. Material:(inner wall ) stainless steel
Application: mixing the flour material evenly and quickly, one set is for hard biscuit, the other one is for soft biscuit.

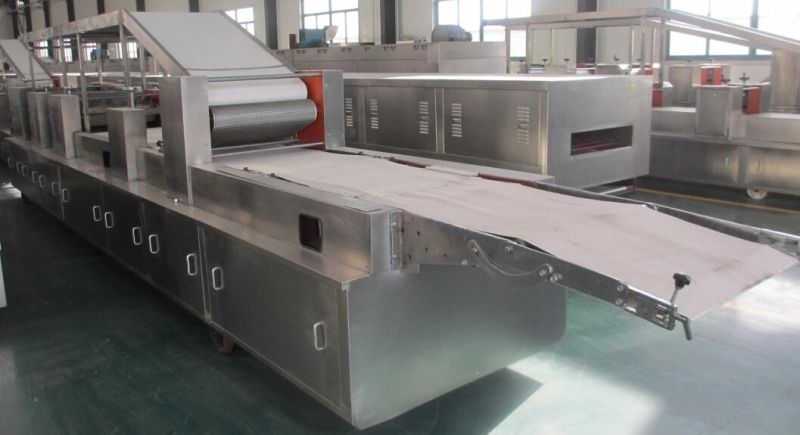

2. Rotary Cutter
1. Power: 5.5kw
2. Dimension:7500*1120*1700mm
3. Weight: 2200kg
4. Material:
The shell of the machine: Stainless Steel
Transmission parts: Carbon Steel
Application:Rotary cutter is forming machine for hard and cracker biscuit. When dough sheet go through rotary cutter machine, it will be cut and shaped by moulds. And the scrap will be conveyed to the hopper by recycle device after separating.

3. Transition Conveyor
Power: 1.1kw
Voltage: 380V/50HZ
Dimension: 1300*1000*880mm
Weight: 600kg


4. Inlet&Outlet Conveyor style:
Inlet Part
1. Power: Passive
2. Dimension: 2000*1200*1000mm
3. Weight: 450kg
4. Material: The shell : Stainless Steel transmission parts Carbon Steel
Outlet Part
1. Power: 5.5kw
2. Dimension: 2500*1200*1000mm
3. Weight: 600kg
4. Material: The shell : Stainless Steel transmission parts Carbon Steel
Application: Oven driven is for driving the belt of oven.

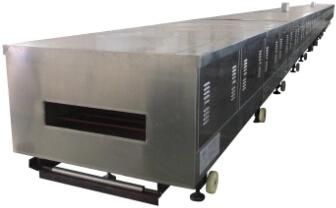

5. Gas Tunnel Oven
1. Power:28kw
2. Dimension: 36000*1300*1500mm
3. Weight: 15000kg
4. Material: The shell of the machine: Stainless Steel
Application: for biscuit baking




6. Control Cabinet
1. Dimension:800*450*1800mm

2. Weight:250kg
Application: control the tempeture of different area of Tunnel Oven

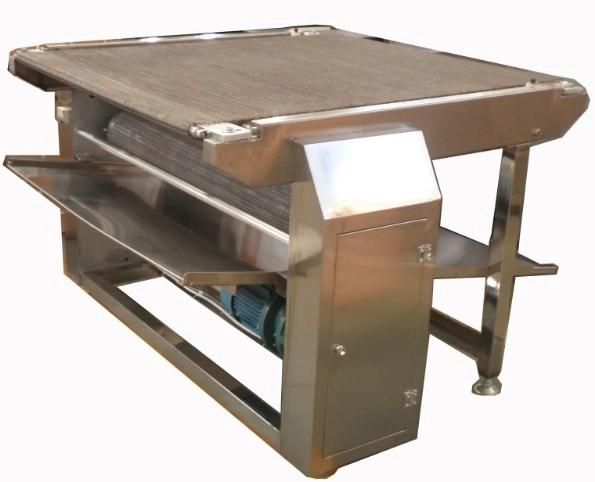

7. Peeling Machine
1. Power: 1.1kw
2. Voltage: 380V/50HZ
3. Dimension: 1300*1000*880mm
4. Weight: 600kg
Application: This unit is used for connecting the biscuit coming out from oven and the other related equipment.

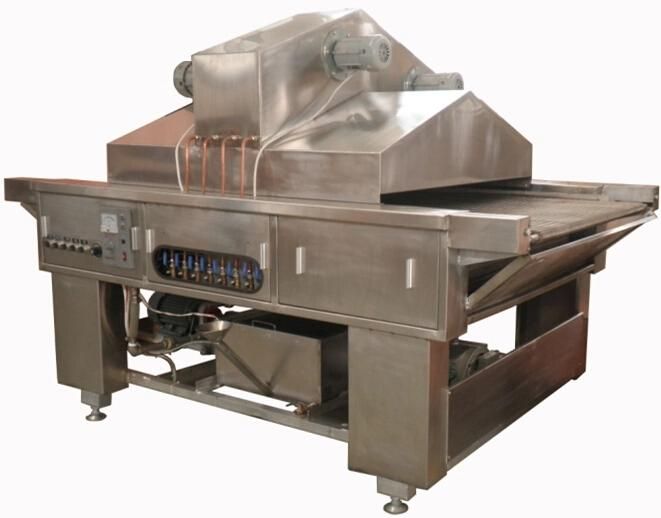

8. Oil Sprayer
1. Power: 7.5kw
2. Dimension: 2500*1000*1450mm
3. Weight: 600kg
4. Material:
The shell of the machine: Stainless Steel
Stainless Steel Belt
Application: spraying oil evenly to make biscuit look nice and taste crispy

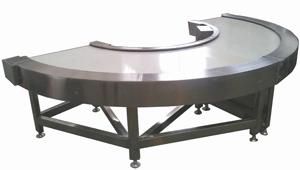

9. 180° Swerving Machine
1. Power: 3kw
2. Dimension:5500*2400*800mm
3. Weight: 800kg
Application: 180° change the biscuit production line direction, saving the whole line length to meet the factory layout need.

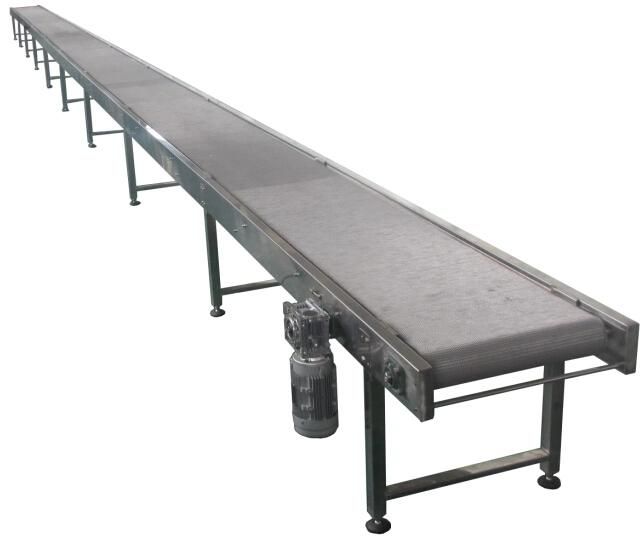

10. Cooling Conveyor
1. Power: 2.2kw
2. Dimension: 24000*880*650mm
3. Weight:2000kg
Application: making sure biscuits are cooling enough before biscuit packaging, keep longer Shelf life of biscuit




10. Cooling Conveyor
1. Power: 2.2kw
2. Dimension: 24000*880*650mm
3. Weight:2000kg
Application: making sure biscuits are cooling enough before biscuit packaging, keep longer Shelf life of biscuit

11. Biscuit Stacking Machine
1. Power: 2.2kw
2. Dimension: 3000*880*1250mm
3. Weight: 800kg
4. Material:
The shell of the machine: Stainless Steel
Transmission parts: Carbon Steel
Application: This unit is used to stack biscuit, use star wheel and discrepancy device enable the biscuit coming into rows and transport to packaging conveyor for pack.

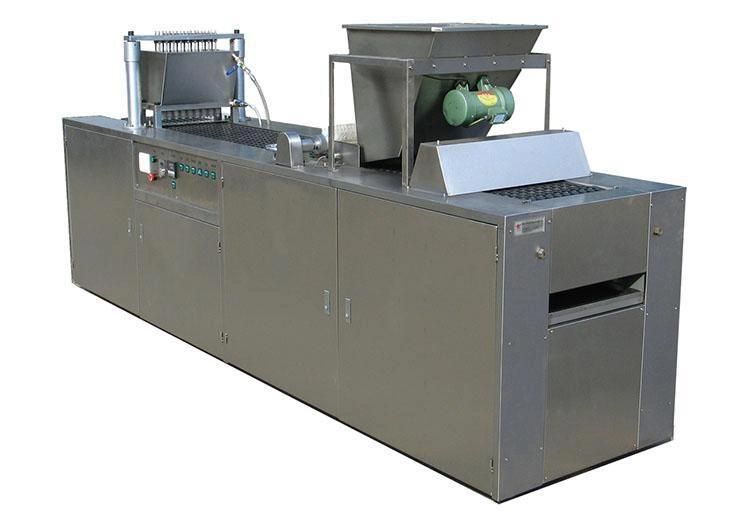

12. cream injection machine
1. hopper for bear biscuit
2. hopper for cream
3. injection needles
4. power: 3kw




13. Packing Conveyor

1. Power: 1.5kw
2. Dimension: 8000*1100*680mm
3. Weight: 600kg
4. Material: Machine Frame: Stainless steel
Application: a conveyor to packing biscuit , then translating to package machine to packaging

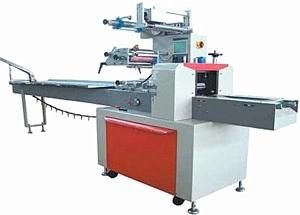

14. Pillow Packing Machine
1.Model: KF320
2.Power: 3kw
3.Bag size: Length 260mm
Width 320mm
Height: Less than 65mm
4.Dimension: 4000*900*1600mm
5.Weight: 600kg
6.Packing speed: 10-180bags/min
Application: packaging biscuit in small bags and sell , we can offer a roll of this bag material

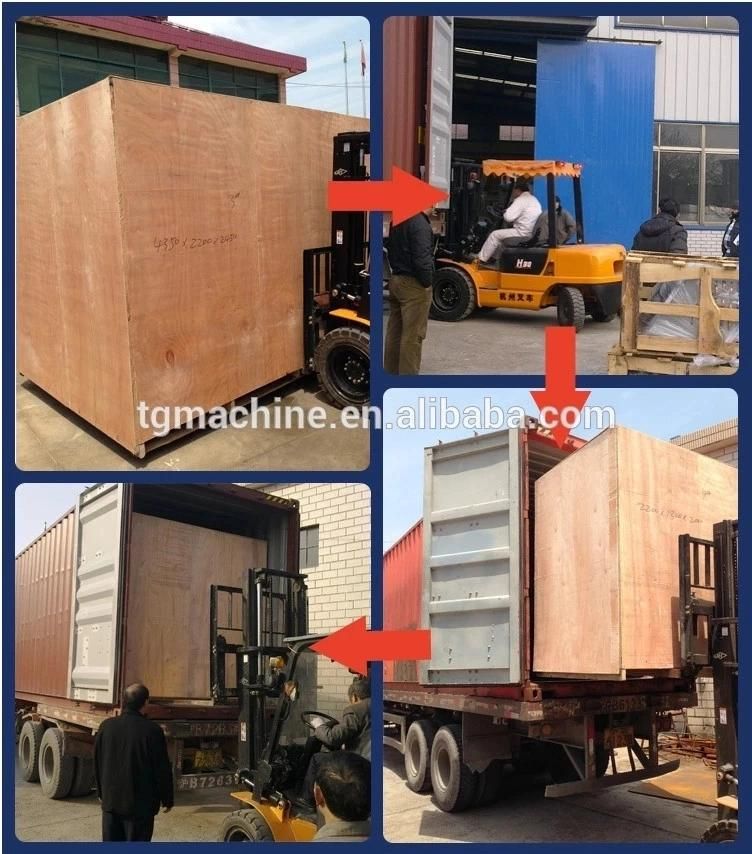

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.



After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
