• Model NO.：MAN-1390
• Laser Classification：Fluid Laser
• Engraving Method：Vector Engraving
• Model：Man-1390
• Working Area：1300*900mm
• Laser Power：60W ,80W ,100W
• Engraving Speed：0-64000mm,Min
• Cutting Speed：0-36000mm,Min
• Preposition Accuracy：0.1mm
• Cutting Platform：Blade or Honeycomb Table
• Driving System：Stepper Motors
• Power Supply：AC220V 50Hz
• Warranty：2 Years
• Transport Package：Wooden Box
• Specification：2000*1600*1250mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-1390 Laser Classification Fluid Laser Engraving Method Vector Engraving Model Man-1390 Working Area 1300*900mm Laser Power 60W /80W /100W Engraving Speed 0-64000mm/Min Cutting Speed 0-36000mm/Min Preposition Accuracy 0.1mm Cutting Platform Blade or Honeycomb Table Driving System Stepper Motors Power Supply AC220V 50Hz Warranty 2 Years Transport Package Wooden Box Specification 2000*1600*1250mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

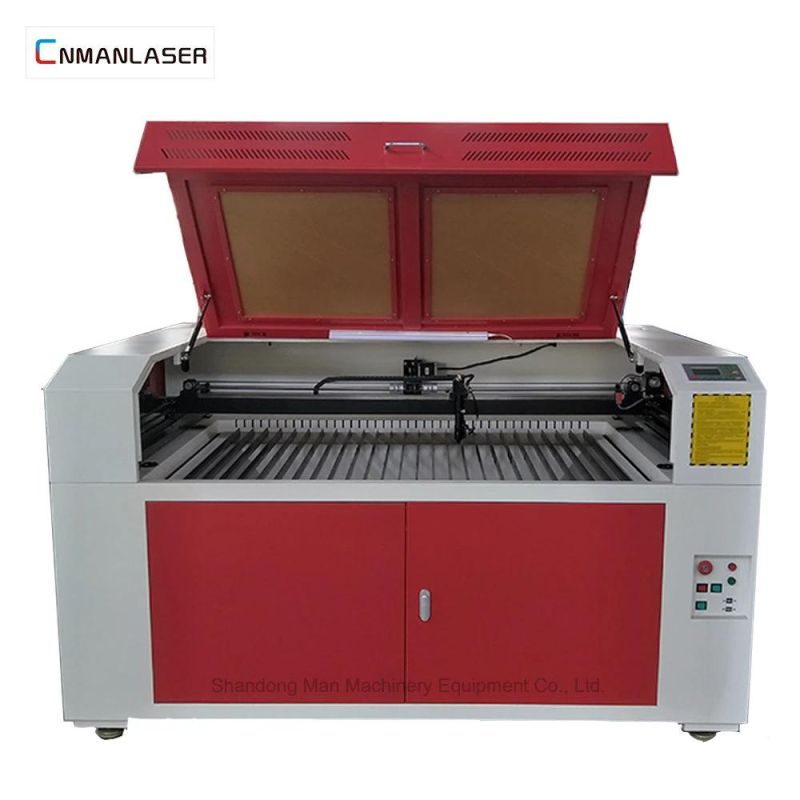

1390 co2 150w tube laser cutting machine for 3mm stainless steel

Production :



MAN-1390  Laser Cutting Machine work with 2 sets of co2 laser tube, power supply, cooling system and laser cutting heads, so that the processing

efficiency will be doubled. Dual heads Laser Cutting Engraving Machine is to put the moving control into full play and therefore increase the working

effects of laser processing.

In each aspect, from the software design, mechanical structure to the configuration, the tenet is to serve for the processing to make sure the stability,

precision and speed under the safe and overall quality-management working environment.

There are two working places for this Laser Cutting Machine/Engraving Machine, which can alternate automatically so that the machine can cut while

feeding and the feeding time is greatly decreased.

Technical Parameter :



Laser type	Hermetic CO2 glass tube
Laser power	80 W/100W/130W/150W (optional)
Driving System	Stepper motor
Power supply	AC220±10% 50HZ/AC110±10% 60HZ
Total power	≤2,000W
Working area	1300*900mm
Max moving speed	0-30000mm/min
Worktable	Up&down worktable/fixed worktable (optional)
Location precision	±0.1mm
Mini shaping character	Chinese Character, 2*2mm, English Letter, 1*1mm
Resolution ratio	≤4500DPI
Control configuration	RUIDA Controlling System
Data transfer interface	USB (offline)
System environment	Windows 2000/ Windows XP /Win 7
Cooling way	Water cooling and protection system
Graphic format supported	files which CorelDraw,Photoshop can identify  (BMP,GIF,JPGE,PCX,TGA,TIFF
Cutting thickness	0-20mm (depends on different materials)
Color separation	Separation of cutting up to 256 colors
Operating temperature	0-45ºC
Operating humidity	5-95%
Cuts off the water supply  the protection	Yes
Machine dimension	2000*1600*1250mm
Net weight	400kg
Optional Parts	High-grade cooling system/imported focus lens/double-head/cylinder rotary .

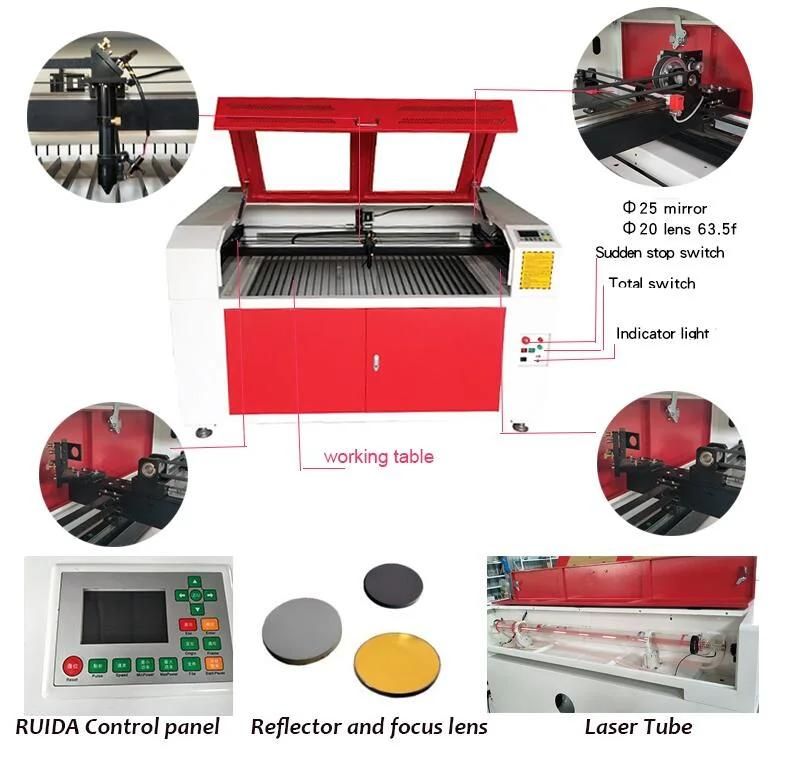

Details Images :

Advantage :

1>  Adopt DSP Digital Control technology  and Integrated Frame Structure to Ensure Work Stability.

2>  Original Imported Straight Linear Guide Rail X. Y axis Makes the Machine Running on a high Speed and Precision.

3>  The Imported Optical Lens adopt High Intensity Gilding Silicon and Non Sphere Fcusing Lens. The Focusing Dimeter of the Non Sphere is Small,

 and make the Cutting Effect better.

4>  High Quality Laser tube Provides Strong Laser beam and Longer Service Life.

5>  The Laser tube adopts Compulsive Water Cooling System,

      High grade No-Water Warning and Automatic Protection Water Chiller Can Control the temperature Autimatically.

      It will  Alarm  iF there is Shortage of Water, thus Extend the Lifetime of Laser tube.

6>  High Compatibility, Applicable for the Models Like AI, CDR, BMP, DST, DSB and PXF etc.

7>  Offline Control System,  Which can Not only work without Computer,  but also Connect to U disk, USB Communication.

8>  LCD Control Panel in English,  Convenience of Operation Control.

9>  Comply With CE & FDA Certificate

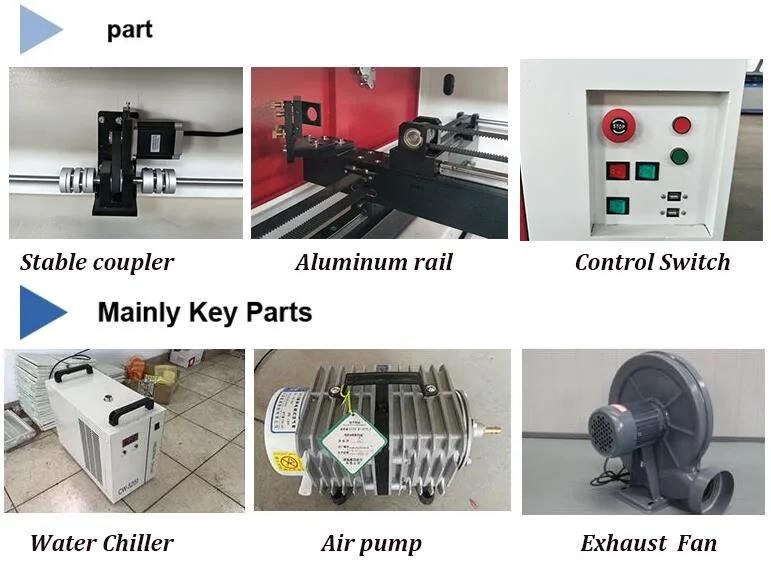

Optional Laser parts for the laser machine :

Sample Show :

Applicable materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,

glass and other nonmetal materials.

Applicable industries:

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry

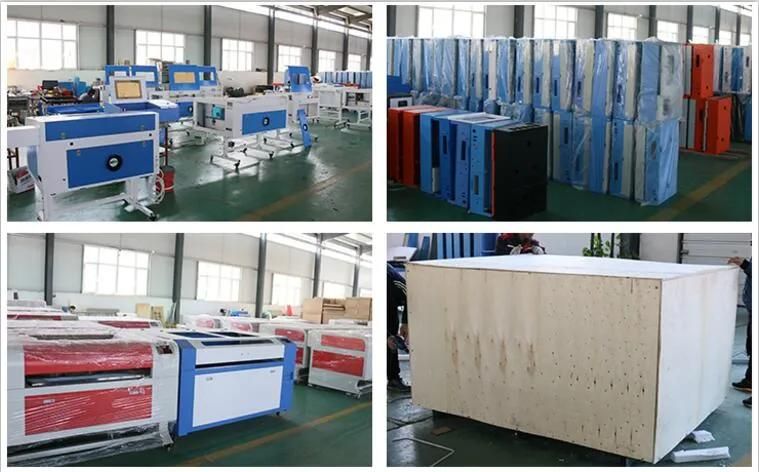

Packaging & Shipping :



Services   :

Our sincere service to customers:

# 24 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

# Software is on update for free whole life.

# Our engineer could support you technology to your country if necessary.

# Our enginner could service on weekend even on vacation.

# Our engineer could train you in our factory for free.

# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.

# English manual and CD video for machine using and maintaining will send to you with the machine.
