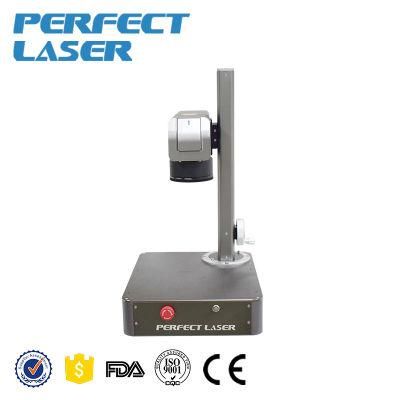

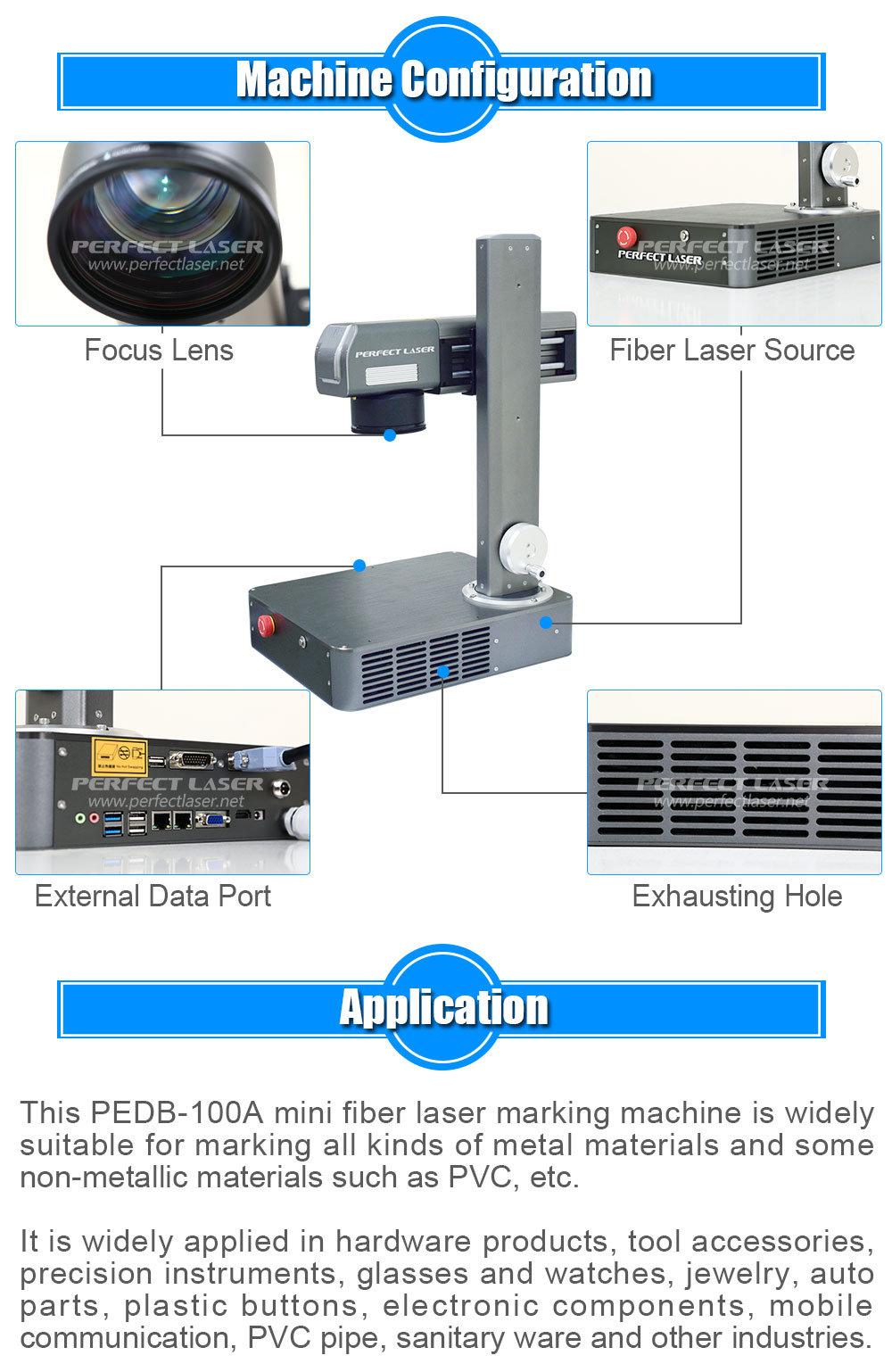

• Model NO.：PEDB-100A
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser

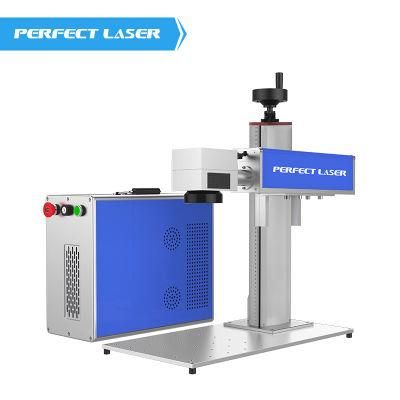

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Engraving Machine Type：Laser Engraving Machine
• Laser Type：Fiber Laser
• Usage：Electronic Components, Charger, Wire Cable, Mobile

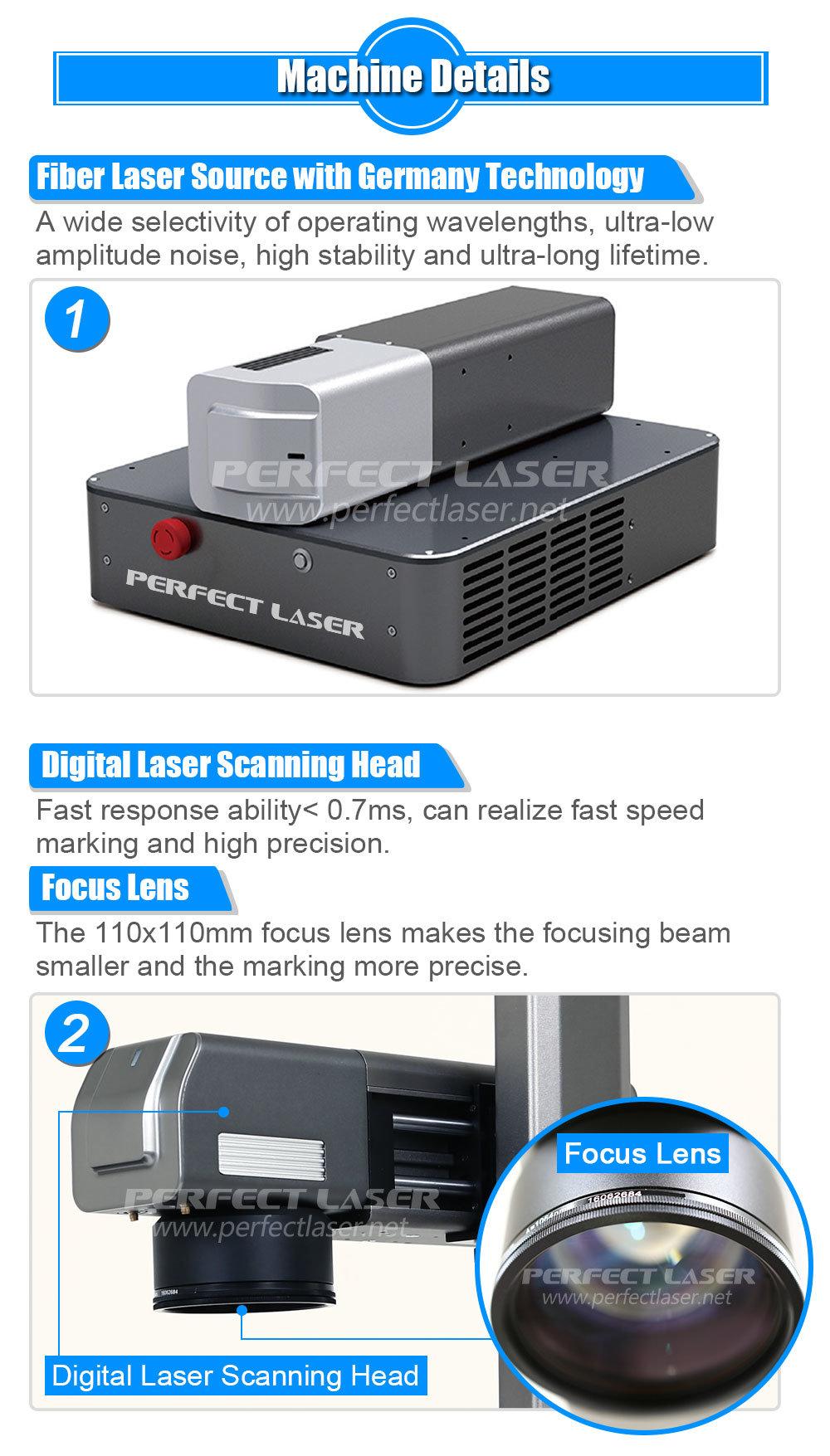

• Laser Head：Galvanometer Head
• Laser Device：Ipg Raycus Max Mopa
• Life Time：8-10 Years
• Working Size：110*110mm
• Optional Working Size：175*175mm 200*200mm
• Working Voltage：110-220V
• Transport Package：Wooden Case
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：200 Set, Month

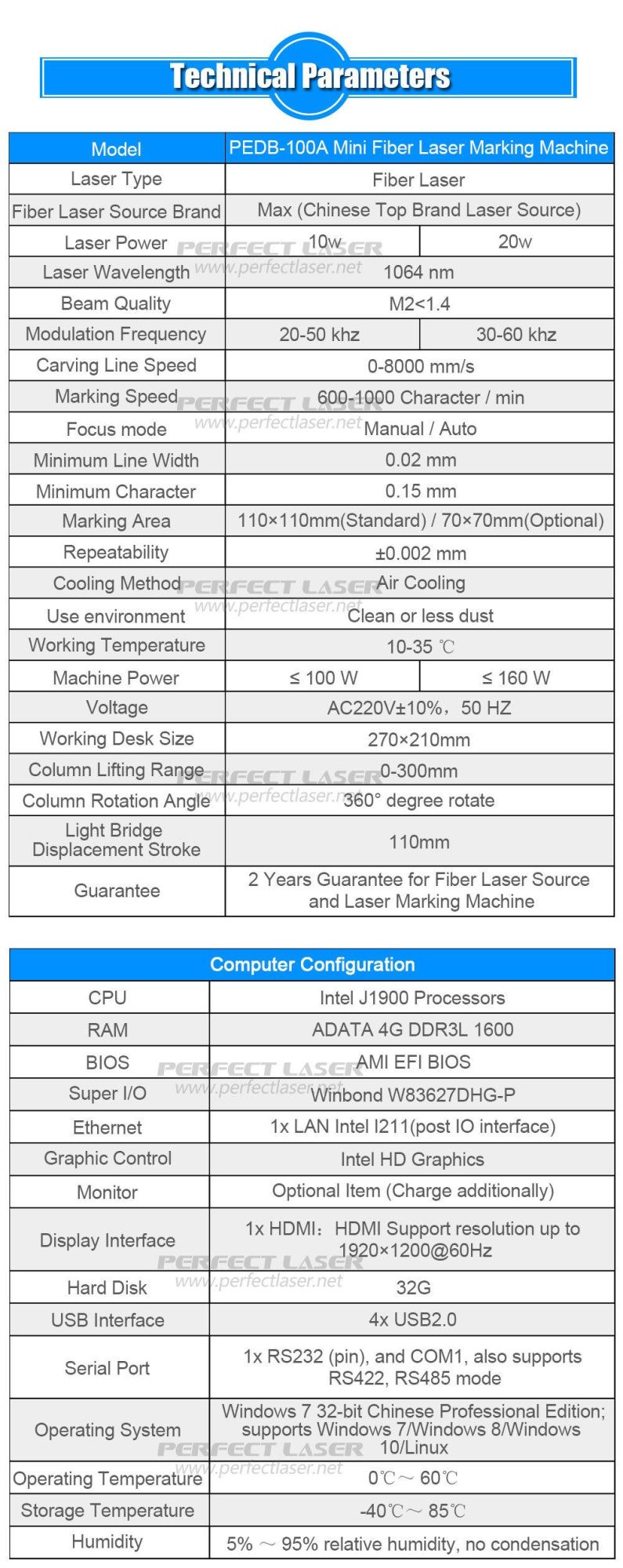

Fiber Laser Marking MachineLaser SoursePEDB-100A  10W  PEDB-100A  20WIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operation            PulsedPolarization     randomQ-switched operationOutput power adjustment range10%-100%Nominal average output power W10W20WCentral emission wavelength1060-1070 nmEmission Bandwidth (FWHM)<10 nmLong-term average power instability<5%Pulse width, (FWHM)      100 nsLaser switching ON time   180 μsecLaser switching OFF time180 μsecPulse Repetition Rate* kHz 20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2     <1.8Output fiber delivery length3mOperating voltage           220VMax. Power consumption600W 6>Working video link:

Perfect Laser-Fiber Laser Marking Machine-PEDB-100A:https://youtu.be/ypTJeF0nvWk













  --------------------------------------------------------------------------------------
