• Model NO.：UV-3,UV-5,UV-8
• Type：UV Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：3W,5W,8W
• Wavelength：Wavelength
• Power Consumption：<500W
• Cooling：Air-Cooling,Water-Cooling(8W)
• Spatial Mode：M2<1.3
• Beam Diameter：0.6mm
• Beam Divergence：<2mrad(Full Angle)
• Suitable Materials：Glass,Ceramic,HDPE,PVC,PC,ABS, etc
• Transport Package：Wooden Case
• Specification：980*800*1590
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. UV-3/UV-5/UV-8 Type UV Laser Marking Machine Marking Method Scanning Marking Laser Power 3W,5W,8W Wavelength Wavelength Power Consumption <500W Cooling Air-Cooling/Water-Cooling(8W) Spatial Mode M2<1.3 Beam Diameter 0.6mm Beam Divergence <2mrad(Full Angle) Suitable Materials Glass,Ceramic,HDPE,PVC,PC,ABS, etc Transport Package Wooden Case Specification 980*800*1590 Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

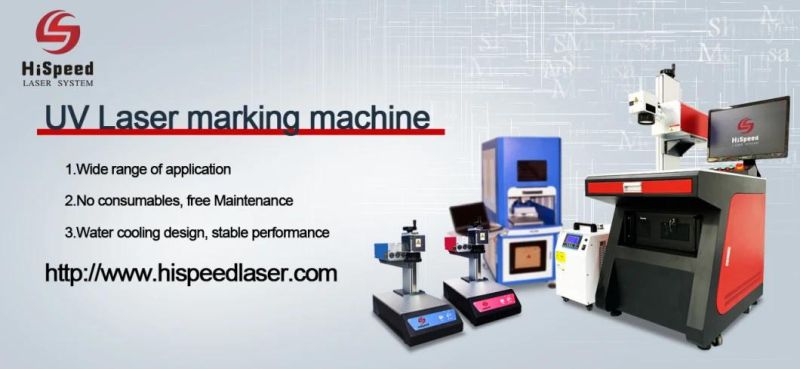

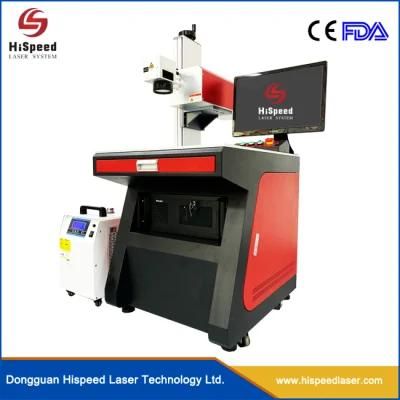

 Hispeed UV Fly Laser Marking Machine for KN95 Face Mask


>>>>>Equipment Description<<<<<<
HiSpeed UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard , chargers etc.

>>>>>>Machine Features<<<<<<

• Stable water-cooling,high precision temperature control
• Applied for hyperfine marking and engraving
• High quality permanent marking
• Environment friendly and safe Machinery
• Electro-optical conversion efficiency, long service life
•


>>>>>>Machine Details Show<<<<<<




>>>>>>Technical Parameters<<<<<<

Model	UV-3/UV-5/UV-8
Power	3W,5W,8W
Wavelength	355nm
Beam Quality	M2<1.3
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm
Pulse to pulse instabilit	<±3%rms
Spatial Mode	TEMoo(M2<1.3)
Beam Divergence	<2 mrad (full angle)
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

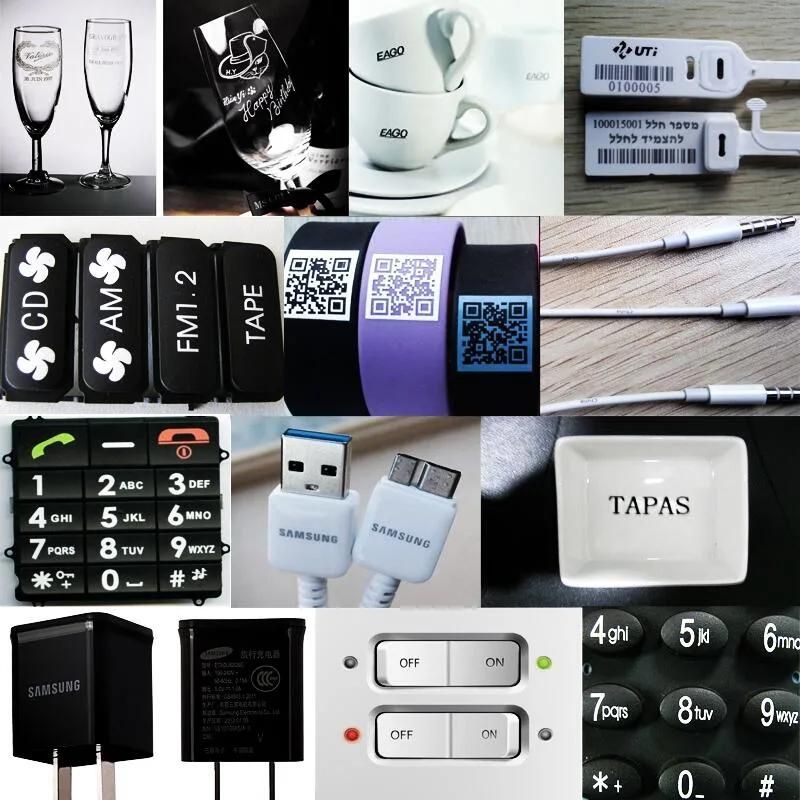

Applicable Materials:

Contact Us

Get Contact with us Now!

Please advise us following inforamtion to recommend you most suitable machine:

1.What kind of material do you want to mark? metal parts or non metal material?
2.What's the maximum working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
