Extruder Model
SJ65/33
SJ75/33
 SJ90/33
 SJ120/33
 SJ150/33
Max. Diameter(mm)
75
160
 250
 315
 630
Installation power(kw)
65
150
 200
 280
 420
Drawing speed(m/min)
0-12
0-8
 0-6
 0-4
 0-2
Total length(m)
28
36
 50
 66
 72
Output(kg/h)
80~120
80~150
 180-260
 300-400
 450-600



1) Different pe pipe producing line should be with different machines and extruders. So if you are interested on pe pipe making machine, you should check your market firstly, it is better if you can know every pipe diameter wall thickness, which will help us know how many mandrel together with mold we should supply you.




2)pe pipe producing line can be used to produce both PE pipes and PP pipes, PE pipes are widely used in electric, water drainage and water supply, and PE pipes is popular all over the world.



3)Except  ppr pipe producing line we also produce PVC pulverizer, PE color mixer,PVC profile line and PVC gutter extrusion, WPC board extrusion, PP/PE pipe extrusion machine, PP/PE film washing recycling line, PET bottle washing recycling line, PET bottle blowing machine and so on.



If you are interested on above, please check our web faygounion.en.made-in-china.com to confirm which is suitable for you.

Equipment list of PP PE pipe making machineCompulsory devices1Material charge1 set2SJ single screw extruder1 set3Pipe die head16-800mm, 1 set or several sets4Vacuum calibrating tank1 set or several sets5Water spraying cooling tank1 set or several sets62-3-4-6-8-10-12 caterpillars hauling off machine1 set7no dust-cutting machine or planetary cutting machine1 set8Pipe stacker-4000-6000mm length1 set9Electrical cabinet(ABB, Omron, RKC, Schneider etc)1 set10Spare parts1 setOptional Devices 1color mixer1 set2Plastic crusher1 set3Plastic shredding machine1 set4Industrial water chiller1 set5Air compressor1 set6Thermocontroller for die head1 set7Ink jet printer1 setPayment, delivery and after sales services1Payment terms30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable2Delivery time60 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable6Contact information

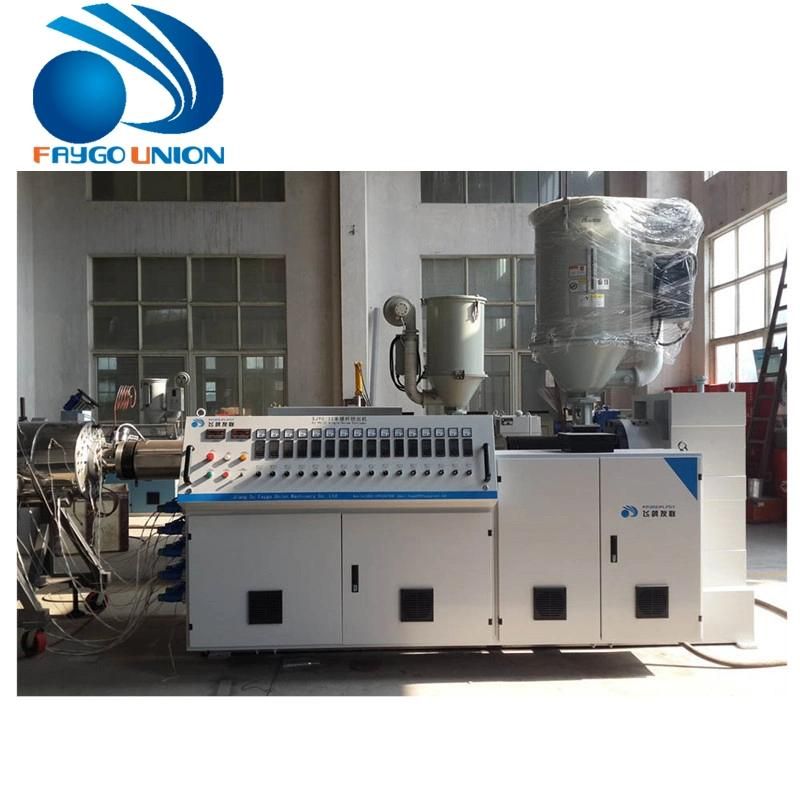

Our HDPE / PE Pipe Production Line has the features as below:

1. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller

2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.

3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.

If you need good  pipe production line, please  contact us now.

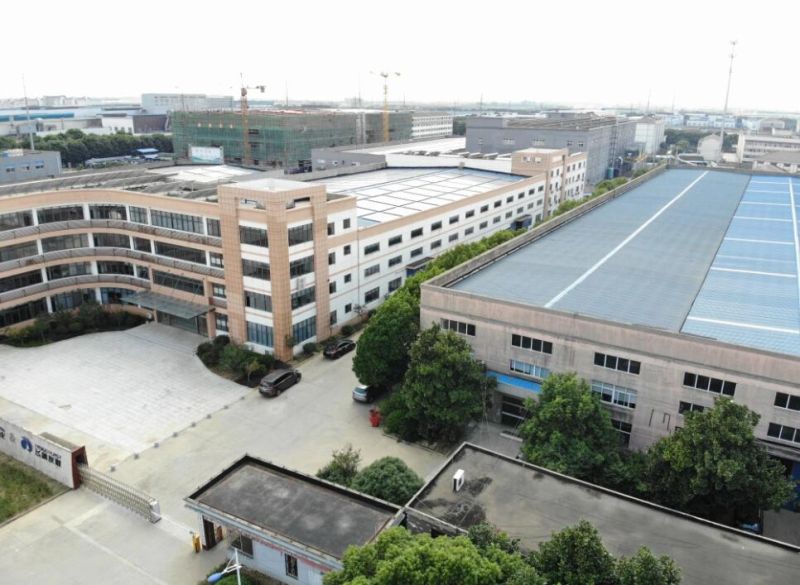

Company Show:




Jiangsu Faygo Plast Machine Co., Ltd. is a professional company which devote ourselves to the development, research and production of plastic machines. Faygo has high quality products, accurate delivery time,quick response to after-sales service and very competitive prices.

Main products include: Plastic pipe production lines ,plastic board and profile production lines,plastic granulation production lines,plastic washing and recycling lines, production line supporting machines etc.

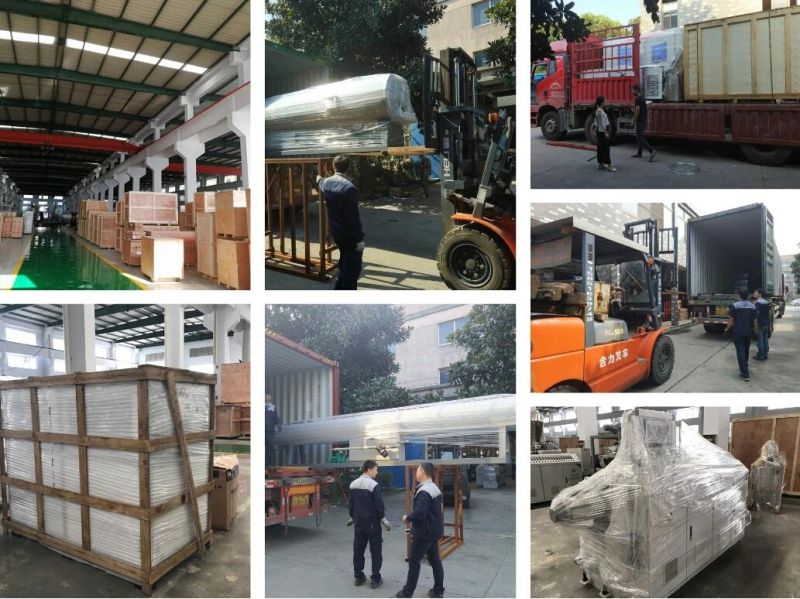

Shipping Show:
