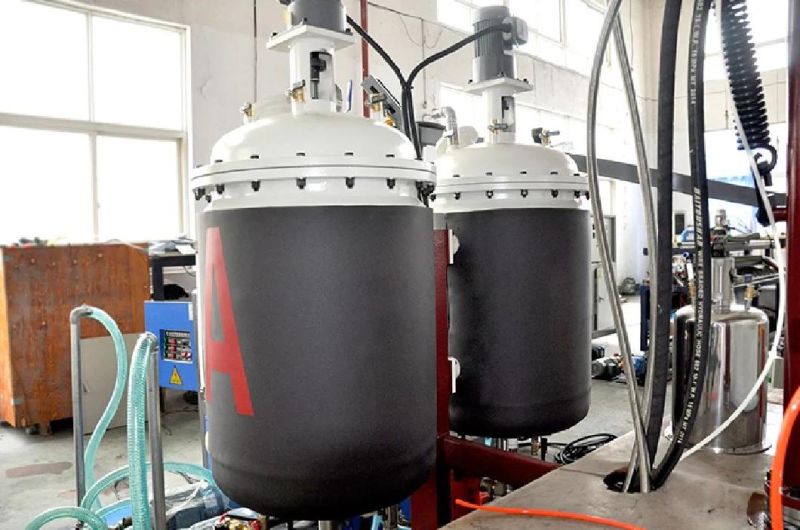

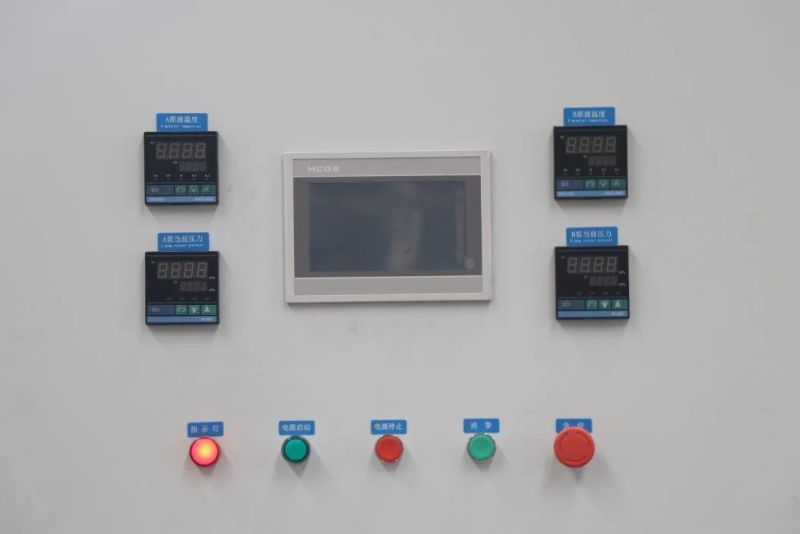

Injection Output:0.9-1600g/sTemperature control system:heat:2×3KwMaterial tank volume:30L-120LInput power:three-phase five-wire 380V 50HZMixing ratio range:100:50~150 for rigid foam making
100: 28~ 48 for flexible foam makingRated power:8KW-12KWDimensionMicro-scale:1000(L)*1750(W)*1800(H)mm Normal:4100(L)*1250(W)*2300(H)mmMixing head:2800-5000rpm, forced dynamic mixingColor( customizable):Cream-colored/orange/deep sea blueCompressed air needed:dry, oil free,  P:0.6-0.8MPa
Q:600NL/min(customer-owned)Weight:600Kg-1200KgNitrogen requirement:P:0.05MPa
Q:600NL/min(customer-owned)Raw material viscosity(22ºC):POL  ~3000CPS
ISO  ~1000MPasApplication:

PU foam machine is used for the production of all kinds of polyurethane rigid foam, polyurethane semi-rigid foam, polyurethane flexible(soft) foam, and polyurethane integral skin products.


Final products Examples:

PU pillows, steering wheels, bumpers, cutification, fast rebound, slow rebound, toys, fitness equipments, thermal insulation materials, bicycle cushions, car cushions, hard foaming, refrigerator materials, medical appliances, elastomer, soles, cup mat, etc.
