Basic Info.

Model NO. SGK160 PLC Siemens Electric Components Simens, Shneider, Omron Control PLC Automatic Transport Package Seaworthy Export Packing Specification SGS Trademark YS Origin Jiangsu, China HS Code 8477800 Production Capacity 50sets/Year

Product Description

SGK160 Full Automatic Double Pipe Belling Machine
1. It is full automatic
2. With PLC control system
3. Single heating oven
4. Pipe size:90-250mm
New type full automatic double pipe belling machine with high speed and low consumption

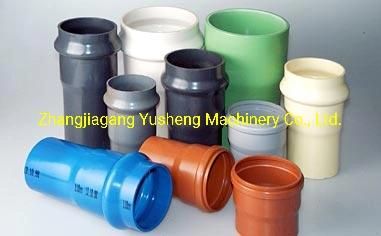

The plastic pipe belling machine is widely use to plastic pipe with different diameters and different materials. Its belling type have straight type and R type.

Features of automatic PVC pipe belling machine

1. Collocated with material-receiving pulling device as well as related process interfaces That are matched with the pipe extrusion line.

2. The machine can work together with the pipe extrusion line, or work alone.

3. Horizontally moves pipes, stable and accurate actions, and does not easily to Damage pipes.

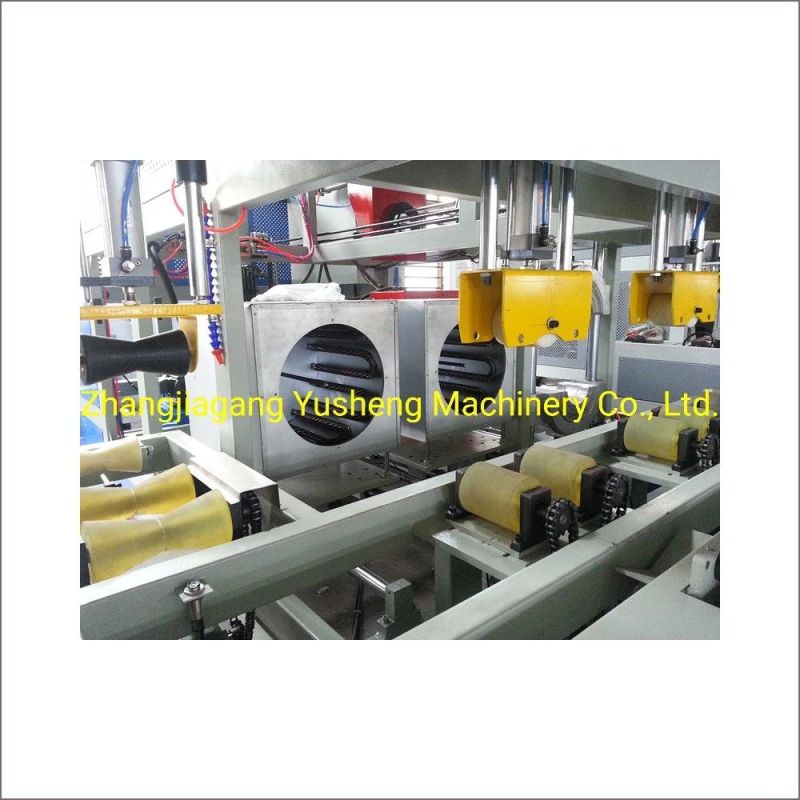

4. Adopts infrared ray heating way and each heating furnace is located within the central Heating furnace core.

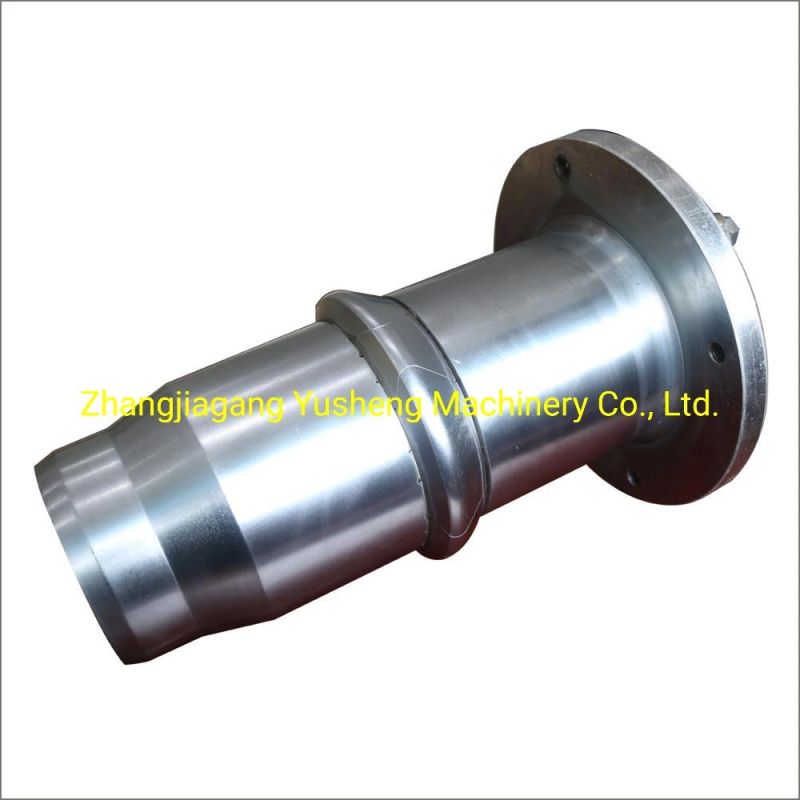

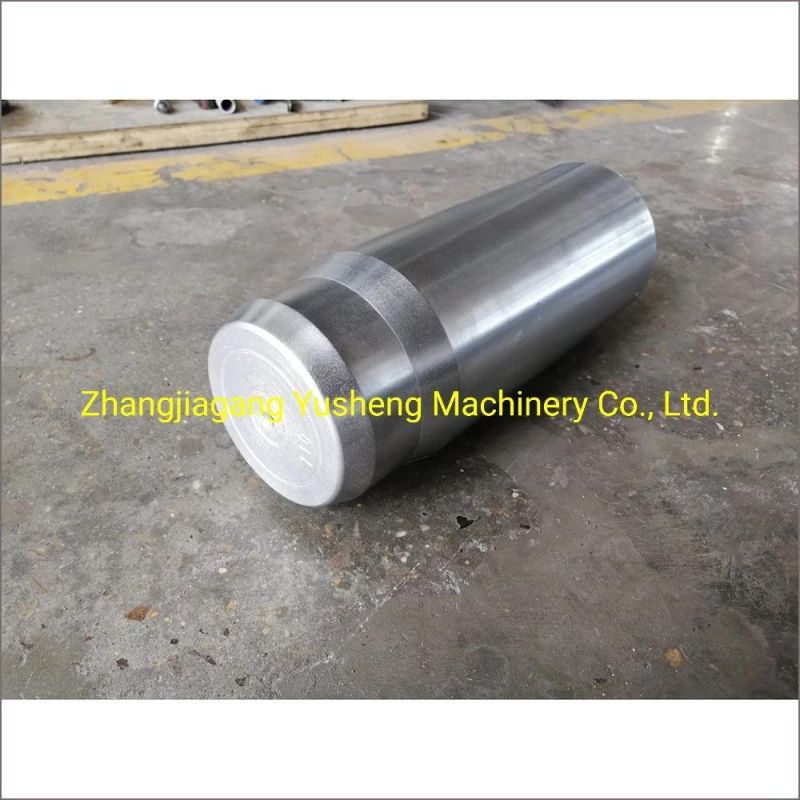

5. Adopts expansion tube head shaping method, with accurate dimension of nozzle.

6. Has conversion switches of expansion solvent plug (direct type) and expansion Flexibility sealing washer type plug (R type) in control panel, so it is very convenient To choose the way of tube expansion, with strong craft adaptability.

7. Main electric control components adopt imported famous brand, with stable and reliable System performance

Pipe range(OD)	Φ50-160mm
Pipe length	3-6m

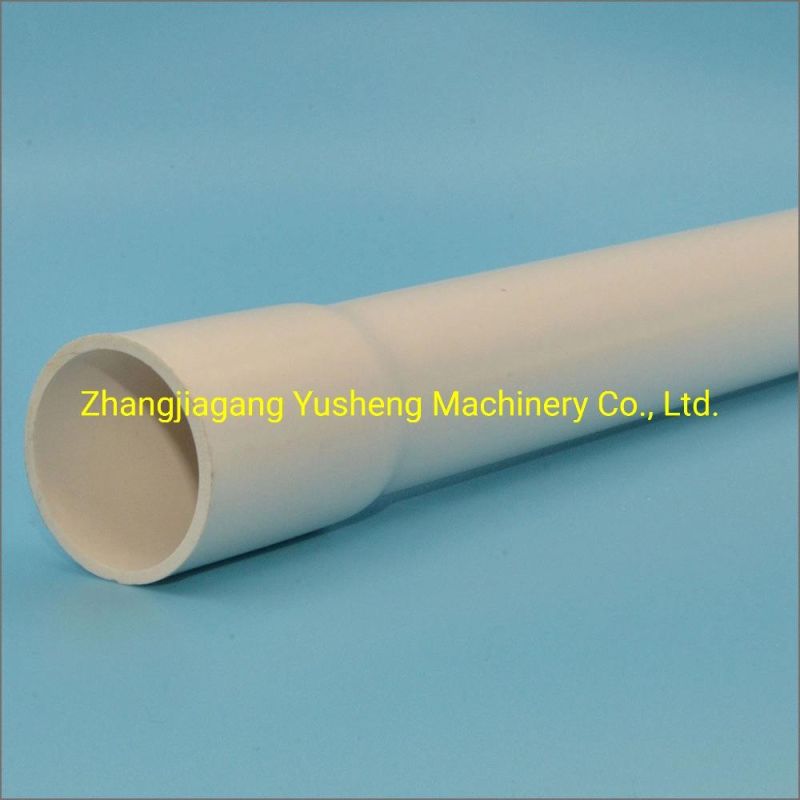

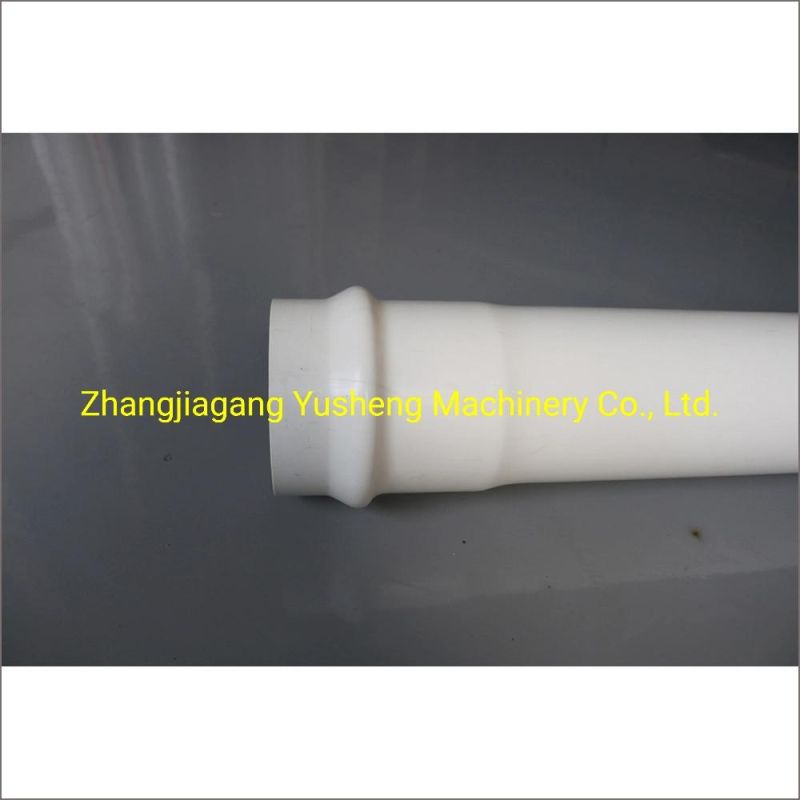

Socket type	R type(rubber ring) or U type(solvent)
Socket method	R type: die tool expand with vacuum calibration U type: die tool insert with vacuum calibration
Cooling method	Water cooling  (can make air cooling according to request)
Require cooling water pressure	0.2~0.3Mpa
Quantity of heating oven	2
Heating method	Electric heating, by stainless steel heating rods
Heating power	19.5kw
Total Power	25kw
highest temperature in heater	280ºC
Air pressure	0.4~0.6Mpa
Center height	1000mm±50mm  (or according to extruder)
Machine set weight	About 1.8T
Require oil label	46# wear resistance hydraulic oil
