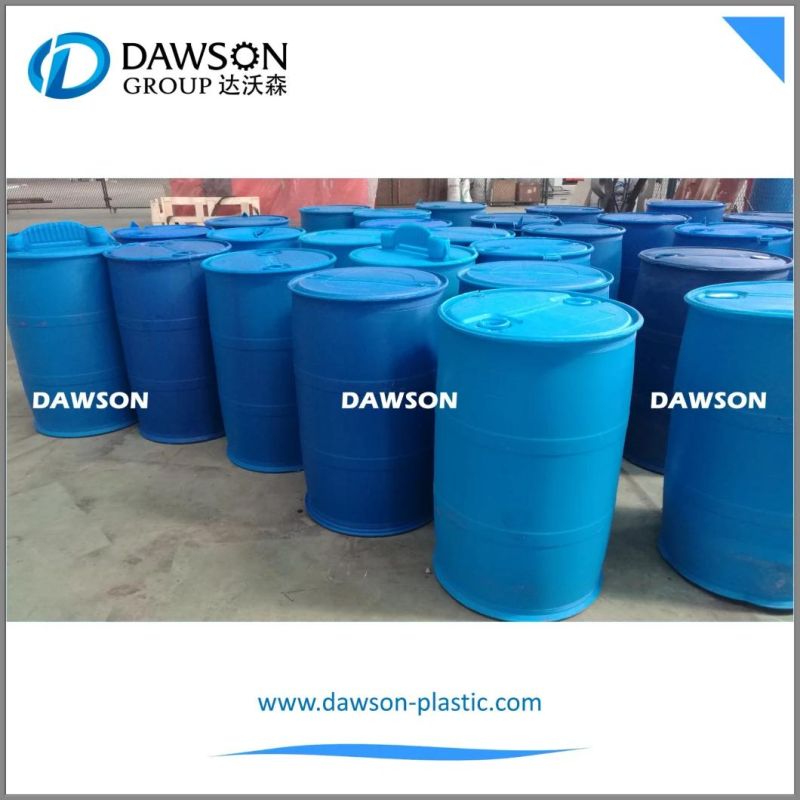

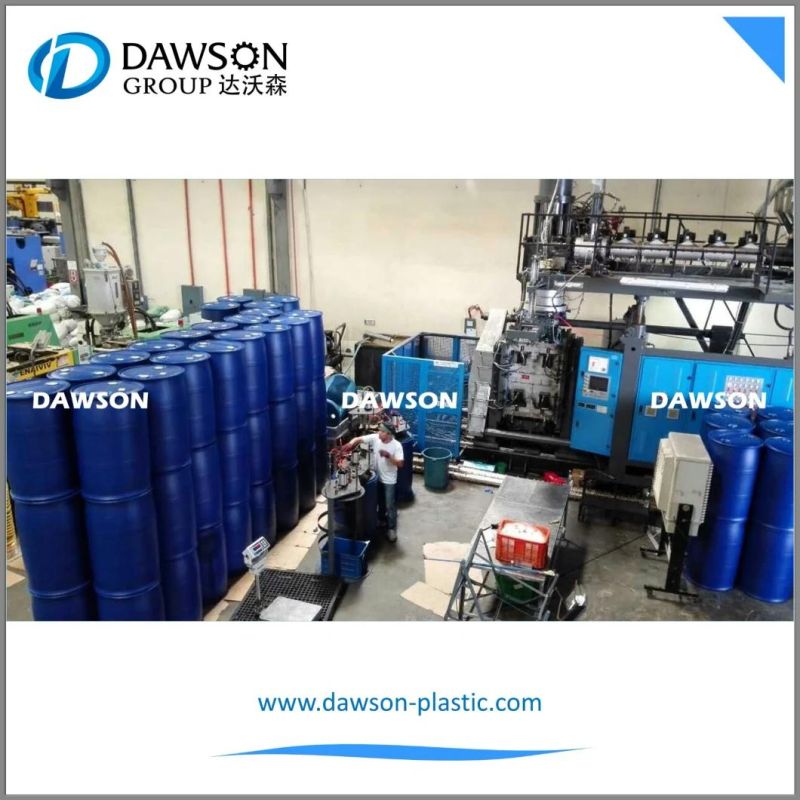

Plastic Barrel Bucket Making Machine Blow Moulding Equipment
Zhejiang Tengmei Industry and Trade Co., LtdBase Info
Description
Overview
Product Description
Basic parametersSuitable material PE Max volume 250L Output capacity 20~25 pcs/h Size 8.6×3.8×5.8 (M) Weight 38 T system Specification Parameters Note Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature Reducer Hard finishing,High intension,Low noise reducer Screw ∮120mm,L/D ratio 28, 38CrMoALA Cooling system available Plasticization 320~400 Kg/H HDPE Heating Zone 5~6 Aluminum Heater Automatic heating Heating power 36KW/H Extrusion Motor Motor 132kw (380V,50HZ) Cooling Fan 5~6zone Automatic cooling Extrusion system Summarize High-grade alloy steel, center feeding Die head number 1 Center distance of die heads / Max die mouth ∮600mm Heating zone 6 Stainless steel heating cycle Clamping system Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system Clamping force 850~900KN Template distance 850~1850mm Max mould size 1200X1800mm Mould material High grade 50# steel Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system Operate interface Touch screen, automatic self-diagnose alarm system Temperature control Automatic temperature control module Movement control Japanese Mitsubishi, Chinese/English
Version Electric protection Ampere overload, electric short circuit self-protection function Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient Oil pump motor Three phase asynchronous motor (380V/220V,50/60HZ) 22kw Oil pump Imported double pump Valves Imported oil pump valves and connections Oil pipes Double layer overpressure resistant System pressure 60Kg/cm² Cooling system Separate water cooling cycle, oil cooler cooling system Pneumatic system Summarize Taiwan AIRTAC pneumatic system Air pressure 1Mpa Air displacement 1.8M3/min Electromagnetic valve AIRTAC Cooling system Summarize Separate cooling system of mould, barrel and oil system Cooling medium Water Water flow 18t/h Water pressure 0.3-0.6MPa
High quality mould
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
