• Capacity：4.16 Million Pieces Per Month
• OEM Service：Avialable
• Grade：a+,a,a-,B etc.
• Cutting Stones：Granite, Marble, Quartz,Limestone, Sandstone,
• Diameter of Saw Blade：300-3500mm
• Core Thickness：2.2-2.4
• Height：8,10,15mm
• Transport Package：Cartons and Wooden Boxes
• Specification：24*10*15mm
• Trademark：LINSING
• Origin：China
• Production Capacity：500000piece,Day

Basic Info.

Capacity 4.16 Million Pieces Per Month OEM Service Avialable Grade a+,a,a-,B etc. Cutting Stones Granite, Marble, Quartz,Limestone, Sandstone, Diameter of Saw Blade 300-3500mm Core Thickness 2.2-2.4 Height 8/10/15mm Transport Package Cartons and Wooden Boxes Specification 24*10*15mm Trademark LINSING Origin China Production Capacity 500000piece/Day

Product Description

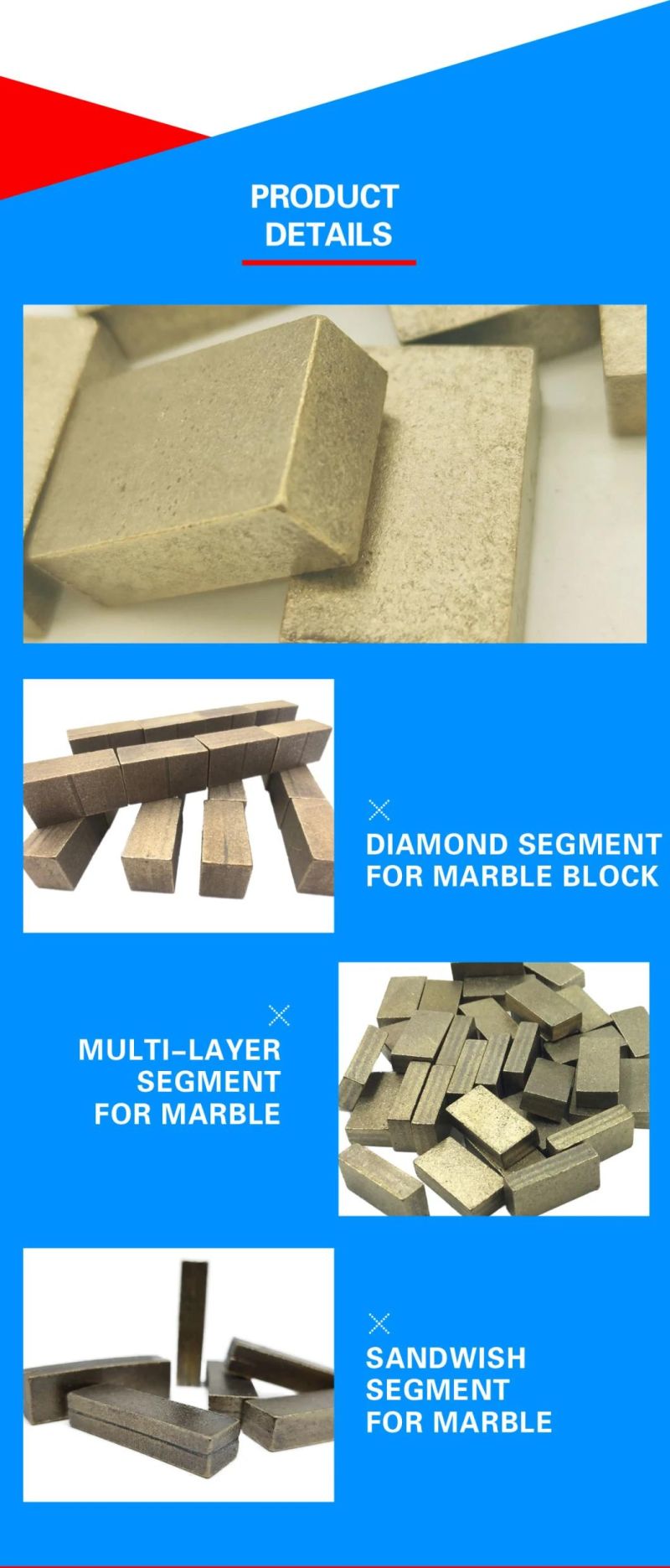

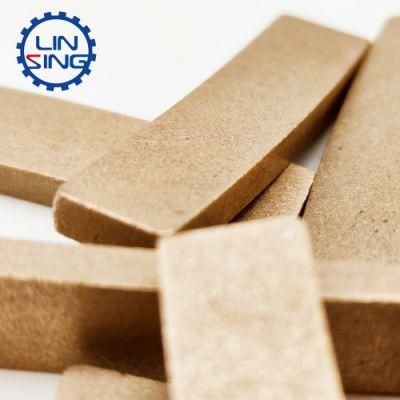

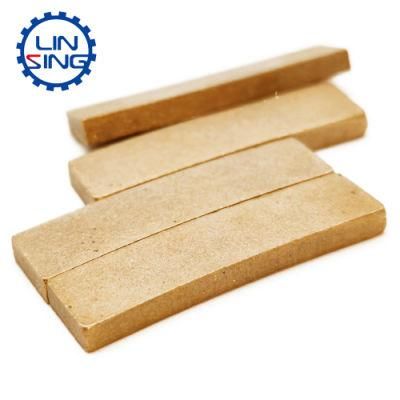

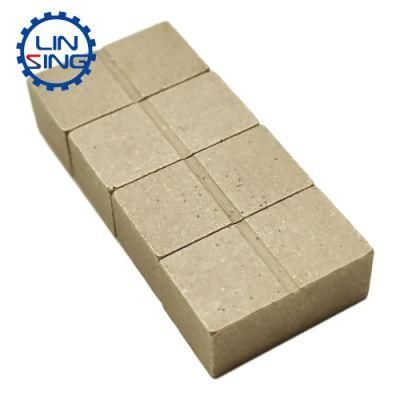

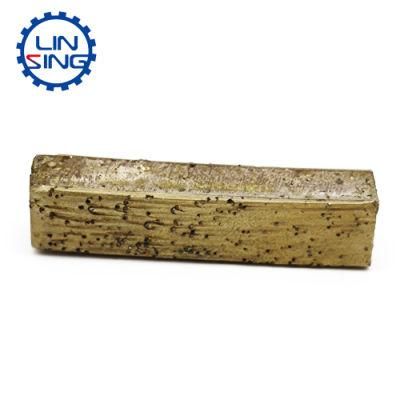

LINSING marble segments features:

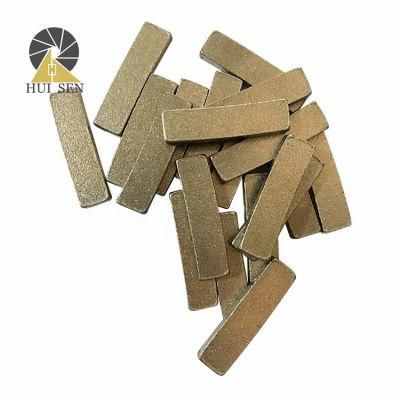

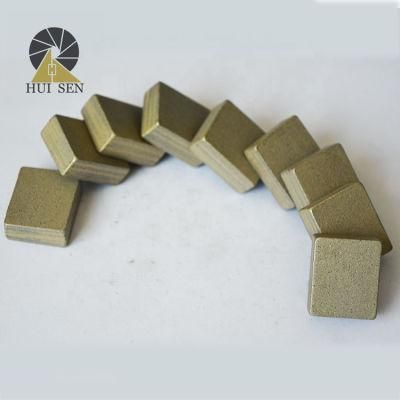

Marble segment is a diamond metal bond saw tips used on circular saw blade to cut marble. it is made of synthetic diamond plus different matrix or metal bonds in different ratio of metal powders. metal bond and diamond density will be somehow different as per different color and hardness of stone and stone cutting machine.

1. Cutting in high speed without chipping.
2. Long life span and stable cutting performance.
3. smooth cutting, flat surface and even size cutting result.
4. Good segment shape easy for diamond opening
5. Strict product quality inspection processes
6. High cost-effective

1.The diamond segments has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.

3.Stable cutting, narrow cutting gap, stone waste reduction.

2.Good cutting result: smooth cutting, flat surface and even size.

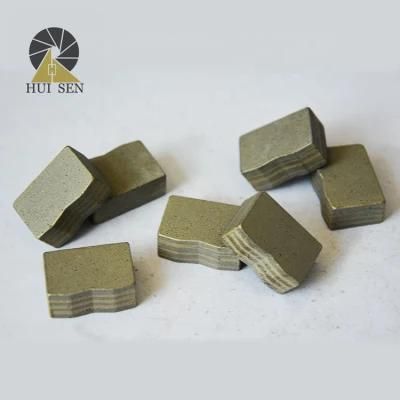

4.M-shape segment is easy for diamond opening.

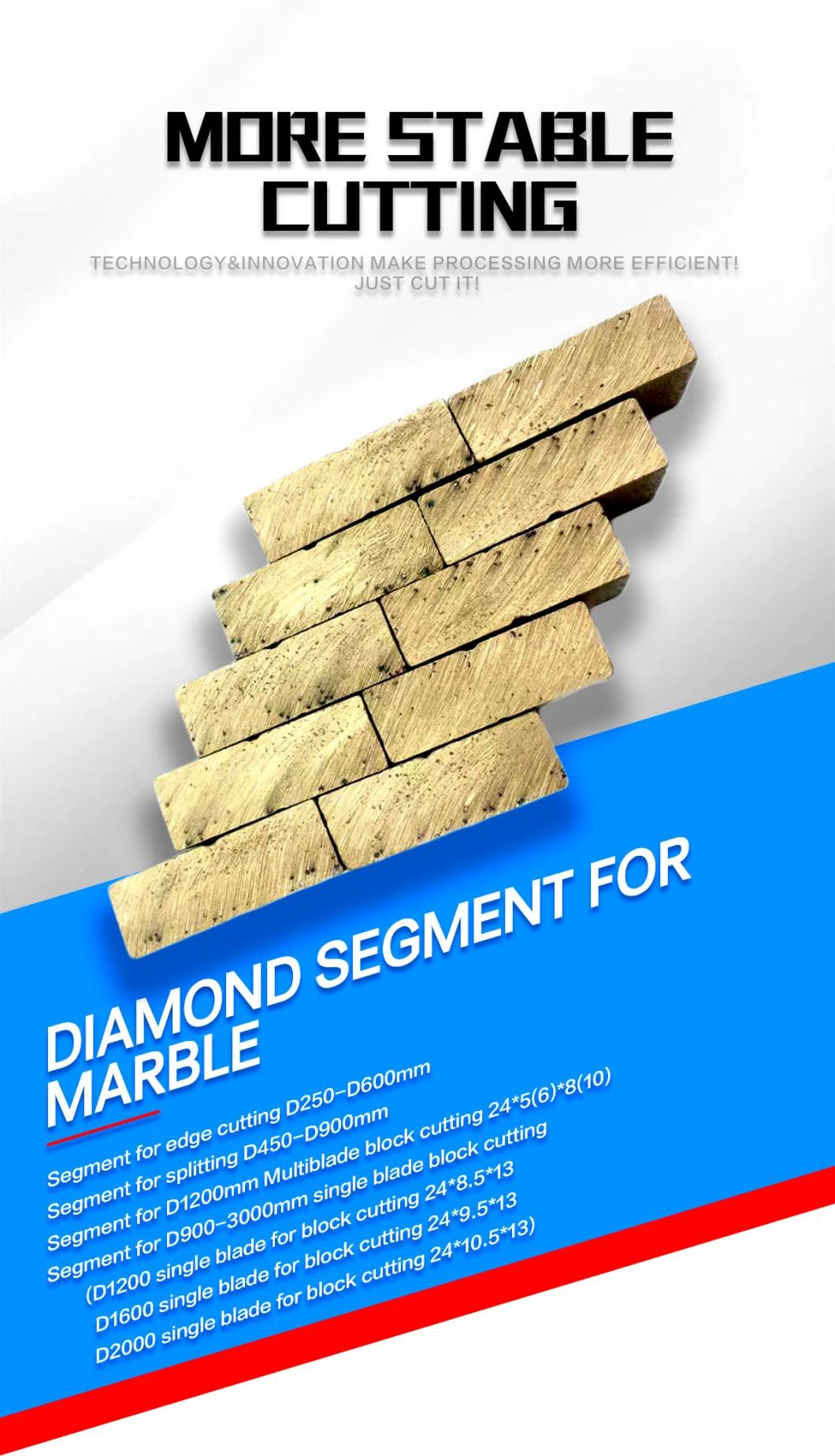

Product application

Segment for edge cutting D250-D600mm
Segment for splitting D450-D900mm
Segment for D1200mm Multiblade block cutting 245(6)8(10)
Segment for D900-3000mm single blade block cutting

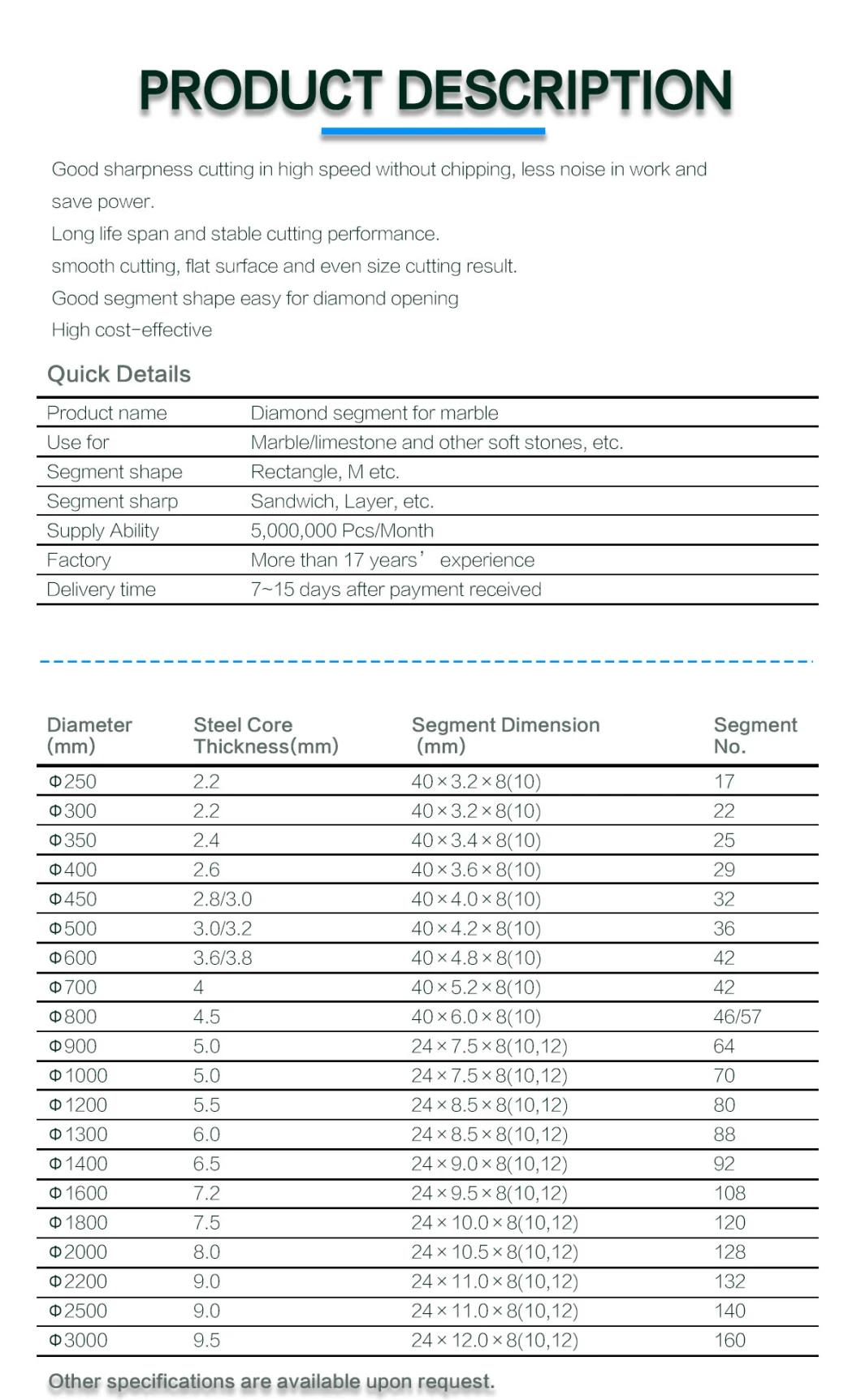

Product dimension

Diameter (mm)	Steel Core Thickness(mm)	Segment Dimension (mm)	Segment No.
Φ300	2.2	40×3.2×8(10)	22
Φ350	2.4	40×3.4×8(10)	25
Φ400	2.6	40×3.6×8(10)	29
Φ450	2.8/3.0	40×4.0×8(10)	32
Φ500	3.0/3.2	40×4.2×8(10)	36
Φ600	3.6/3.8	40×4.8×8(10)	42
Φ700	4	40×5.2×8(10)	42
Φ800	4.5	40×6.0×8(10)	46/57
Φ900	5.0	24×7.5×8(10,12)	64
Φ1000	5.0	24×7.5×8(10,12)	70
Φ1200	5.5	24×8.5×8(10,12)	80
Φ1300	6.0	24×8.5×8(10,12)	88
Φ1400	6.5	24×9.0×8(10,12)	92
Φ1600	7.2	24×9.5×8(10,12)	108
Φ1800	7.5	24×10.0×8(10,12)	120
Φ2000	8.0	24×10.5×8(10,12)	128
Φ2200	9.0	24×11.0×8(10,12)	132
Φ2500	9.0	24×11.0×8(10,12)	140
Φ3000	9.5	24×12.0×8(10,12)	160

Other specifications are available upon request.
