Basic Info.

Customized Customized Condition New Sheet Thickness 0.3-30mm Sheet Width Max 2500mm Transport Package Standard Export Packing Specification Depend on request Trademark Midtech Origin China HS Code 84778000 Production Capacity 50 Sets/Year

Product Description

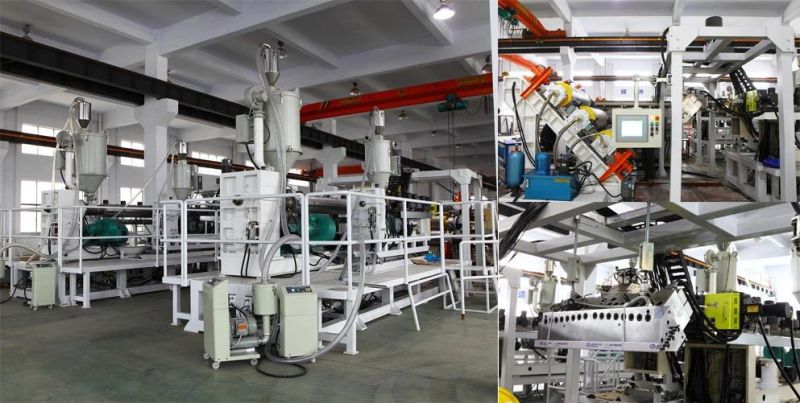

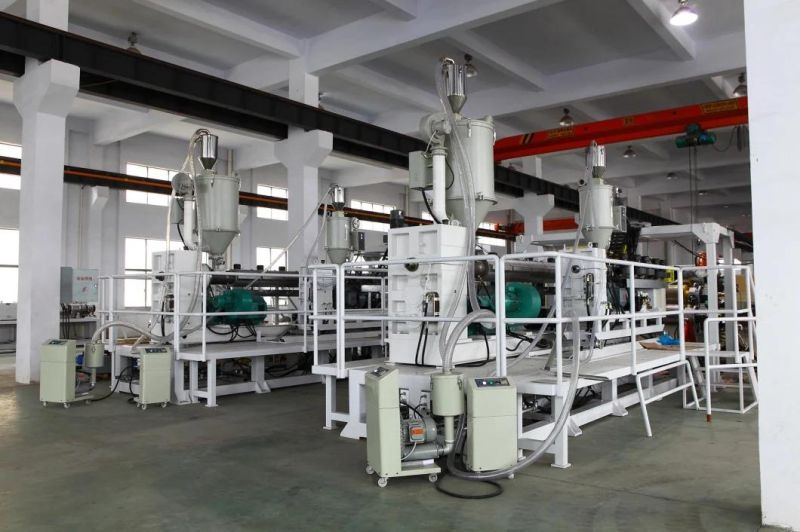

PE/PP/ABS/HIPS Plastic Sheet/Board Extrusion Production Machine Line

 Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm

Usual sheet thickness:
0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm


Application of Boards:

PP Board:  Widely used in chemical industry, food industry, anticorrosive, purification industry, environmental protection equipment manufacturing industry, etc.
PE Board:  Widely used in chemical industry, electric power and other industries. HDPE board can also be used as engineering plastics used in machinery, chemical equipment, etc.
ABS Board: Widely used in home appliances, electronics, packaging, medical equipment and other fields.
PS Board: Widely used in TV panel, Refrigerator panel and other high standard field.
PVC Board: Rigid pvc board is widely used in chemical industry, petrol, decoration board.
SPVC sheet: Widely used in indoor decoration, transparent sheet.

Main configurations:


Feeder	• To feed material into extruder;
Extruder	• World famous brand electrical component such as Siemens, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.

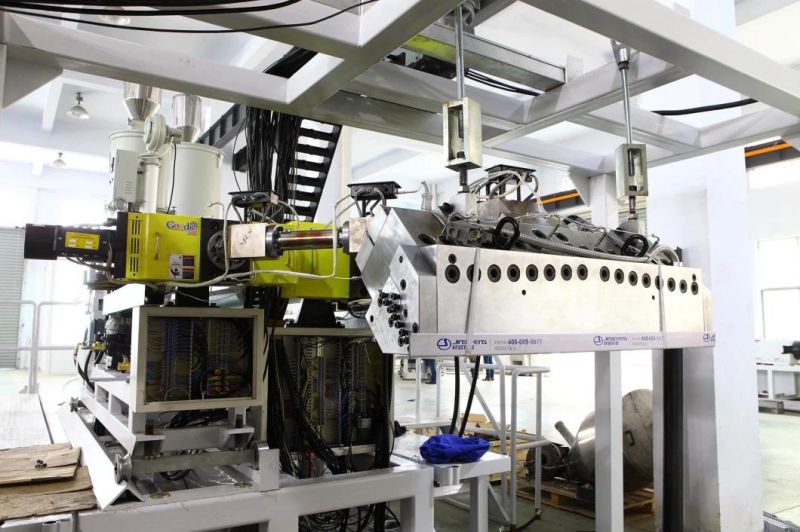

Flat die	• Coat hanger type • 5CrNiMo steel material • Apply to sheet, board

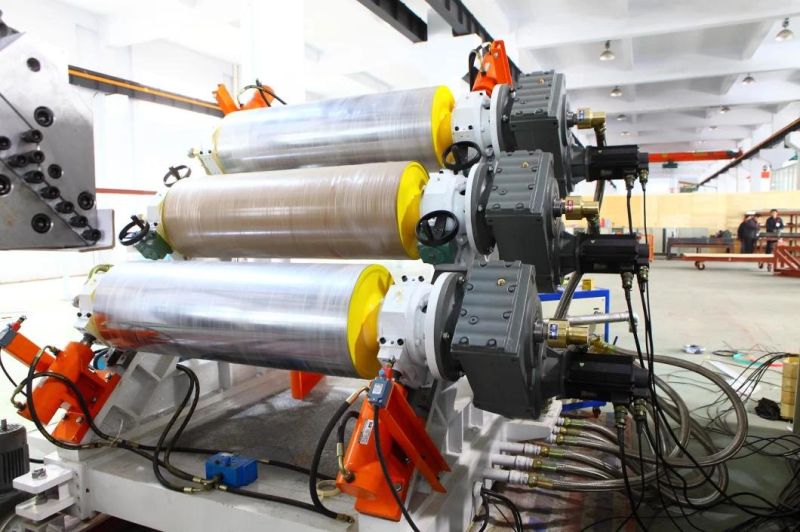

Three roller Calender	• Compacting driving by hydraulic • Rollers are driven separately and speed control by frequency inverter or servo motor • Temperature controller is include • Independent operation panel for easy operation • Equipped with lamination device

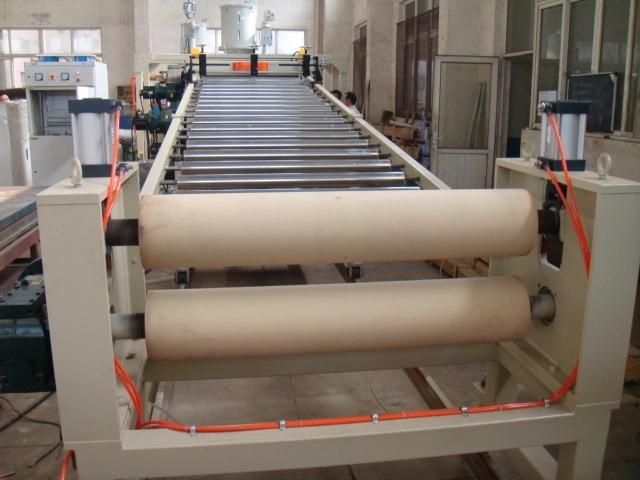

Cooling bracket and haul off	•Multi-group cooling rollers; •Speed control by frequency inverter • Compacting driving by pneumatic • With adopts wear-resisting rubber roller

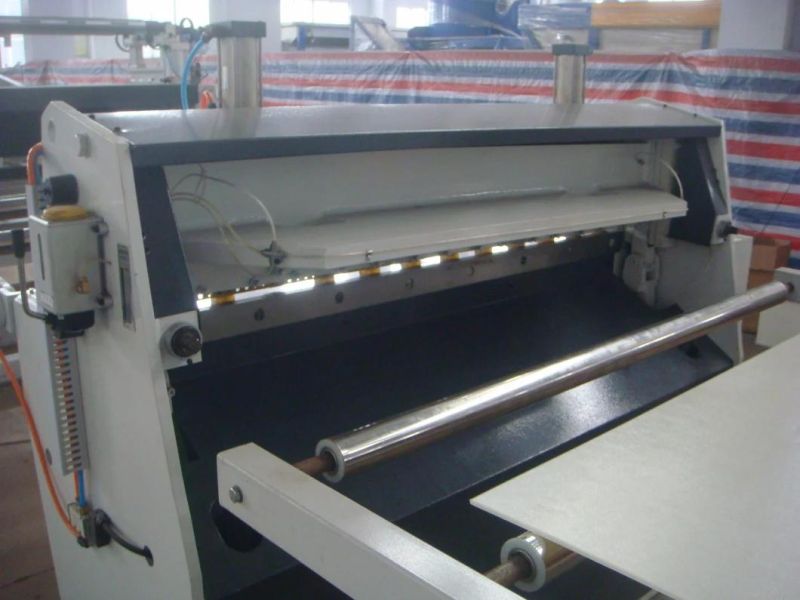

Cutting system	• Plate shearer ensuing flat and chip free cutting
Stacker	• Stainless steel 304 as touching material

Specifications:


Type	SK-150	SK-170	SK-180	SK-80
Raw Material	PP,PE,ABS,PC	PP,PE,ABS,PC	PP,PE,ABS,PC	PVC
Width	1220-1500mm	1200-1500mm	1500-2000mm	1220mm
Thickness	3-30mm	3-30mm	3-30mm	3-30
Extruder Type	SJ150x35	SJ170x35	SJ180x35	SJSZ80x156
Outout	500kg/h	700Kg/h	800kg	450kg/h

Why choose us
♦ Specified screw design and material application for high percentage CaCo3
♦ Speedy cooling forming die supports the production line with faster linear speed and higher efficiency;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
♦ Ability to provide the customized plastic extrusion solutions.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines:18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru......
