Basic Info.

Model NO. PPD-SFR500 HS Code 84778000 Production Capacity 10units/Month

Product Description

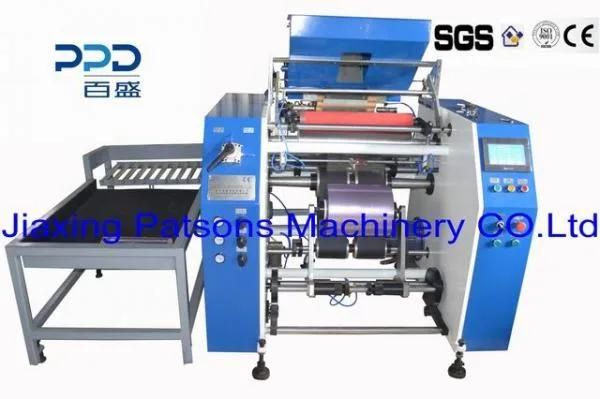

Fully Automatic Special Film Rewinding Machine is complied with Imported PLC+LCD+Inverter control for simple operation,it is less skilled operator requires.It suits for both blown film and casting film for both PVC and PE cling film,with special pressing roller to drive off the air inside of the rewinding roll,the rewinding roll becomes transparency at soonest.One operator can run 3 machines at the same time,it is labor cost greatly reduced.



Main Specification:
Maximum width of mother roll:	500mm
Total width of mother reel:	550mm
Maximum OD of mother roll:	500mm
ID of mother roll:	76mm
Rewinding roll total width:	550mm
Max OD of rewinding roll:	180mm
ID of rewinding roll:	25/32/38/50/76mm
Speed:	Max 1550rpm/min
Total power:	4kw
Volt:	110/220/240/380/415/450v,1&3ph
Pneumatic required:	0.2Mpa
Weigth:	1200KG
