KQD70B 15M Portable Down The Hole Mini Drilling Rig

Zhejiang Feida Machinery Co., Ltd.

Base Info

Description

Remark(mm)(m)(MPa)(m3/min)KQD7060--80≥150.5-0.7≥3.53kwKQD100B80--100≥200.5-0.7≥64kwKQD 10080--100≥200.5-0.7≥64kwKQD 12080-100≥200.5-0.7≥65.5kwKQD145B90-130≥500.7-1.4≥127.5kwKQD150B90-130≥500.7-1.4≥127.5kwKQD16590-150≥500.7-1.4≥1511kw Specifications of drilling machine Hole dia.(mm)60-80 Hole depth(m)≥15 Rotation speed(rpm)0-125Working pressure(MPa)0.5~0.7Drill rod spec.(mm)  40x1000Air consumption(m^3/min)≥3.5  Lift power(N) 4000Electrical motor(3KW) Specification of screw compressor Working pressure(MPa)0.6Air delivery (m3/min.)4.5Electrical motor power (kw)22Dimensions (L*W*H) (mm)1600*820*1200Weight (kg)630KQD70B 15M Portable Down The Hole Mini Drilling Rig

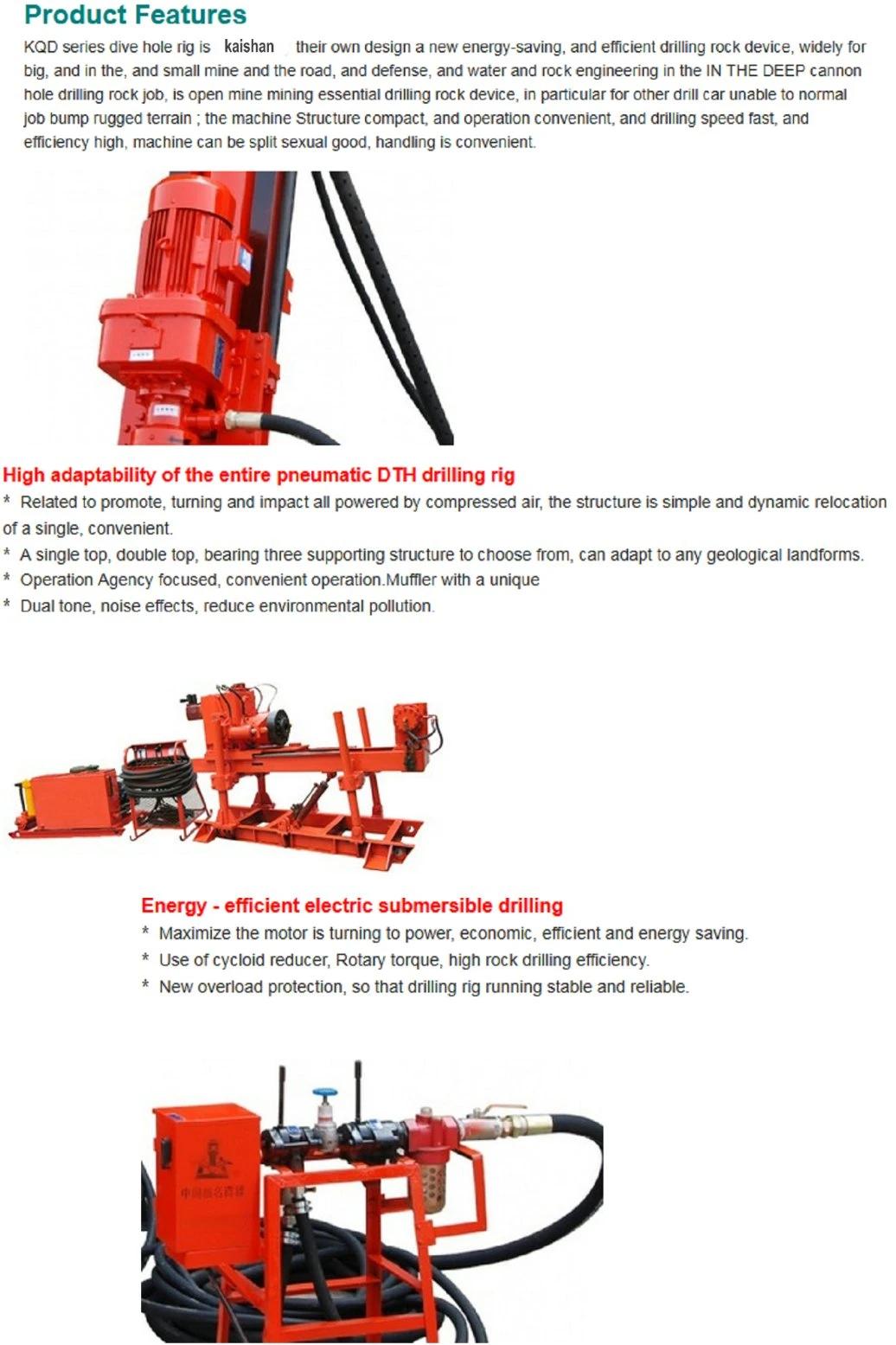

Main Elements show:
KQD70B 15M Portable Down The Hole Mini Drilling Rig
Hammer's specification:Weight11.5kgOverall Length777mmOutside Diamater57mmOperating Air pressure0.49-0.63MpaImpact Rate≥14.5HzAir Consumption≤58L/SBackhead Thread(Square) 42*10*1.5Dia of the holeØ60-70mm

Matching Drill rod :  Ø 42 /60mm *1m

Matching Drill Bit:    Low wind pressure drill bit (60-100mm)

Matched Portable  Screw Air COmpressor

ModelLGJY-4.5/6Capacity (m³/min)4.5Working Pressure (Mpa)0.6MpaWeight (kg) Dimension (mm)

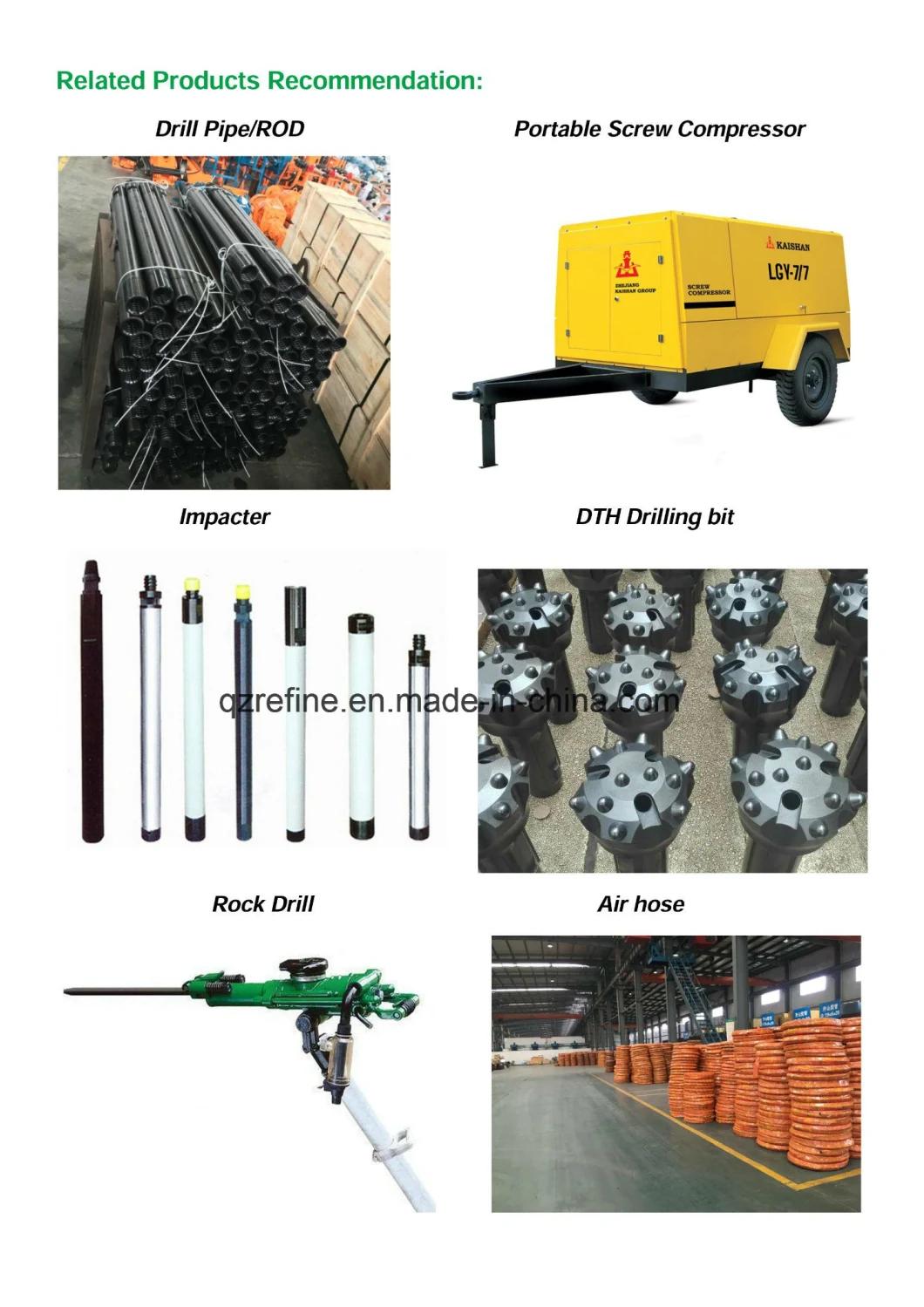

You may also interested in below items:

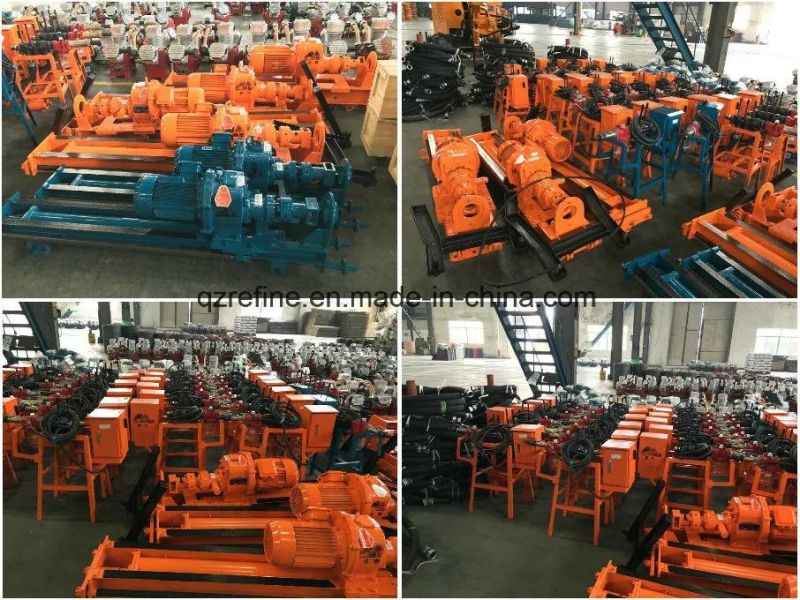

KQD70B 15M Portable Down The Hole Mini Drilling Rig

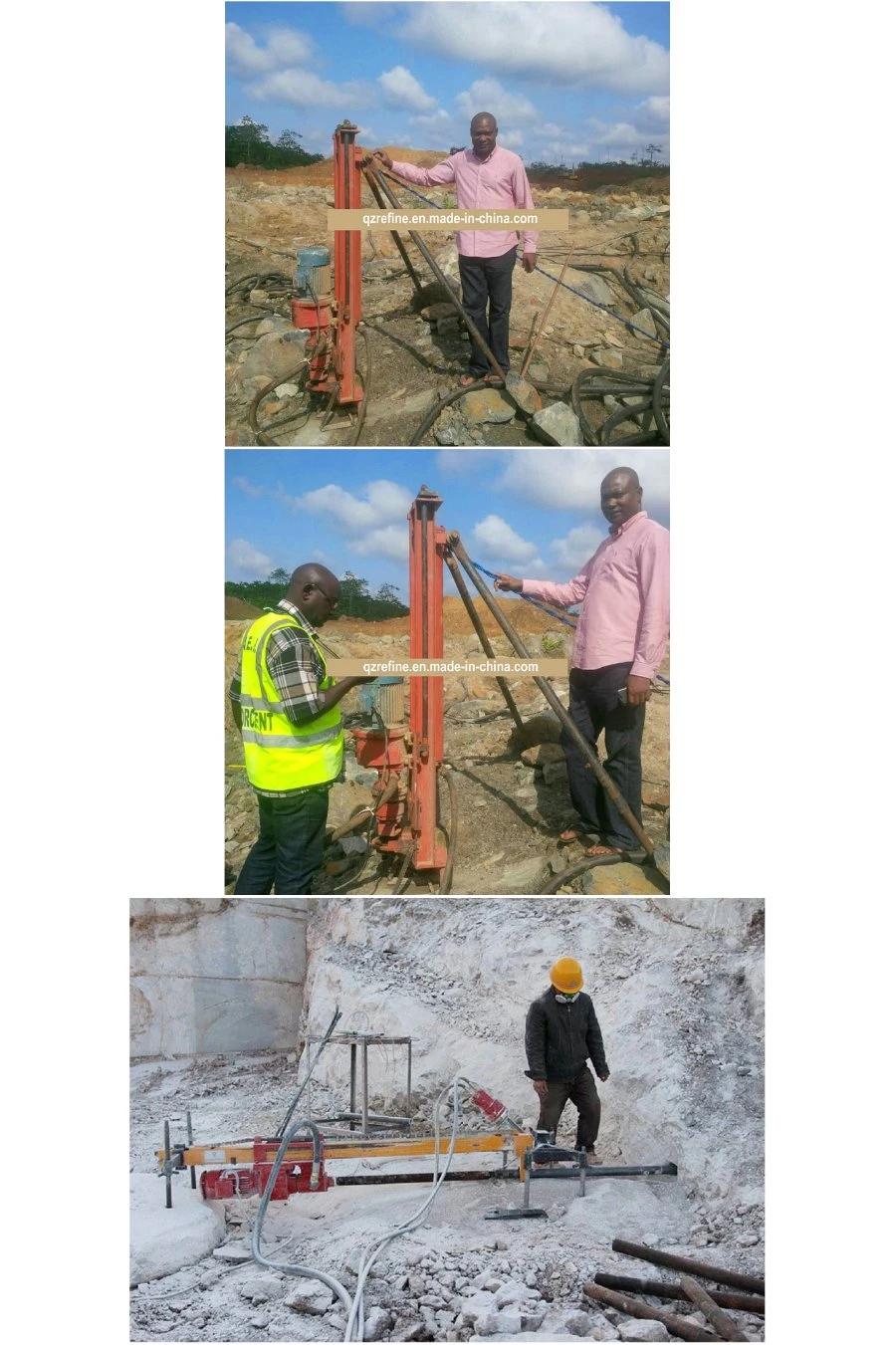

Applicated in our client's project:
KQD70B 15M Portable Down The Hole Mini Drilling Rig
About KAISHAN GROUP:
KQD70B 15M Portable Down The Hole Mini Drilling Rig
FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
