Overview Product Description



High quality HDPE drums making machine
Servo motor energy saving blow molding machine
HDPE jerry cans blow molding machine

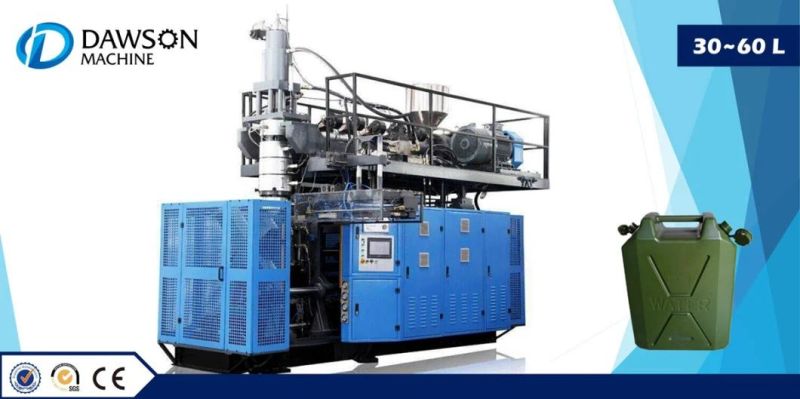

20L to 60L HDPE jerry can blowing moulding machine
 Detailed Photos



Product Parameters



Extrusion blow moulding machine ABLD90Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so onMax volumeABLD90 max: 60LOutput capacity40~50pcs/hSize4.6×2.4×3.8(M)Weight12TsystemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw∮90mm,L/D ratio 25, 38CrMoALACooling system availablePlasticization100 ~ 130Kg/HHDPEHeating Zone4 Aluminum HeaterAutomatic heatingHeating power15~18KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) Cooling Fan4zoneAutomatic coolingExtrusion systemSummarizeHigh-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth∮280~340mm Heating zone4 Stainless steel heating cycle Heating power5~7KW Clamping systemSummarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system Clamping force210~260KN Template distance450~1000mm Max mould size700X950mm Mould materialHigh grade 50# steel Electric systemSummarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
systemOperate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module Movement controlJapanese Mitsubishi, Chinese/English
Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V/220V,50/60HZ) Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.6Mpa Air displacement0.8M3/min Electromagnetic valveTaiwan AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow90L/min Water pressure0.3-0.6MPa

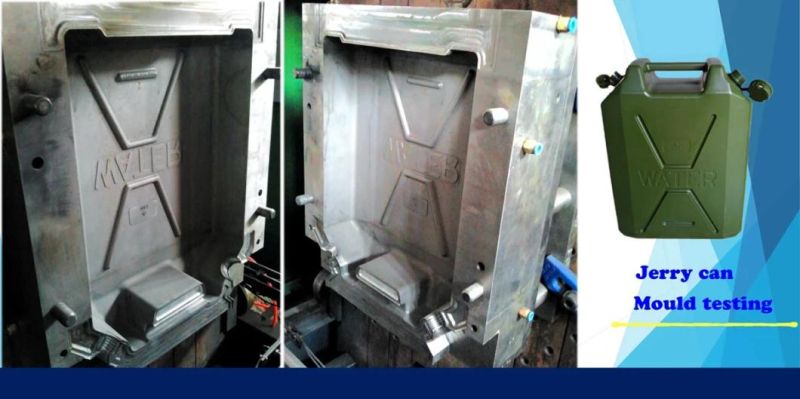

 High quality mould

Company ProfileAfter Sales Service





FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

 Plastic machines we provide ....
Extrusion Blow Molding Machine

Injection Blow Molding Machine

PET Blow Molding Machine

Injeciton Molding Machine

Injection Stretch Blow Molding Machine
 Applictions ....
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.

Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.

House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.

Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.

Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.

Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.

Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
