Basic Info.

Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Pipe Diameter 960-1680mm Raw Material PE Producing Method Vacuum Calibrating Method Voltage 380V 50Hz Transport Package Standard Export Packing Trademark HSD Origin Qingdao, China HS Code 8477209000 Production Capacity 800-1200kg/H

Product Description

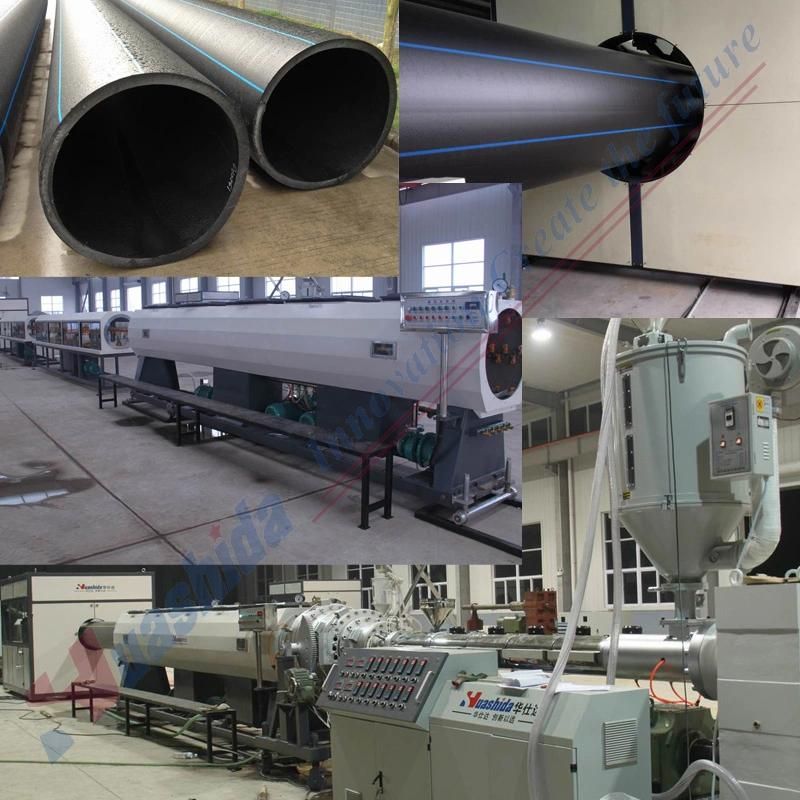

PE Insulation Jacket Pipe Extrusion Machine




PE-960/1680 Vacuum calibrating method Pre-insulated pipe extrusion line designed by absorting the tube extrusion developed technology from German and improved by Qingdao Huashida Machinery Co., Ltd.
The line is an integration design compossed byextrsion, vacuum calibrating, cooling, pulling, cutting, stacker, Great performance in automatic operation, extrusion capacity, stady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.

Vacuum calibrating method pre-insulated pipe outside casing extrsuion line is the most advanced and popular machinery in the world.


PE/PPR pipe production line is spefialized for PE/PP/ABS...Material and make pipe. The extruder equipped with barrel unit and mixing structure, we use special screw and barrel for PE/PPR/ABS...Material, special design for shaping and cooling system, the vacuum shaping tank can ensure the stability of size and roundness, speed controllers are used in extruder, haul-off to offer stability and precision. The whole line can adopt PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another co-extruder used for extruding color line.

Style	PE-960/1680
Main extruder	SJ-150/33
Pipe diameter	960-1680mm
Capacity	800-1200kg/h
Installed power	440kw
Length	48m

Our products mainly include
Single Screw Extruder & Twins Conical Extruder
Vacuum Calibrating pre-insulated pipe outside HDPE casing Extrusion line
20-630mm Single/multi layer HDPE Pipe Extrusion Line
200-3000mm HDPE Spiral Corrugated Pipe Extrusion Line
Fiberglass reinforced PP-R Pipe Co-extrusion line
Plastic Sheet/ Plate Single/multi layer Extrusion Line
PVC Fiber & Steel Wire Reinforced Hose Line
Hand Extruder / Electro-fusion Welder
Heat Shrinkable sleeves (Normal style & Fiber Reinforced style)
Electro-fusion Girth Welding joint closure & Electro-fusion welded belt
