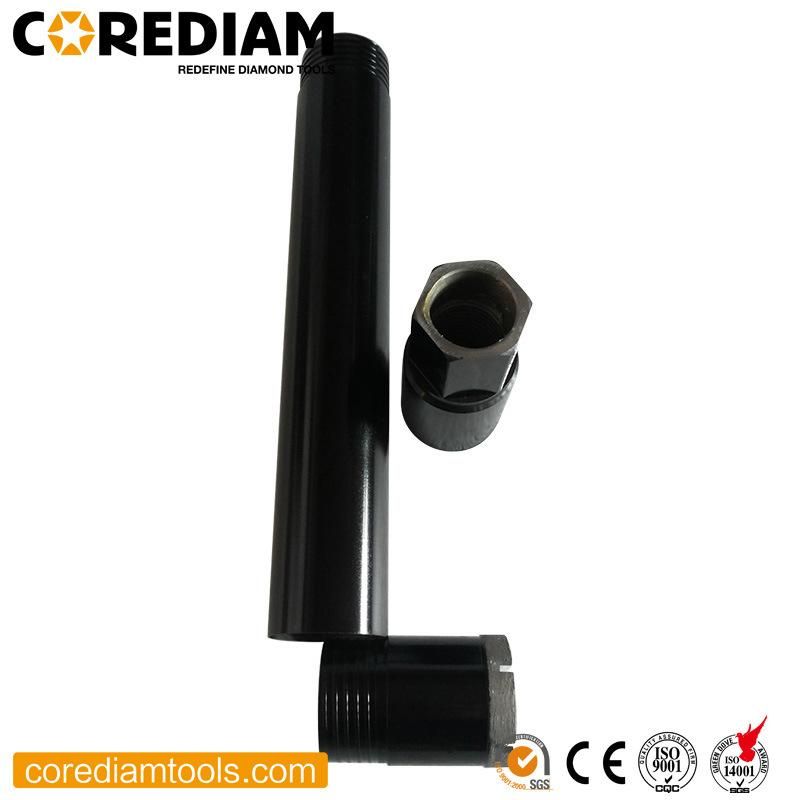

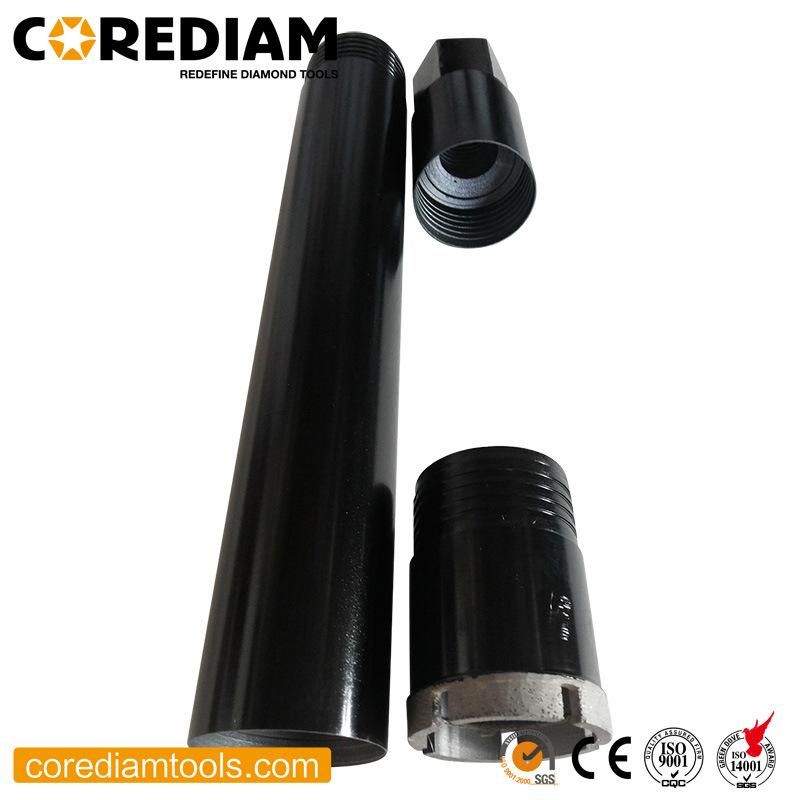

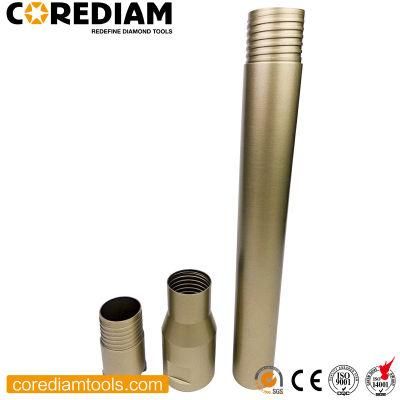

Three-Piece Wet Diamond Core Drill for Concrete, Reinforced Concrete and Masonry/ Diamond Core Drill/Power Tools
Pinghu Kaixin Plastic Industry Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：Brazing
- Segment Height：10mm
- Application：Wet Drilling Concrete, Reinforced Concrete
- Installing Equipment：Stand Core Driller, Hand-Held Drillers
Base Info
- Model NO.：CTCD
- Transport Package：Carton, Case, Pallet
- Specification：25mm-500mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
2.Specification
| Item No. | Diameter | Core Bit Length | Steel Tube Length | Adapter Length | Total Length | Barrel Thickness |
| CTCD02509 | 1" | 50mm | 300mm | 100mm | 420mm | 2.6mm |
| CTCD03209 | 1-1/4" | 55mm | 300mm | 100mm | 415mm | 2.6mm |
| CTCD03809 | 1-1/2" | 65mm | 300mm | 100mm | 405mm | 2.6mm |
| CTCD05109 | 2" | 65mm | 300mm | 100mm | 405mm | 2.6mm |
| CTCD06209 | 2-1/2" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD07509 | 3" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD08809 | 3-1/2" | 70mm | 300mm | 100mm | 410mm | 2.6mm |
| CTCD10809 | 4" | 100mm | 300mm | 100mm | 440mm | 3.0mm |
| CTCD12609 | 5" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD15809 | 6" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD17809 | 7" | 120mm | 300mm | 100mm | 460mm | 3.0mm |
| CTCD20309 | 8" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD22809 | 9" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD25209 | 10" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD30009 | 12" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD35009 | 14" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD40009 | 16" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD45009 | 18" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
| CTCD50009 | 20" | 120mm | 300mm | 100mm | 460mm | 4.0mm |
3.Features
Manufacturer technology:brazing
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan.
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
5.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
