Hfga-44 Crawler DTH Surface Blast Hole Drill Rig

Wenhong Printing Machinery (Jiangsu) Co., Ltd.

Base Info

Description

Overview Product Description

Product Parameters

Main technical specifications

HFGA-44

The engine

cummins
194kw@2,000rpm

DTH hammer

3.5"/4"

Drilling hole diameter

φ90-138mm

Storage bit quantity

6+1

Drill pipe specifications

φ68/76mmx3,500mm

Maximum operating torque

2,800N.m

F.A.D exhaust air.

16m3/min

Maximum working pressure

20 bar

Max. lifting force

31kN

Max. walking speed

3km/h

Climbing ability

25º

The crawler frame swings

±10º

Weight

13,500kg

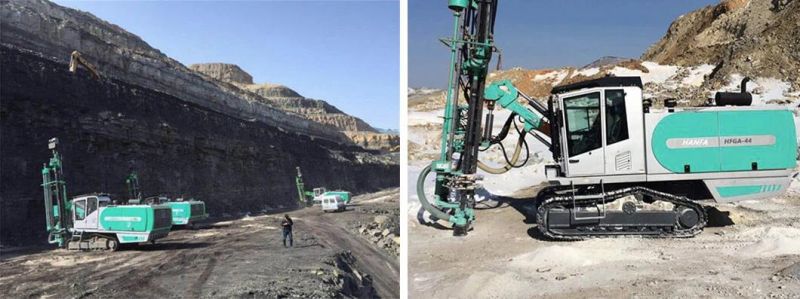

Working Site

Hfga-44 Crawler DTH Surface Blast Hole Drill Rig

Company ProfileHfga-44 Crawler DTH Surface Blast Hole Drill RigHfga-44 Crawler DTH Surface Blast Hole Drill RigHfga-44 Crawler DTH Surface Blast Hole Drill RigFAQ

1. Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
