Hfp1000 400/1000m Full Hydraulic Engineering Drill Power Diamond Core Rock Mining Drilling Rig

Wenhong Printing Machinery (Jiangsu) Co., Ltd.

Base Info

Description

Overview Product Description

Product Parameters



Model



HFP1000



Drill rod model

HTW/NTW/BTW

Drill rod length

1.5m

Drilling capacity

400/1000m

Drilling diameter

96/75.7mm

Core diameter

71/56mm







Hoist

Average speed

150m/min

Lifting power

750kg

Wire rope diameter

6mm

Rope capacity

1300m







Hydraulic system



Rig power

KUBOTA V1505-T Turbocharged diesel engine

4x33kw/3000rpm = 132kw

Maximum pressure

21MPa

Maximum flow

280L/min



Mud pump

Maximum flow

120L/min

Maximum pressure

7MPa









Top drive power head

Drilling angle

45°- 90°/0°- 90° Optional bracket

Maximum torque

1200N·M

Maximum speed

1300rpm

Give progress

1.83m

Lifting force/feeding force

60KN/30KN (Double cylinder power)

Holder

Clamping capacity

114/HTW/NTW/BTW



Machine area

4mx4m×5m

Number of modules

13PCS

Heaviest module

180kg

Weight

1680kg

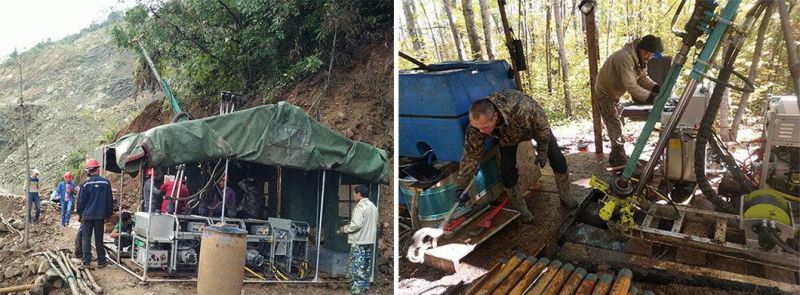

Working Site

Hfp1000 400/1000m Full Hydraulic Engineering Drill Power Diamond Core Rock Mining Drilling Rig

Company Profile

Hfp1000 400/1000m Full Hydraulic Engineering Drill Power Diamond Core Rock Mining Drilling RigHfp1000 400/1000m Full Hydraulic Engineering Drill Power Diamond Core Rock Mining Drilling RigHfp1000 400/1000m Full Hydraulic Engineering Drill Power Diamond Core Rock Mining Drilling RigFAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
