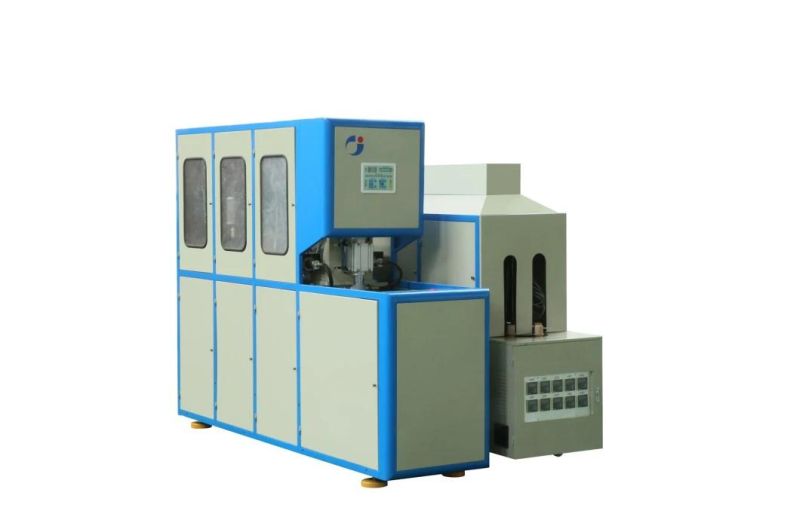

Semi Automatic 5L Semi Automatic Bottle Blowing Machine with CE

Xiamen Bestop Diamond Tools Co., Ltd.

Base Info

Description

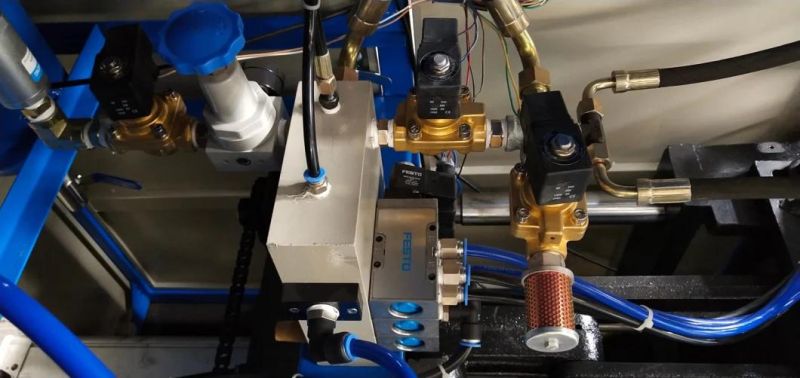

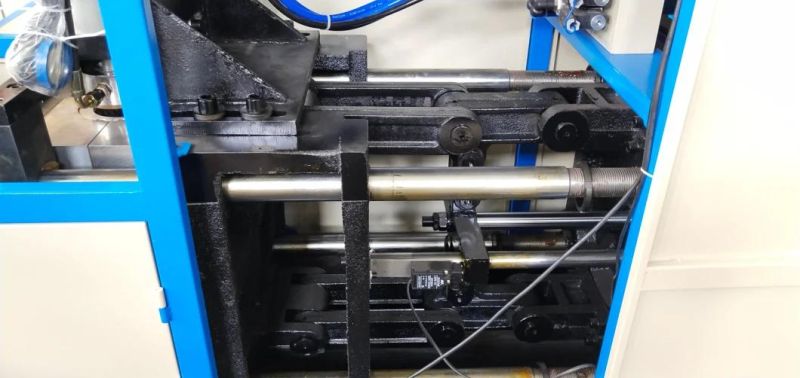

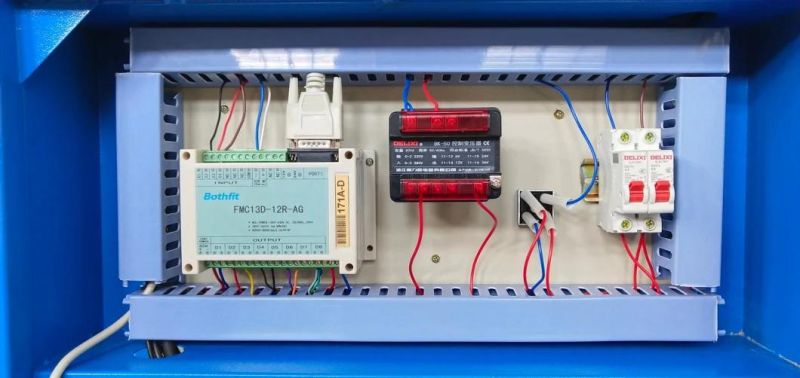

Semi Automatic 5L Semi Automatic Bottle Blowing Machine with CESemi-Automatic Blowing Machine JS-5II ( 2 cavity )blow moulding shaping machine can produce PET containers, including bottles for wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, the machine has no noise It is easy to maintain It's the equipment for producing PET bottles. Mold gathering strength (kN)90Mold traveling distance (mm)235Pulling rising traveling distance (mm)450Bottle spacing140-180Mold hole number (cavity)2Max. Bottle capacity (L)5Max. Tooth part size (mm)120Max. Bottle diameter (mm)180Max. Bottle body height (mm)450Theoretic production capacity (bph)400-800Total power consumption (kW)14Thermal rating (kW)12.8Operating pressure (kg/cm2)8Low pressure gas consumption (L/min)300Bottle blowing pressure (kg/cm2)25High-pressured gas consumption (L/min)350Machine size (m)2 x 0.65 x 1.75Machine weight (MT)0.71Internal details of the MachineSemi Automatic 5L Semi Automatic Bottle Blowing Machine with CESemi Automatic 5L Semi Automatic Bottle Blowing Machine with CE Semi Automatic 5L Semi Automatic Bottle Blowing Machine with CESemi Automatic 5L Semi Automatic Bottle Blowing Machine with CE

Semi Automatic 5L Semi Automatic Bottle Blowing Machine with CESemi Automatic 5L Semi Automatic Bottle Blowing Machine with CESemi Automatic 5L Semi Automatic Bottle Blowing Machine with CE
