Basic Info.

Model NO. RL-P Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE Speed High Speed Die Rotary Die Rewinder Single or Double Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 50 Sets/ Year

Product Description

PP Single Screw Water Cooling Rotary Die Double Rewinder Film Blowing Machine

Main Uses and Characteristics:
1.It is suitable for producing polypropylene packing bags of various sizes(such as packing bags for clothing, food, textile and industrial products, etc.)
2.The cylinder and the screw stem of the extruder are made of high-quality alloy steel after nitrogen treatment, which has the best hardness and corrosion resistance.

Main Technical Variables:

Model	RL-P-55	RL-P-60	RL-P-65
Screw Diameter	55mm	60mm	65mm
Screw Ratio	L/D27:1	L/D27:1	L/D27:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	15Kw	18.5Kw	22Kw
Rotational Mode of Machine Head	Continuous rotation	Continuous rotation	Continuous rotation
Main Output	32kg/h	38kg/h	42kg/h
Max Folding Width of Film	600mm	700mm	800mm
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Weight of Machine	2300kg	2900kg	3500kg
Overall Dimensions	4800×2500×4000mm	4800×2500×4200mm	5000×2500×4500mm

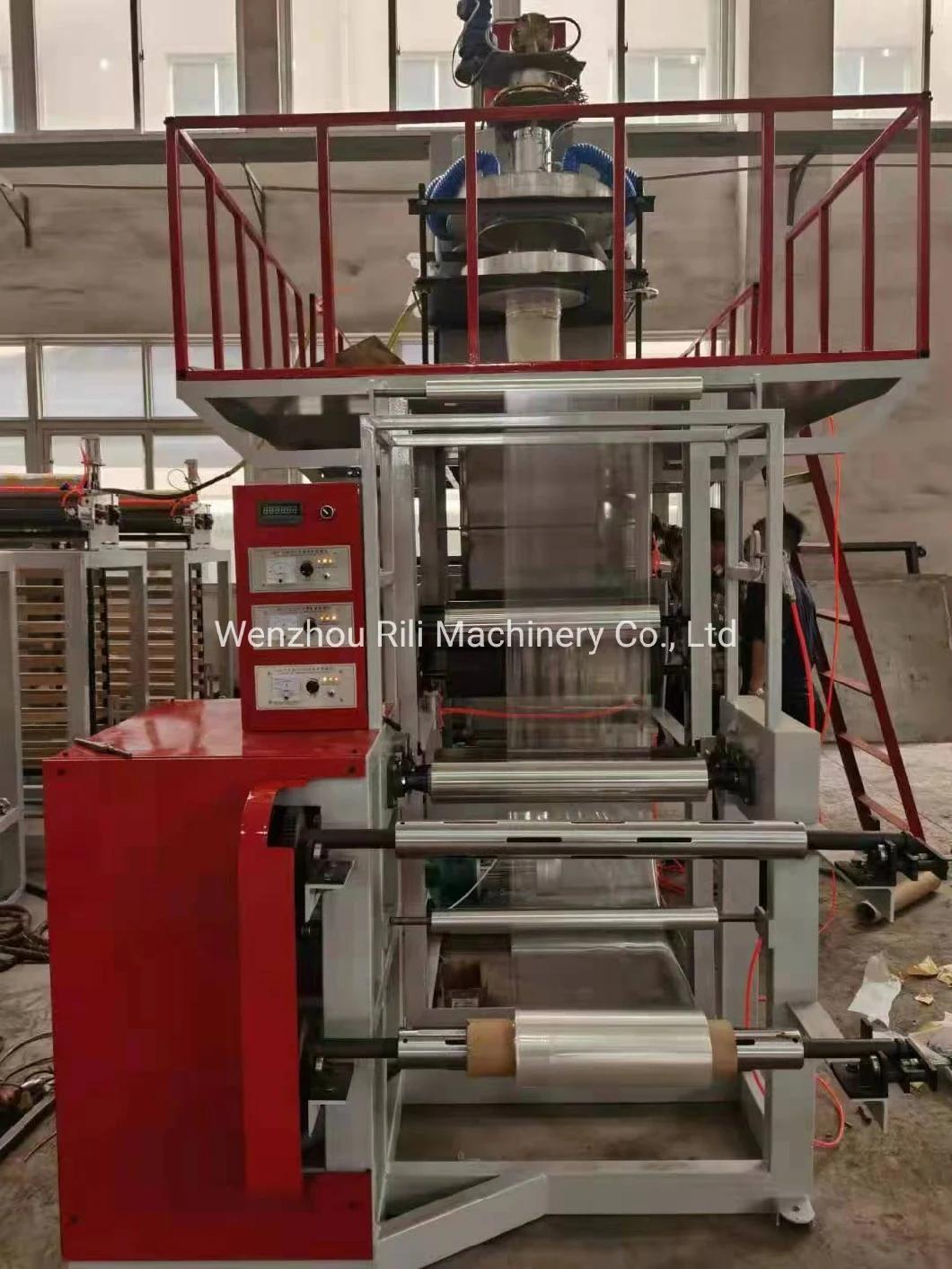

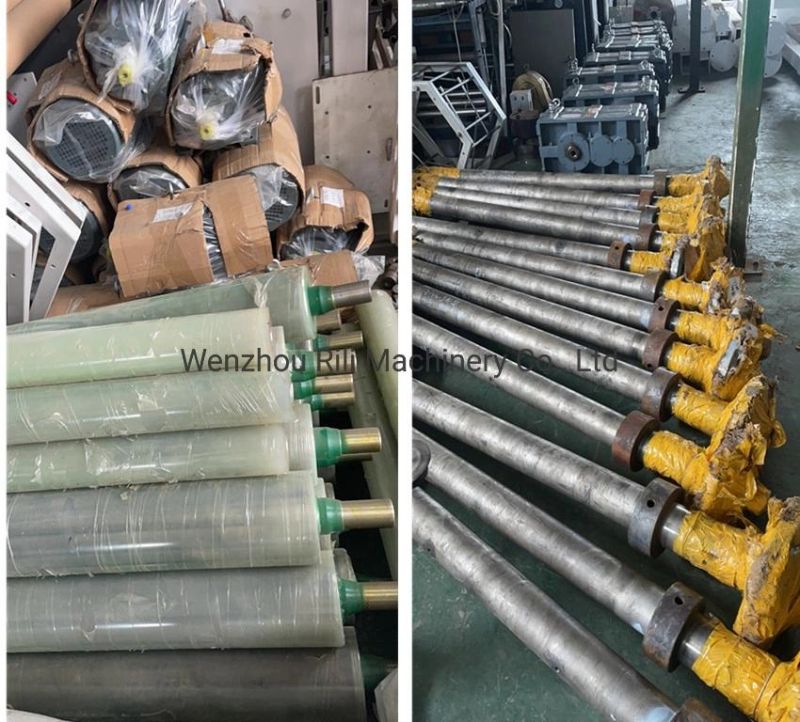

Machine Pictures:





Machine Loading
