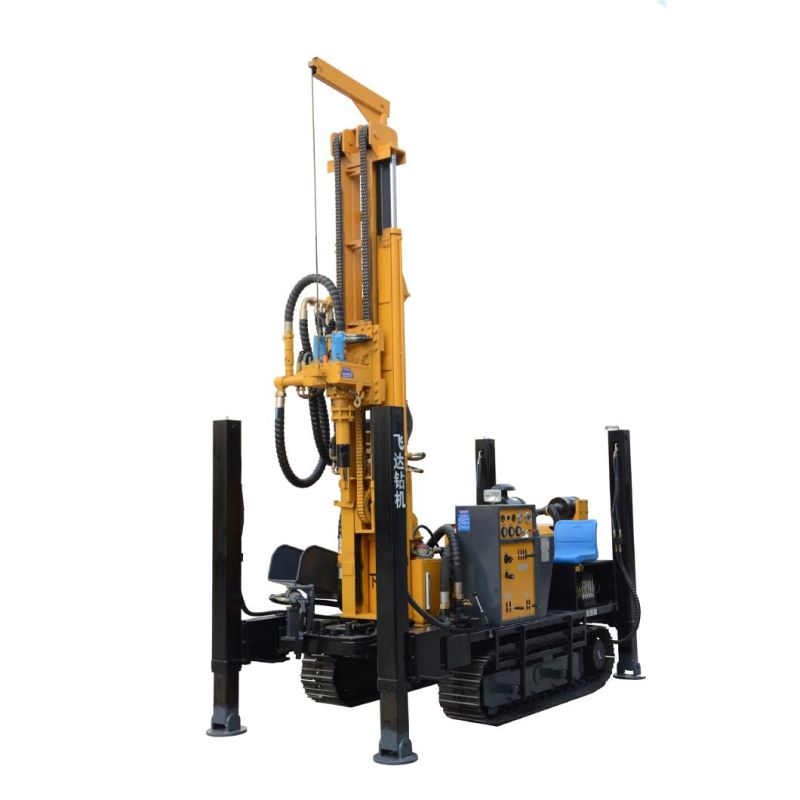

Technical Parameters of FY260 Crawler type water well drilling rig

type

FY260

The weight

6.5T

Dimension

4000*1850*2300mm

The hole diameter

140-305mm

Drilling depth

260m

One-time advance length

3.3m

Walking speed

2.5KM/H

Climbing angles

30

Power

70KW

Using air pressure

1.7-3.0 mpa

Air consumption

17-30 m3/min

Drill pipe length

1.5m  2.0m  3.0m

Drill pipe diameter

76mm,89mm,

Rig lifting force

15T

Swing speed

45-70 rpm

Swing torque

4000-5300 N.m
