Automatic Air Pressure Filtration Oil Extractor (YZLXQ140)
Ningbo Beixuan International Trading Co., Ltd.- Type：Spiral Oil Press
- Application：Beans, Sesame Seeds
- Voltage：380V
- Appearance：Uniaxial
- Press Materials：Sesame
- Press Series：Fourth
Base Info
- Model NO.：YZLXQ140
- Condition：New
- Customized：Customized
- Name：Automatic Air Pressure Filtration Oil Extractor
- Applicable Oil Material：Rapeseed, Cotton Seed, Sesame, Peanut, Sunflower

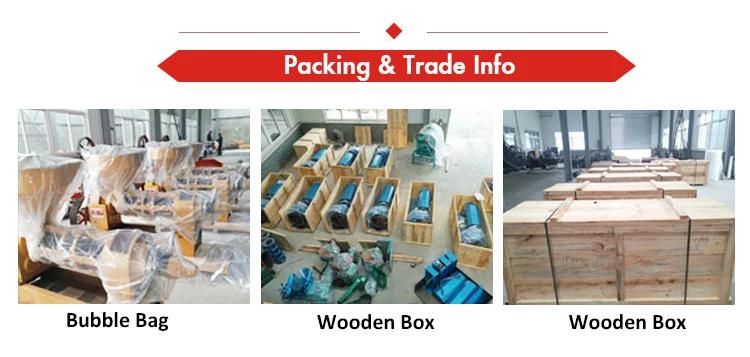

- Transport Package：Solid Wooden Box
- Specification：ISO, SGS, BV
- Trademark：Guangxin
- Origin：Sichuan, China
- HS Code：8479200000
- Production Capacity：400PCS Per Month
Description
Basic Info.
Model NO. YZLXQ140 Condition New Customized Customized Name Automatic Air Pressure Filtration Oil Extractor Applicable Oil Material Rapeseed, Cotton Seed, Sesame, Peanut, Sunflower Transport Package Solid Wooden Box Specification ISO, SGS, BV Trademark Guangxin Origin Sichuan, China HS Code 8479200000 Production Capacity 400PCS Per MonthProduct Description
YZLXQ140 automatic Air Pressure Filtration oil extractor1. Has combined functions in one- Auto-heating, squeezing and filtratration, therefore saves labor cost and time consumption.
2. The auto-heating function can raise the temperature of the press cage automatically. No need use the
Traditonal way. It shortens the preparation work and reduced the energy using. When the squeezing is
Suspended, the temperature can be maintained at a certain degree by this system.
3. The two air pressure filters equipped on the machine are making use of the compressed air as force, the filtrating ability is quite strong and the result is precise.
4. Big day output 10ton/24h, oil content of residue cake is ≤ 8%.
Quality standard
Conform to JB/T9793· 1-1999 of the People's Republic of China & ISO9001: 2008.
Guangxin after-sale service
1. Free replacement of main body in 12 months from date of purchasing.
2. Spare parts are supplied all year around at factory cost.
3. We have professional engineering team, help users plan and design oil refinery.
| Model | YZLXQ140 |
| Processing Capacity (t/24h) | 9-11 |
| Oil Content of dry cakes (%) | ≤7.6 |
| Press Power Required (k.W) | 18.5-22 |
| Filtration Power Required (k.W) | 1.5 |
| Temperature Control Power Required (k.W) | 3 |
| Measurement (mm) | 2120×1350×1890 |
| Spiral axes rotate speed (r/min) | 32~44 |
| Weight (KG) | 1300 |
