Waste PE PP Plastic Film Scrap Recycling Washing Machinery Line in China
Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.Base Info
Description
Moisture: max 7-8%
Bulk density: 0.1g/cm3
Particle size: 30-80mm
Total impurity: 150ppm
Feature of Recycled Film Recycling Line
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-2500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
Motor:Siemens, WEW
Gear reducer:SEW, FALK
Bearing:SKF, FAG, NSK
PLC:Siemens, Schneider, Beckhoff
Inverter:ABB, Schneider, Siemens
Pressure sensor:Dynisco, Gefran
Low voltage component:Siemens, Schneider, Omron, LS

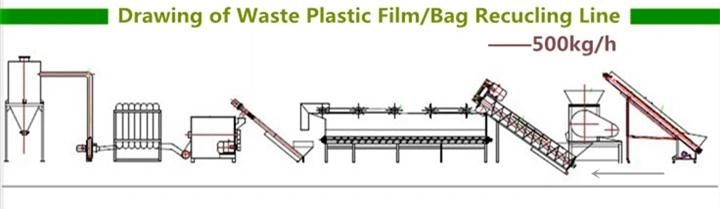

500kg/h Waste Film Recycling Production Line List for your reference: Total10 sets All brands can accoring customer's requirements.
We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
General information( 500kg/h as example):Payment: T/T,L/C
Delivery: 45-90 days
Origin: China
Minimum Order: 1 set
Packing: wooden case with plastic film(also can according to customer's requirements)
Inspection: in house
Guarantee: 12months
Services:After shipping,two engineers will go to customer's company to install and test machine,and teach customer's workers the operative skills. - pre-sales services:
we will take customers to visit our factory and check the machines quality from airport/bus station/train stations.
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, control method etc. - after sales services:
we will offer electric diagram, installation diagram, usage manual.
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services etc.
- we will offer customers spare parts at cost prices all life long of the machines .
