Basic Info.

Model NO. SJ65x132 Condition New Raw Material PE Power Supply 380V Three Phase Inverter ABB Intelligent Temperature Controller Omron Button Schneider Control System PLC Control System Barrel Heating 4 Sections Warranty 12monthes After Sale Service Life Long with Professional After Sale Team Machine Color as Request Transport Package as Export Standard for Plastics Machine Specification ISO9001 CE Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 100pics/Year

Product Description

PVC Conduit Pipe Making Machine-Suke Machine


MACHINE INTRODUCTION:

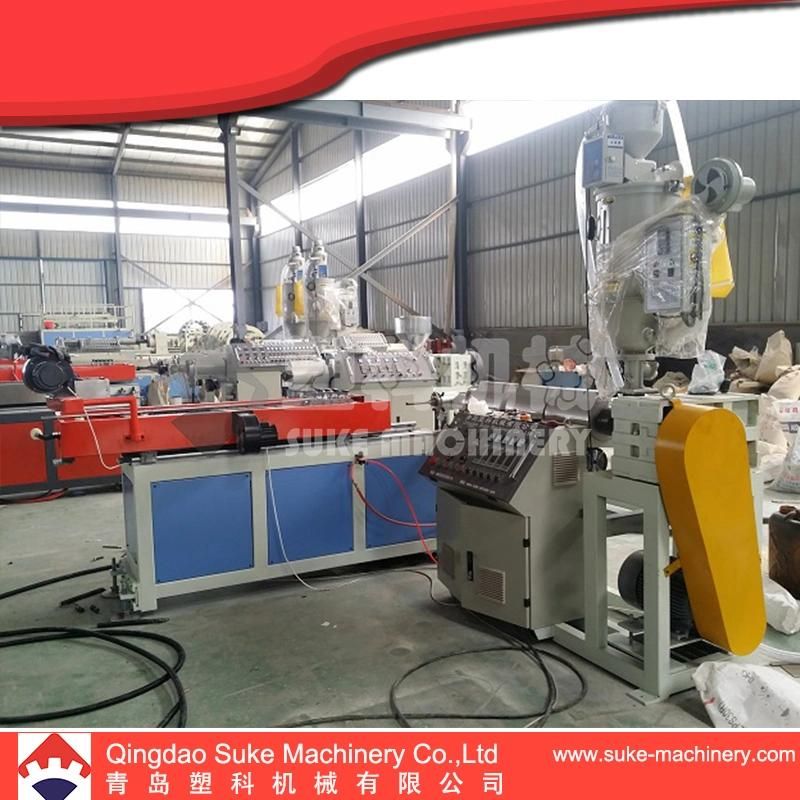

This line is used produce pvc electric conduit pipe by twin screw extruder.
The raw materail is pvc powder.
The type of extruder depends on the diameter range of pipe


PVC PIPE PRODUCTION PROCESS:
PVC powder+additive----- screw feeder -----  mixing  -----  screw feeder ------ twin screw extruder ----- mould and calibrator-----vacuum forming table-----haul off machine------cutting machine-----stacker.


EQUIPMENT LIST:
1. Twin Screw Extruder
2. Mould
3. Vacuum Shaping and Cooling Water Tank
4. Haul-off Machine
5. Cutting Machine
6. Stacker

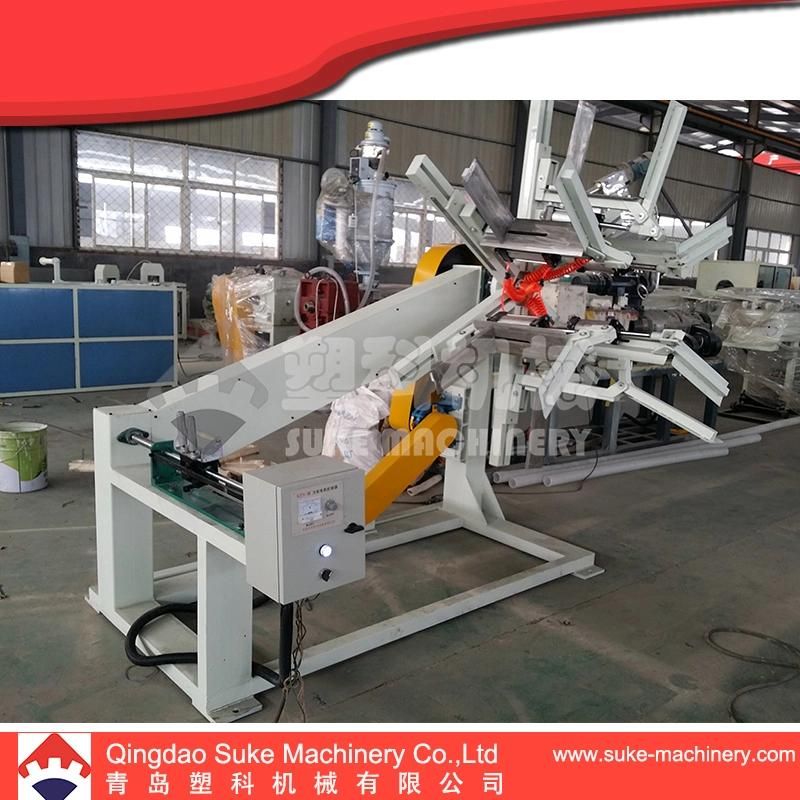

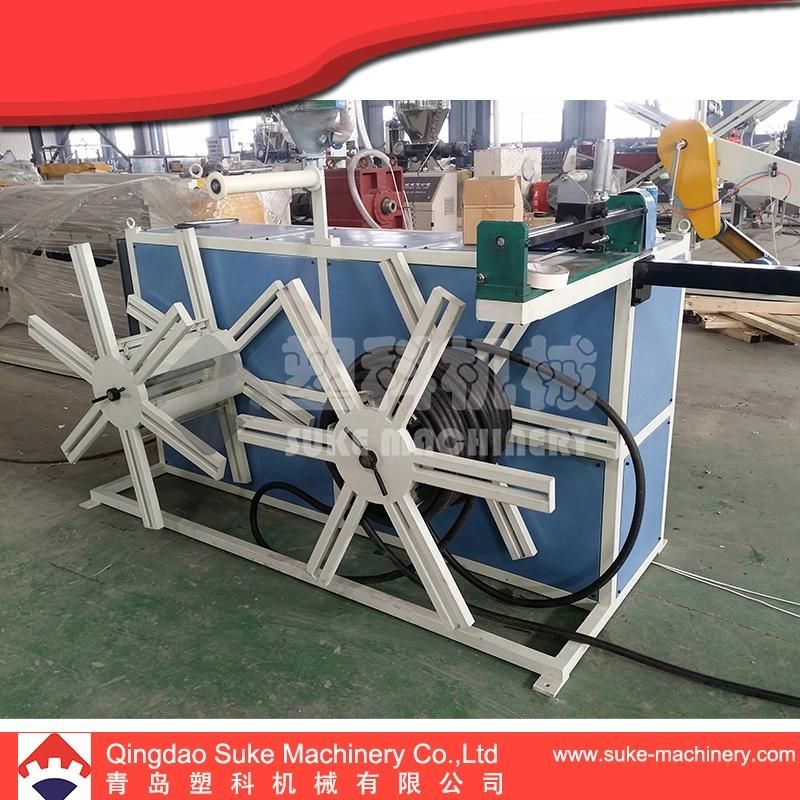

As the pipe with small diameter, the winder(winding machine) will be used.
It depends on the client's requiremetn.


MACHINE TYPE

Main  extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main  motor  power(KW)	22	37	55	110
Pipe  diameter(mm)	16-  63mm	75-160mm	200-400	400-  630
Hauling  speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total  power(KW)	89	95	135	255
