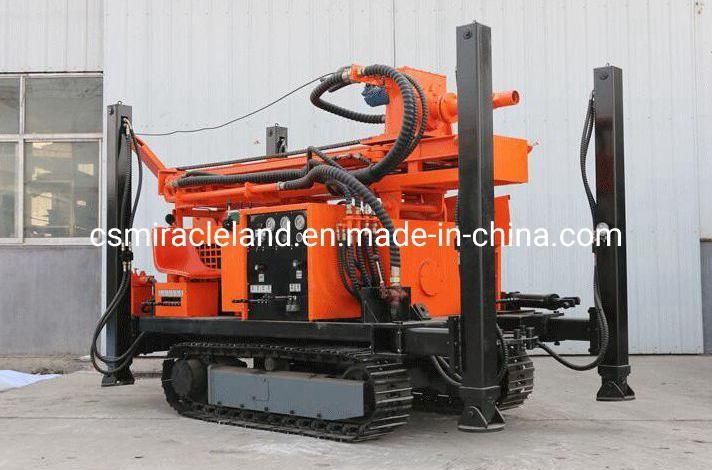

Ky-200 DTH Hammer Water Well Drilling Rig/Well Rock Drill Machine

Ruian Shengxiang Packaging Machinery Co., Ltd.

Base Info

Description

KY-200 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth200mDrilling diameterΦ140-Φ305mmWorking air pressure1.7-3.0MPaAir consumption17-30m3/minDrilling pipe diameterΦ76, Φ89mm, Φ102mmLength of drill pipe1.5m, 2.0m, 3.0mOne push length3mTramming speed2.5km/hClimbing ability (Max.)30°Ground clearance (Min.)250mmRotation speed50-70 rpmRotation torque4800-6500 N.mPower76 KwWeight6.2TDimension4000x1900x2600mm Detailed Images

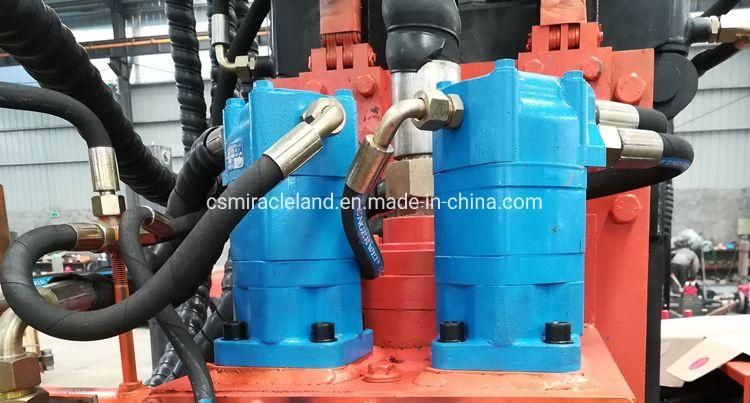

Double motor to provide power, large torque, durability, maintenance cost is lower.

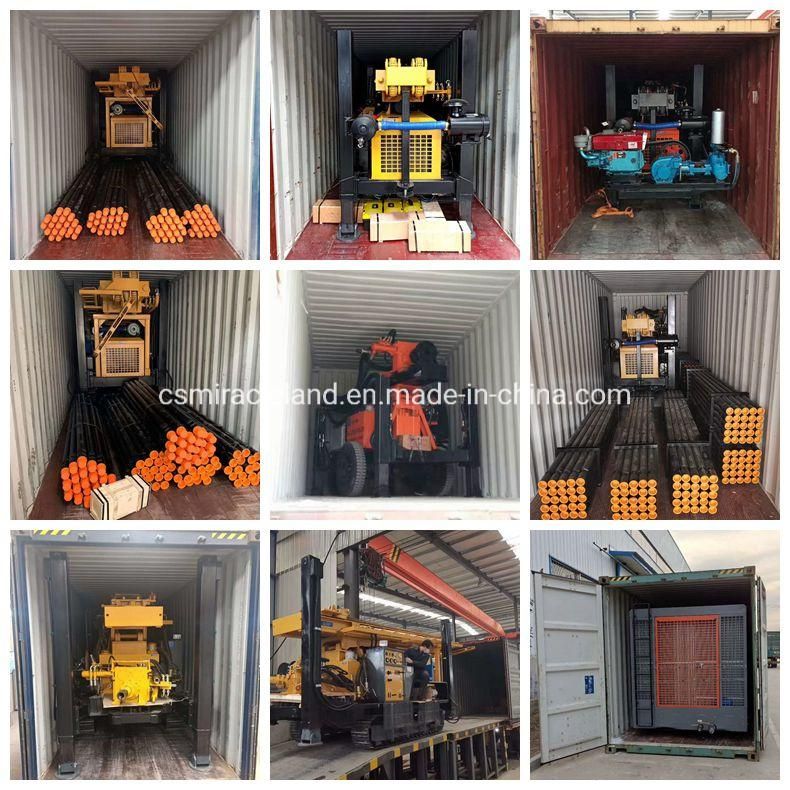

Packaging & Shipping:

Contact Us

Category

PackagingPrinting

Tools & Hardware

Manufacturing & Processing Machinery

Lights & Lighting

Industrial Equipment & Components

Health & Medicine

Furniture

Auto, Motorcycle Parts & Accessories

Recommended

Backpack Portable Diamond Core Drill Rig /Rock Drill for Geological Exploration/Portable Rock Drilling Machine
Overview Product DescriptionDetailed PhotosProduct ParametersPackaging & ShippingCompany ProfileOur Advantages1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.2. When meets machine failure problem, our factory will ens
Mine Rock Core Drilling Rig Single Hand-Held Mountain Mine Exploration Core Drilling Rig
Overview Company ProfileFAQQ1. Are you manufacturer or trader?A:We are a manufacturer of garden machinery and construction machinery. Actually, we produce most of the parts in our own factory for better cost and quality control.Q2. What is your terms of payment?A: T/T 30% as depos
Borehole Soil Efficient Pile Best Price Drilling Machine
φ90~φ168Hole depth(m) 30~6030~50If you need more detail, pls kindly send email to usConstruction Site Feature&TechnologyAbout usTrainingCertificatePackaging and TransportationFactory showExhibitionOur products have been exported to many oversea countries such as Malaysia, Vietnam, Singap
Fy300 Crawler DTH Drilling Rig Water Well Drilling Machine for Sale
1.52.0,3.0,6.0Drill RodDTH Drill BitDTH Hammer
Spt Test Core Drilling Rig Machine Exploration Drilling Machine
Mud pumpTypeCBT-F-314Triangle conveyer beltB1100× 1
Modular Deep Hole Drilling Rig
MatchedDrillingToolsGeological/ Triangular/ Wide BladeSpiral Drill Rod mm(standard)Φ73(1:4 conicalbuckle,wide blade1:6)23Drill Bit Diameter mm(standard)Φ90/Φ94/Φ108/Φ13324Geological/ Triangular/ Wide BladeSpiral Drill Rod mm(optional)Φ63(1:6 conical buckle,wide blade1:8)25Dri

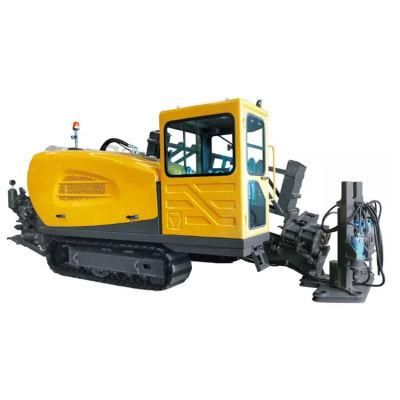

CNC Control Intelligence Trenchless Kdp Horizontal Directional Drilling Machine
ModelYG-160AYG-180YG-280YG-320YG-320AEngine rated power100KW97KW160KW140KW/160KW160KWPush and pullCylinderMotorMotorCylinderMotorMaximum drag/feed force160/100KN180/180KN280/280KN320/320KN320/320KNMaximum torque of power head5000N.n6000N.n10000N.n12000N.n12000N.nPower head speed0-180r/min0-140r/min0

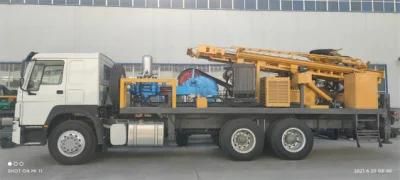

Wheeled Big Capacity 800 Meters HOWO 8X4 Mobile Chassis Diesel Truck Mounted Rotary Drilling Rig
