• Model NO.：Gy-M100
• Name：Small Scale Milk Production Machine
• Material：304 Stainless Steel
• Capacity：100L,Batch
• Processing Types：Mini Pasteurizer Machine
• Sterilization Temperature：65-99 (Adjustable)
• Heating：85c
• Processing：Pasteurizer + Ageing
• Usage：Pasteurization Milk. Dairy
• Contour Dimension：1700X1000X1710mm
• Heat up：25-35minute
• Transport Package：Wooden Cases
• Specification：10M
• Trademark：Genyond
• Origin：China
• HS Code：8438200000
• Production Capacity：10sets,M

Basic Info.

Model NO. Gy-M100 Name Small Scale Milk Production Machine Material 304 Stainless Steel Capacity 100L/Batch Processing Types Mini Pasteurizer Machine Sterilization Temperature 65-99 (Adjustable) Heating 85c Processing Pasteurizer + Ageing Usage Pasteurization Milk. Dairy Contour Dimension 1700X1000X1710mm Heat up 25-35minute Transport Package Wooden Cases Specification 10M Trademark Genyond Origin China HS Code 8438200000 Production Capacity 10sets/M

Product Description

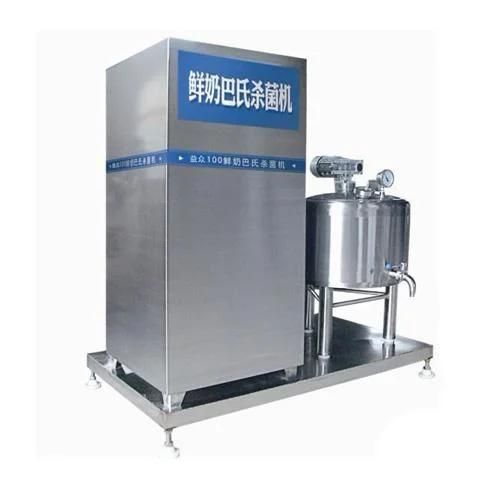

Milk pasteurized machine
Working principle of milk pasteurizer
Milk pasteurized machine main working principle is low temperature sterilization, also is not more than 100 ºC

for milk sterilization pasteurization can keep the good bacteria in milk at the same time, kill the harmful bacteria such as colon bacillus.the milk temperature in the equipment stay at 85 ºC for half an hour can retain the beneficial bacteria, kill harmful bacteria.

Features of milk pasteurizer
1. SUS304 stainless steel (thickness 2mm), sterilization temperature, speed can be set according to process requirements.
2. Bactericidal effect, low noise, speed adjustable durable, safe and reliable, automatic temperature control, easy maintenance.
3. The body is made of milk cans and tanks of two part.
4. Hot water tank and water tank into the cold water tank.
5. Tank is divided into three layers, the outermost layer is the insulation layer, an intermediate layer of hot water sterilization,
the inner layer is milk.
6. The top of the milk cans with a stirrer, stir milk to make milk is heated evenly through the mixing device.
7. Barrel diameter of 500-600mm, the yield of 100kg/second (150kg/times).


Models of milk pasteurizer
1. Most cost-effective model: water cooling system.
2. Most practical model: ice cooling system.
3. Most advanced model: air compressor cooling system

Model	GY-M100	GY-M150
Internal diameter	100mm	640mm
Output	100kg/time	150kg/time
Material	SUS304	SUS304
Thickness	1.5 mm	1.5 mm
Height	1650mm	1650mm
Sterilization time	5-40min(adjustable)	5-40min(adjustable)
Sterilization temperature	50-99°C	50-99°C
Voltage	380V/50Hz	380V/50Hz
Rate of refrigeration compressor	3kw	3kw
Heat source	electric heating	electric heating
Heat up	25-35minute	25-35minute
Power	13kw	16kw
Contour dimension	1700x1000x1710mm	1700x1000x1710mm

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

CERTIFICATIONS:


ABOUT US

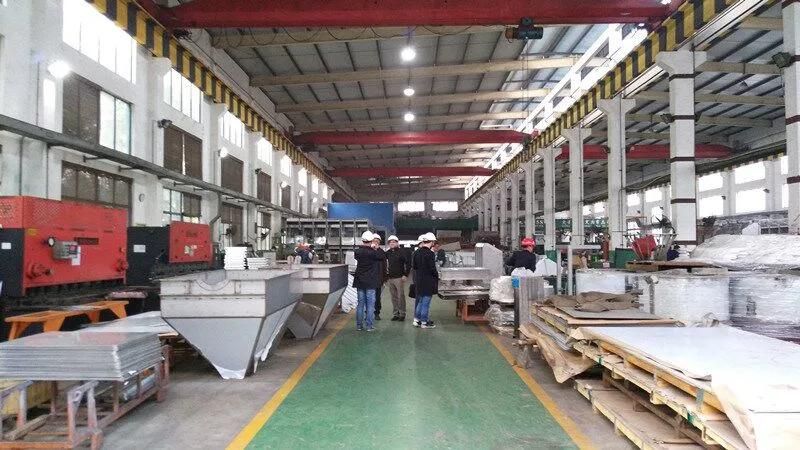

GENYOND MACHINERY INDUSTRIAL GROUP

Genyond is a group company which is speciallizing in machine design, production and installation. Our head office is in Shanghai, China. It has 6 factories in China. Shanghai genyond technology Co., Ltd, Shanghai juyuan machinery Co. Ltd, Jiangsu zhangjiagang Jierong machinery Co., Ltd, Jiangsu Jiangyin fengyue machinery Co., Ltd, Zhejiang jouyond machinery Co.,Ltd and 4 subsidiaries.

Our main produce is food machine, medicine machine, chemicals machine.
