• Model NO.：HPU-01
• Structure：Thin-Film Type
• Material：Carbon Steel
• System Pressure：19MPa
• Tank Capacity：3L
• Solienoid Valve Volt：12VDC
• Power：1.5 Kw
• Transport Package：Metal Casemetal Case, Plywood Case
• Specification：23cmx25cmx59cm
• Trademark：GD
• Origin：China
• HS Code：84122100
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. HPU-01 Structure Thin-Film Type Material Carbon Steel System Pressure 19MPa Tank Capacity 3L Solienoid Valve Volt 12VDC Power 1.5 Kw Transport Package Metal Casemetal Case, Plywood Case Specification 23cmx25cmx59cm Trademark GD Origin China HS Code 84122100 Production Capacity 100000PCS/Year

Product Description

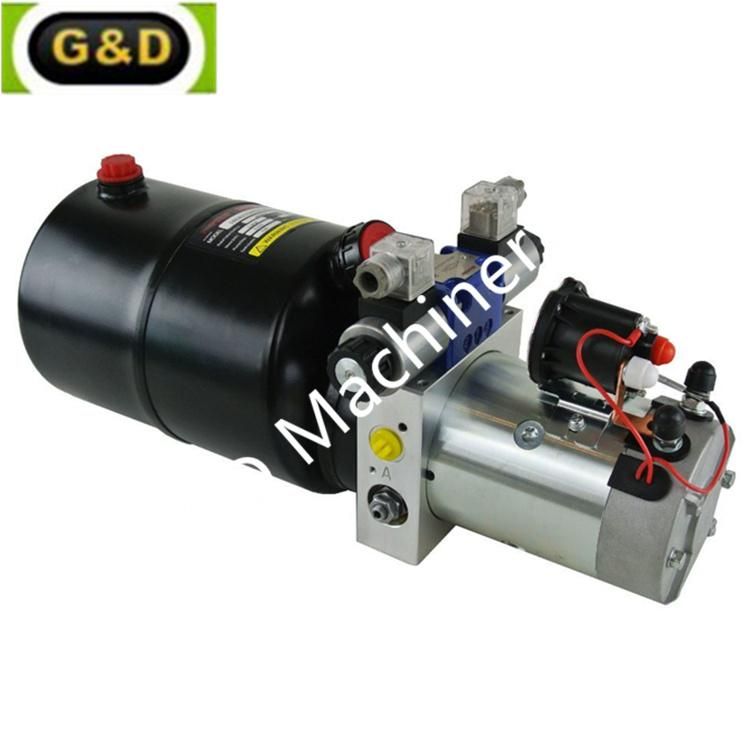

Hydraulic power unit



• About  GD Machinery Co.,Ltd

 GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges,pneumatic cylinders and custom-made components and parts, like industrial valves.

Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.

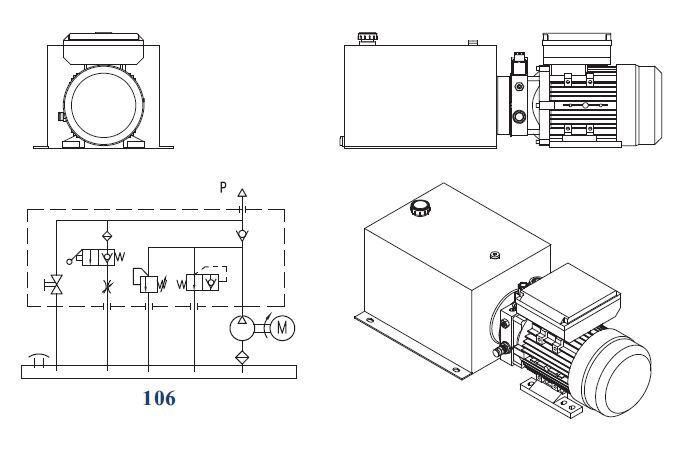

          Hydraulic Power Unit

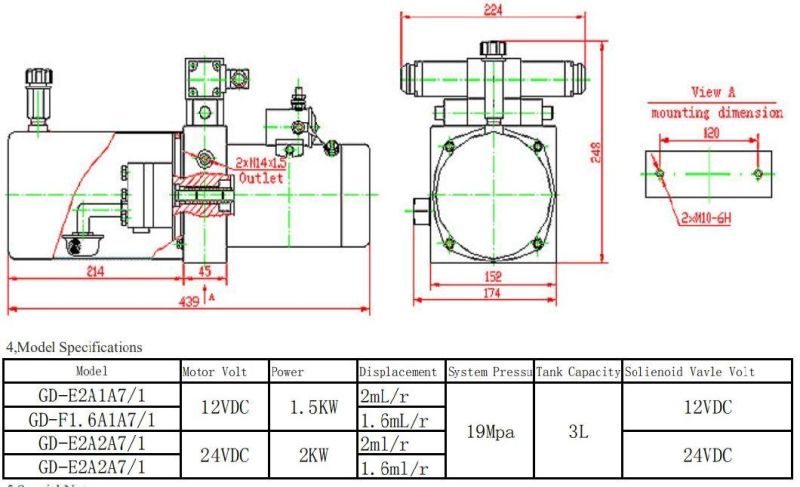

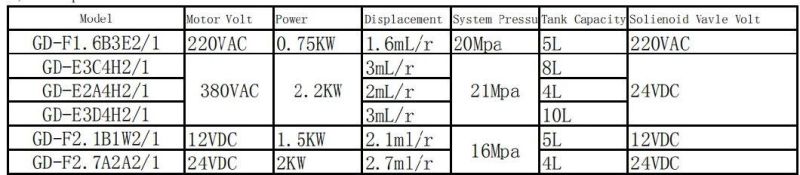

Specification

Special Notes 1) The motor is a S3 duty one, which can only be worked intermittently, ie., 1 mimute on and 9 minutes off. 2) Viscosity of the oil should be 15-68 cst. 3) Check the oil level in the tank after the first start of the power unit. 4) Change the oil after the first 100 hours of using the power unit, then change the oil every 3000 hours. 5) We are at your disposal to offer you the power units with your favorate power, flow, pressure as well as the tank capacity. 6) There are two optional mounting styles--horizontal or vertical. Indicate a proper one when ordering.

                                   100%Tested

Tested to perfection, Hydraulic Power Unit goes through a thorough pressure test to assure compliance and quality expectations.

 Available accessories

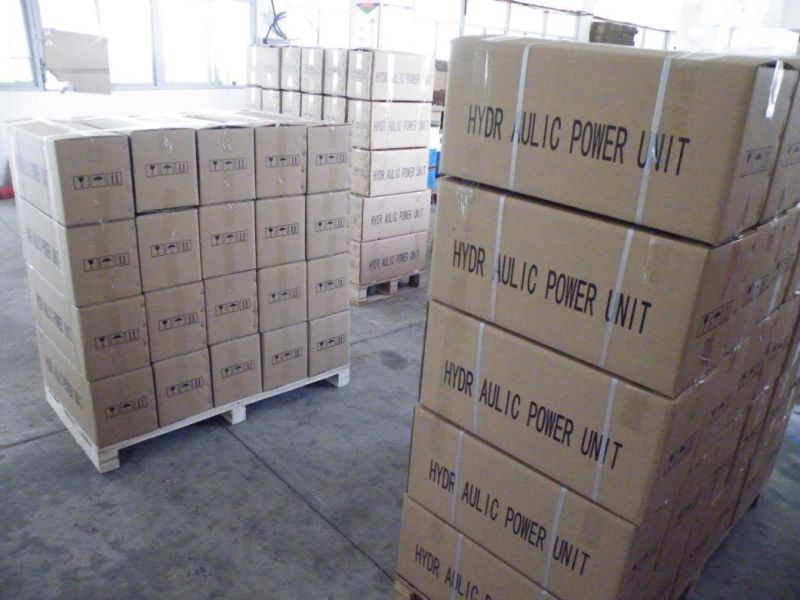

Packaging

We use metal case,plywood case /carton or as Customer's requirements








Delivery time:

30-40 days upon 30%deposit and drawing approval

Hydraulic Power unit can be built according to your drawings or technical requirement.
Sample order are acceptable.



Looking forward to your inquires about hydraulic cylinders and hydraulic power unit.
