Automatic Extrusion HDPE Plastic Drums Cans Barrels Blowing Molding Machine
Shandong Fangdi Trade Co., Ltd.Base Info
Description
Basic Info.
Model NO. PXB100A Bottom Blowing Available Material PP, PE, ABS... Total Weight 16.0t Output(Dry Cycle) 400 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Toys, Auto Parts, Drum, etc Multi-Layer Available Multi-Color Available Screw Diameter 100mm Transport Package Film Packing with Wooden Bottom Specification Max capacity 90L Trademark Puxin Origin Suzhou HS Code 847730100Product Description

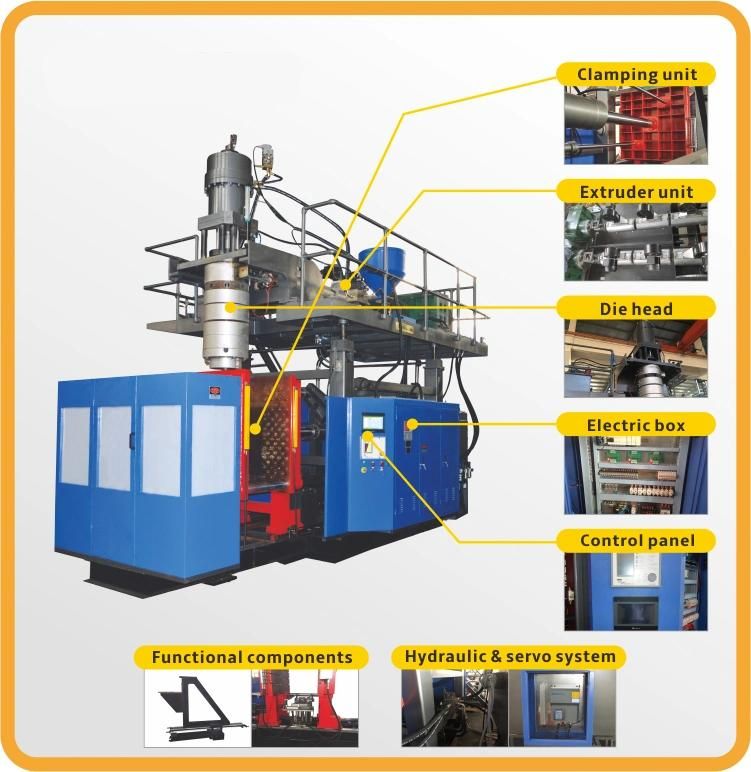

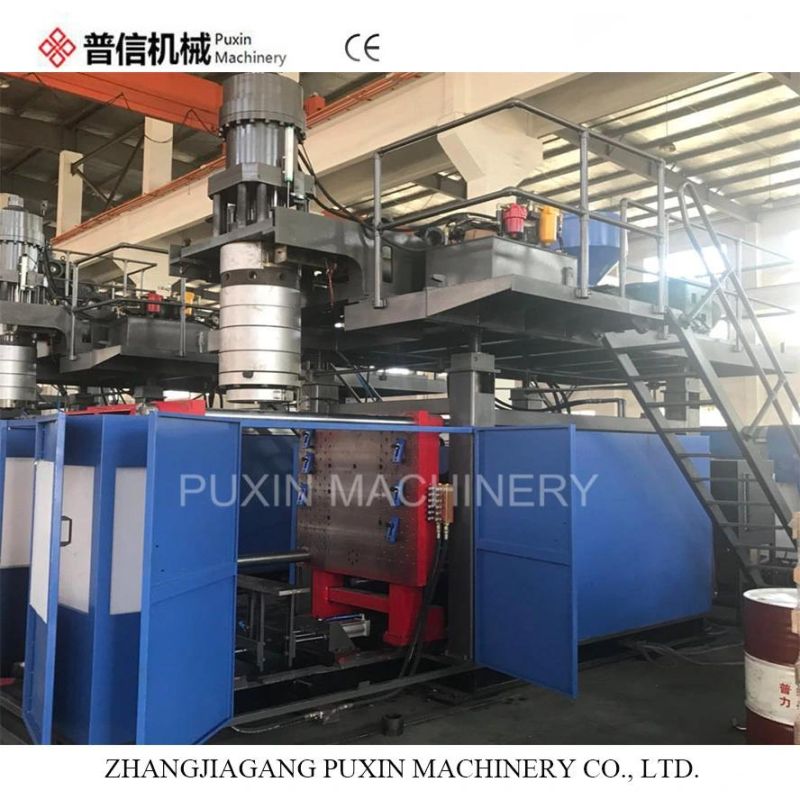

PXB100A60L-90L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Material | PE,PP,ABS... | |
| Max container capacity | L | 90 |
| Output(dry cycle) | pc/hr | 400 |
| Machine dimension(L×W×H) | M | 6.2×2.8×4.5 |
| Machine weight | T | 16 |
| Clamping Unit | ||
| Clamping force | kn | 450 |
| Mold platen size(W×H) | mm | 1080×1000 |
| Platen opening stroke | mm | 500-1200 |
| Platen moving stroke | mm | 700 |
| Max mold size(W×H) | mm | 800×1100 |
| Mold thickness | mm | 510-650 |
| Power | ||
| Servo oil pump motor power | KW | 18.5 |
| Servo pump displacement | L/MIN | 120 |
| Blow pressure | MPA | 0.8 |
| Air consumption | M3/MIN | 1.2 |
| Cooling water pressure | mpa | 0.3 |
| Water consumption | L/min | 100 |
| Average energy consumption | KW | 43-50 |
| Extruder unit | ||
| Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 24 |
| HDPE Melting capacit for HDPE | kg/hr | 160-200 |
| Number of heating zone | zone | 5 |
| Screw heating power | kw | 25.1 |
| Screw fan power | KW | 0.6 |
| Extruder motor power | kw | 45(55) |
| Die head | ||
| Number of heating zone for single die head | zone | 5 |
| Heating power for single die head | kw | 26 |
| Max die-pin diameter | mm | 450 |
| Accumulator capacity | L | 12 |
| (HDPE) Accumulator weight(HDPE) | KG | 9 |
OUR FACTORY:
