• Production Capacity：100-200kg
• Model NO.：GY

Basic Info.

Model NO. GY Production Capacity 100-200kg

Product Description

Specifications
1,easy contorl
2,low cost
3,high quility
4,different packing machine


chewing gum manufacturing machine/bubble gum making machine/chewing gum making machine

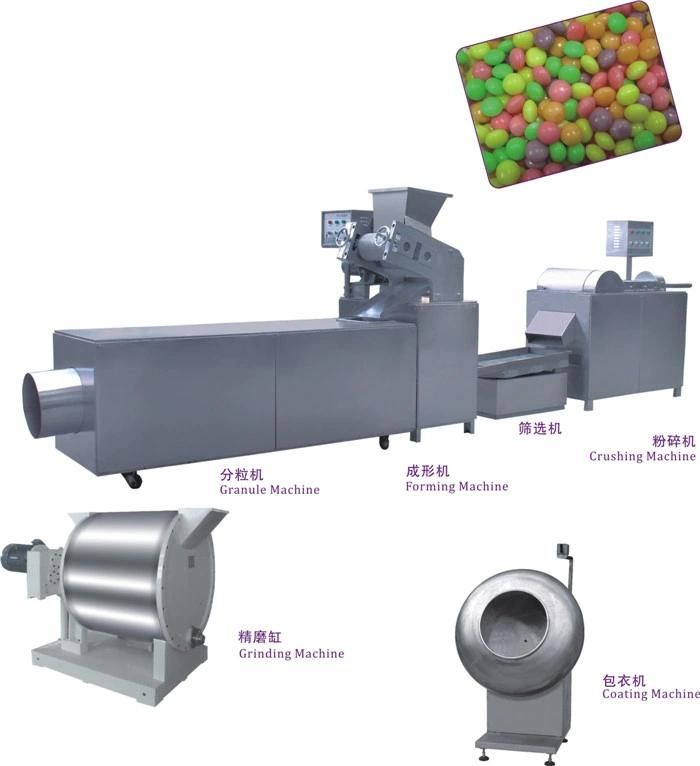

This production line is professional for producing dragee chewing gum with high capacity. It is composed of the sugar mill, gum base oven,mixer, extruder, cooling tunnel,roller and forming machine, cooling breaking drum,dragee machine, packaging machine.


Production line flow scheme:

kibbler → mixing→extruder→planish with six line→forming→cooling transport
gum oven → cabinet→automatic classifier→polish


 Model

Model	GY-CD150	GY-CD300	GY-CD450	GY-CD600
Output(kg/h)	150	300	450	600
Max candy weight	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V
Total length(m)	15	17	17	20
Gross weight	3500kg	4000 kg	4500 kg	5000 kg
