• Model NO.：Rooftop Type Segment
• Tooling Performance：Improve The Tool′s Performance
• Transport Package：Color Box,White Paper Box, Brown Paper Box
• Specification：Dia 25mm-355mm
• Trademark：BSP TOOLS
• Origin：China
• Production Capacity：1000000,Year

Basic Info.

Model NO. Rooftop Type Segment Tooling Performance Improve The Tool′s Performance Transport Package Color Box/White Paper Box/ Brown Paper Box Specification Dia 25mm-355mm Trademark BSP TOOLS Origin China Production Capacity 1000000/Year

Product Description

BSP tools manufacture supply Rooftop Type Segment with 1 year warranty. We devoted ourselves to diamond tools many years,covering most of Europe and Australia market. We are expecting become your long term partner in china.

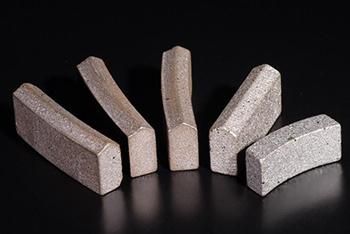

Rooftop Type Segment

1.Product Introduction of the Rooftop Type Segment

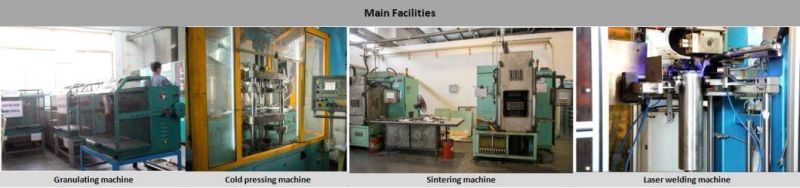

Rooftop Type Segment consist of small-size diamonds and metal bond materials. The metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, graphite, etc. The diamonds are mixed with the bond materials, and the mixture is loaded into molds. After  cold pressing, sintering, and arc grinding, diamond segments are formed.

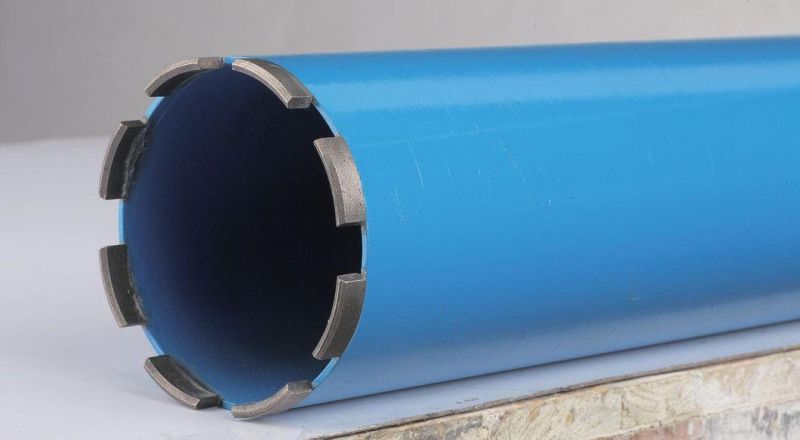

For a drill core bit, Diamond segments are just the "teeth" of the tool . The form of the segments is an important factor which influences the performance of the tool, for example, cutting efficiency and the ratio of the diamonds' non-normal failure.
One purpose to make Rooftop Type Segment is to increase the tool capabilities of containing and discharging sawdust, and improve the cooling and lubricating conditions. The other is to reduce the friction between the segments and the material being cut as well as the sawdust, improve the tool's drilling capability, and thus save energy and improve the tool's performance.

2.Product Parameter (Specification) of the Rooftop Type Segment

Dia.	Seg.Size
25-36mm	15 x 3.0 x 10mm
38-46mm	20 x 3.5 x 10mm
52-92mm	24 x 3.5 x 10mm
102-180mm	24 x 4.0 x 10mm
200-254mm	24 x 4.5 x 10mm
305-355mm	24 x 5.0 x 10mm

3.Product Feature And Application of the Rooftop Type Segment
The Rooftop Type Segment Suitable for core drilling of reinforced concrete, brick wall core drilling, air conditioning installation, drilling of pipelines, road signs, highways and other outdoor projects.

4.Product Details of the Rooftop Type Segment
BSP tools manufacture provide Rooftop Type Segment is mainly diameter from 25-355mm for construction market. The Segment height could be 10mm.

5.Product Qualification of the Rooftop Type Segment
Our Rooftop Type Segment has ISO:9001 quality certificate


6.Deliver,Shipping And Serving of the Rooftop Type Segment

The Rooftop Type Segment samples can be sent within one week and bulk order can be finished within 10 days . Shipping by air or sea all is ok. We provide customer minimum 1 year  warranty.

7.FAQ

Do you have MOQ?
OEM is 100pcs MOQ; ODM 100pcs MOQ.

What is the package?
BSP TOOLS offer color box ,white box and brown box .

What information you need to provide the price?
Better tell us the power of your drilling motor/hand held drilling machine/angle grinder and RPM request.
