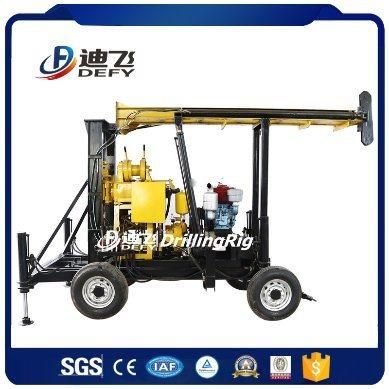

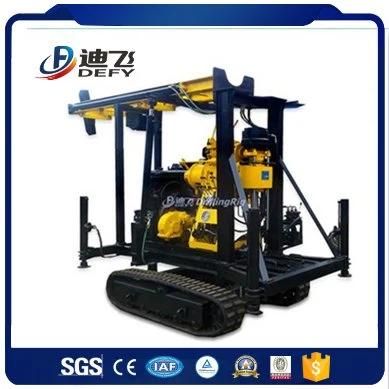

XY-200F 200m water well drilling rig, used borehole drilling machine for sale1,Main parameterDrilling depth200mMaximum borehole caliber400mmMinimum borehole caliber75mmDiameter of Drill pipe42,50,60mmDrilling angle90°~75°Weight(Not include power)810kgUnity machine dimension2750*950*1600mm2.Vertical SpindleSpindle rotating speed64,128,287,557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity1600kgfReel lifting speed17,35,75,151m/sSteel wire rope diameter12mmSteel wire rope volume26mmHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pump TypeBW-160TypeHorizontal Single Cylinder with 2 purposeMax. DischargeDiesel engine 160L/minElectrical Motor 140L/minMax. Pressure1.2MPaWork Pressure0.7MPa5. PowerDiesel engine22HPElectric15KW6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheels

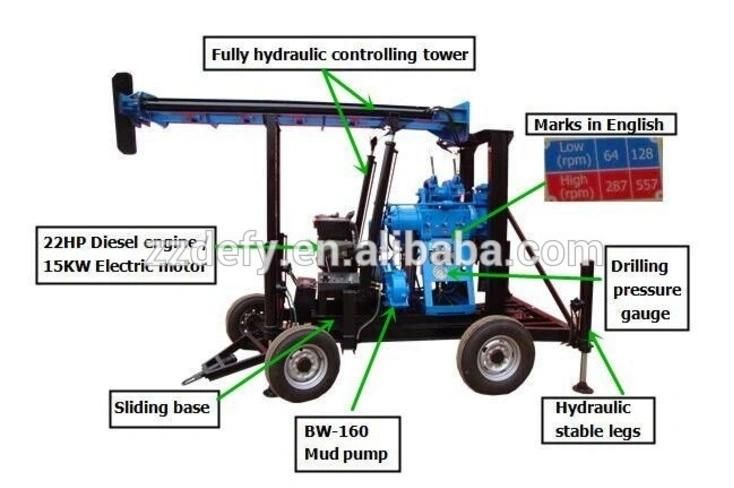

Main Features of XY-200F water well drilling rig:

(1) With integrative hydraulic drilling tower, supported by two high strength oil cylinder
(2) The chassis used trailer type, has wheels and traction, can be pulled directly by a tractor or truck
(3) Chassis have four high strength thread legs (or hydraulic legs) ,quick and convenient to install
(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators
(5) The machine is equipped with a complete set of independent BW - 160 mud pump

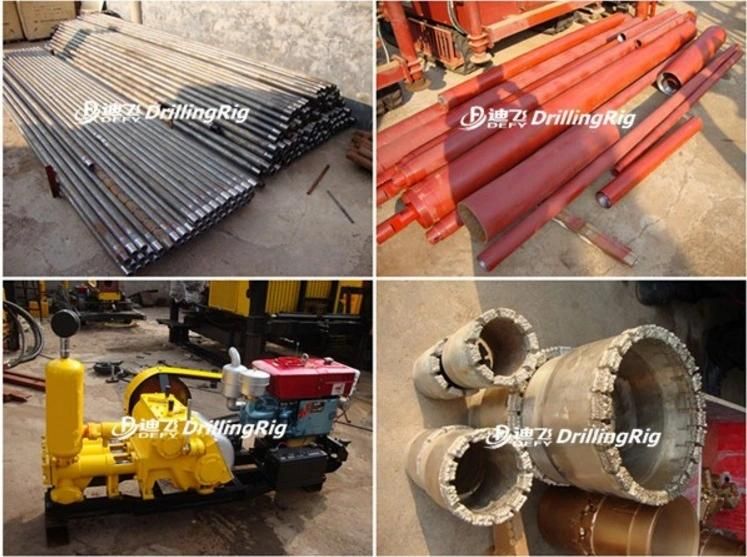

Matched accessories


Customers visit

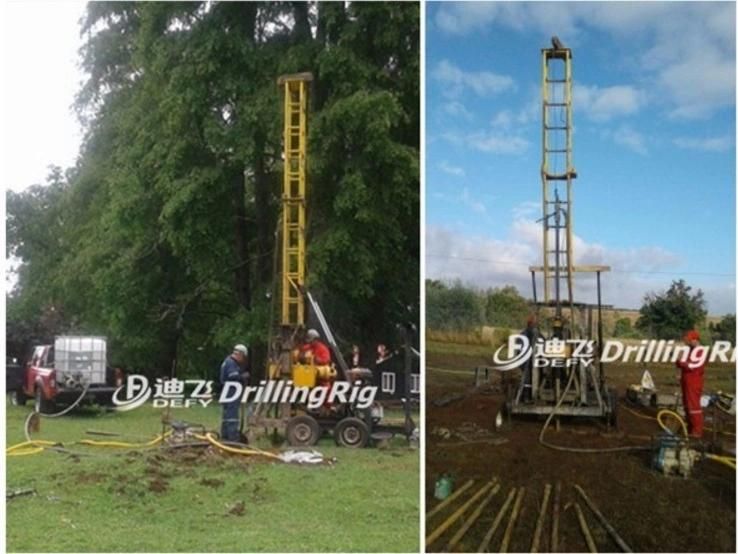

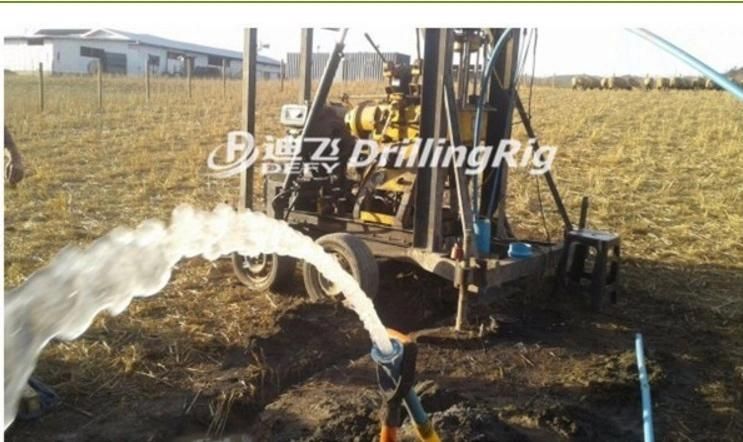

Customer feedback


Packing & DeliverySIZE:2750*950*1600MM
Weight:0.81t
packing details:Drilling Rig Main Machine in container;accessories in wooden case or as your requirement
