Basic Info.

Model NO. NOVAMTG 600B Trademark LXPLASTIC Origin China HS Code 84774000 Production Capacity 100 Set/Month

Product Description

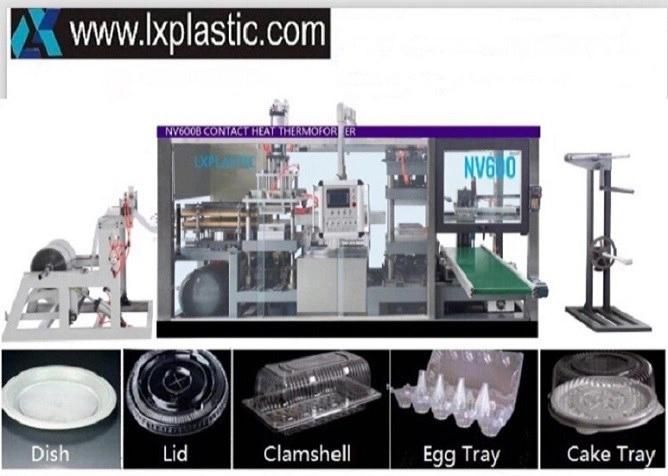

Novamtg plug type thermoformer is a full automatic contact heat type thermoforming machine with plug assist for deep draw and heat plate for lowest power consumption of heating .it makes all kinds of disposable packaging like tray,lid,container, clamshell etc. in PET PS PVC  etc. with form+trim+stack+(hole-hole-punch)

Design Feature
Plug assist for deep draw on contact heat forming process for PET PVC PS
Contact-heat minimizes power consumption for heating with only 8kw
Contact-heat results in even heating distribution on sheet for higher quality of product
Steel-rule-knife for trimming minimizing scrap rate between cuts
Servo pull index minimizing scrap rate compared to pin chain
Faster forming speed compared to normal contact heat thermoforming machine .
Faster Tool- -change lateral side of machine
Servo Index, Automatic Stacking and counting system
Accessing to all digitalized functions by pressing touch screen
Two modes of stacking system in one machine: Down-stacker /Robot Stacker
Lateral quick changing tools(moulds) from one side of machine
Hole-punch station for lateral hole is available




MODEL	Novamtg 600B
Forming Area	620mm *420mm
Depth of Draw	90mm-120mm,(under sheet) 50mm (above sheet)
Suitable material	PS PVC PET PLA
Speed (Dry run)	40 cycles/min
Material Thickness Range	0.10mm - 1 mm
Sheet Width	620mm maximum
Clamming force	400KN
Material Roll Diameter	800mm Max.
Power Supply	3-N AC380V±15V ,50Hz
Power Consumption	8Kilowatts/hr (Approximate)
Total Power	28Kw
Air Pressure	0.7Mpa
Air Consumption	≥ 0.22 m3/h
